STMicroelectronics STM32F070C6T6, 32 bit ARM Cortex M0, STM32F070C6 Microcontroller, 48 MHz, 32kB FLASH, 48-Pin LQFP

RS 제품 번호:: 192-1010
제조사 부품 번호:: STM32F070C6T6
제조업체:: STMicroelectronics

STMicroelectronics STM32F070C6T6, 32 bit ARM Cortex M0, STM32F070C6 Microcontroller, 48 MHz, 32kB FLASH, 48-Pin LQFP

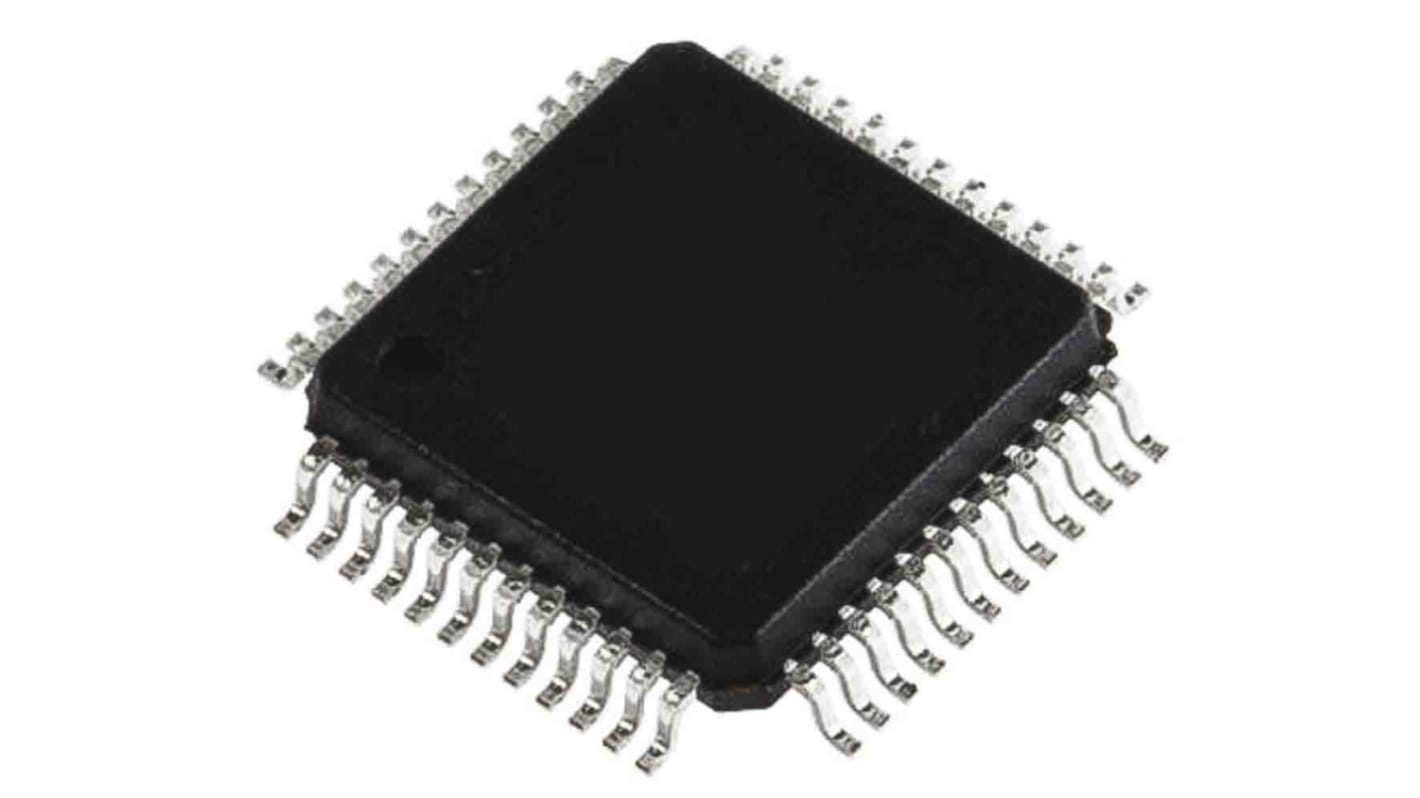

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩18,236.00

재고있음

추가로 2025년 12월 22일 부터 740 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 - 60	₩3,647.20	₩18,236.00
65 - 120	₩3,568.24	₩17,841.20
125 +	₩3,493.04	₩17,465.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 192-1010
제조사 부품 번호:: STM32F070C6T6
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32F070C6
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	48
	Device Core	ARM Cortex M0
	Data Bus Width	32bit
	Program Memory Size	32kB
	Maximum Clock Frequency	48MHz
	RAM Size	6kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	FBI
	Length	7.2mm
	Height	1.45mm
	Width	7.2 mm
	Maximum Power Dissipation Pd	364mW
	Minimum Supply Voltage	2.4V
	Automotive Standard	No
	ADCs	12 x 12 Bit
	Program Memory Type	FLASH
	Instruction Set Architecture	RISC

	모두 선택
	브랜드 STMicroelectronics
	Product Type Microcontroller
	Series STM32F070C6
	Package Type LQFP
	Mount Type Surface
	Pin Count 48
	Device Core ARM Cortex M0
	Data Bus Width 32bit
	Program Memory Size 32kB
	Maximum Clock Frequency 48MHz
	RAM Size 6kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals FBI
	Length 7.2mm
	Height 1.45mm
	Width 7.2 mm
	Maximum Power Dissipation Pd 364mW
	Minimum Supply Voltage 2.4V
	Automotive Standard No
	ADCs 12 x 12 Bit
	Program Memory Type FLASH
	Instruction Set Architecture RISC

COO (Country of Origin):: CN

Core: ARM® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz

Memories

32 to 128 Kbytes of Flash memory

6 to 16 Kbytes of SRAM with HW parity

CRC calculation unit

Reset and power management

Digital & I/Os supply: VDD= 2.4 V to 3.6 V

Analog supply: VDDA= VDDto 3.6 V

Power-on/Power down reset (POR/PDR)

Low power modes: Sleep, Stop, Standby

Clock management

4 to 32 MHz crystal oscillator

32 kHz oscillator for RTC with calibration

Internal 8 MHz RC with x6 PLL option

Internal 40 kHz RC oscillator

Up to 51 fast I/Os

All mappable on external interrupt vectors

Up to 51 I/Os with 5V tolerant capability

5-channel DMA controller

One 12-bit, 1.0 μs ADC (up to 16 channels)

Conversion range: 0 to 3.6 V

Separate analog supply: 2.4 V to 3.6 V

Calendar RTC with alarm and periodic wakeup from Stop/Standby

11 timers

One 16-bit advanced-control timer for six-channel PWM output

Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding

Independent and system watchdog timers

SysTick timer

Communication interfaces

Up to two I2C interfaces

Up to four USARTs supporting master synchronous SPI and modem control, one with auto baud rate detection

Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames

USB 2.0 full-speed interface with BCD and LPM support

Serial wire debug (SWD)
