모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Microcontroller
	Package Type	TSSOP
	Mount Type	Surface
	Pin Count	20
	Device Core	ARM Cortex M0+
	Data Bus Width	32bit
	Program Memory Size	16kB
	Maximum Clock Frequency	32MHz
	RAM Size	2kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Length	6.6mm
	Standards/Approvals	FBI
	Analogue Comparators	2
	Width	4.5 mm
	Number of Programmable I/Os	38
	Height	1.05mm
	Maximum Power Dissipation Pd	270mW
	Minimum Supply Voltage	1.65V
	Instruction Set Architecture	RISC
	Number of Timers	1
	Automotive Standard	No
	Program Memory Type	FLASH
	ADCs	9 x 12 Bit

	모두 선택
	브랜드 STMicroelectronics
	Product Type Microcontroller
	Package Type TSSOP
	Mount Type Surface
	Pin Count 20
	Device Core ARM Cortex M0+
	Data Bus Width 32bit
	Program Memory Size 16kB
	Maximum Clock Frequency 32MHz
	RAM Size 2kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Length 6.6mm
	Standards/Approvals FBI
	Analogue Comparators 2
	Width 4.5 mm
	Number of Programmable I/Os 38
	Height 1.05mm
	Maximum Power Dissipation Pd 270mW
	Minimum Supply Voltage 1.65V
	Instruction Set Architecture RISC
	Number of Timers 1
	Automotive Standard No
	Program Memory Type FLASH
	ADCs 9 x 12 Bit

Datasheet STM32L011F4P6TR

COO (Country of Origin):: PH

Ultra-low-power platform

1.65 V to 3.6 V power supply

-40 to 125 °C temperature range

0.23 μA Standby mode (2 wakeup pins)

0.34 μA Stop mode (16 wakeup lines)

0.67 μA Stop mode + RTC + 2 KB RAM retention

Down to 79 μA/MHz in Run mode

5 μs wakeup time (from Flash memory)

1 μA 12-bit ADC conversion at 10 ksps

Core: ARM® 32-bit Cortex®-M0+

Up to 32 MHz max.

0.95 DMIPS/MHz

Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds

Ultralow power POR/PDR

Programmable voltage detector (PVD)

Clock sources

0 to 32 MHz external clock

32 kHz oscillator for RTC with calibration

High speed internal 16 MHz factory-trimmed RC (+/- 1%)

Internal low-power 37 kHz RC

Internal multispeed low-power 65 kHz to 4.2 MHz RC

PLL for CPU clock

Pre-programmed bootloader

USART, SPI supported

Development support

Serial wire debug supported

Up to 38 fast I/Os (31 I/Os 5V tolerant)

Memories

Up to 16 KB Flash memory with ECC

2 KB RAM

512 B of data EEPROM with ECC

20-byte backup register

Sector protection against R/W operation

Rich Analogue peripherals

12-bit ADC 1.14 Msps up to 10 channels (down to 1.65 V)

2x ultra-low-power comparators (window mode and wake up capability, down to 1.8 V)

7-channel DMA controller, supporting ADC, SPI, I2C, USART, Timers

5x peripherals communication interface

1x USART (IrDA), 1x UART (low power)

1x SPI 16 Mbits/s

1x I2C (SMBus/PMBus)

8x timers: 1x 16-bit with up to 4 channels, 1x 16-bit with up to 2 channels, 1x 16-bit ultra-low-power timer, 1x SysTick, 1x RTC and 2x watchdogs (independent/window)

CRC calculation unit, 96-bit unique ID

수량	한팩당
625 - 1245	₩2,455.28
1250 +	₩2,402.64

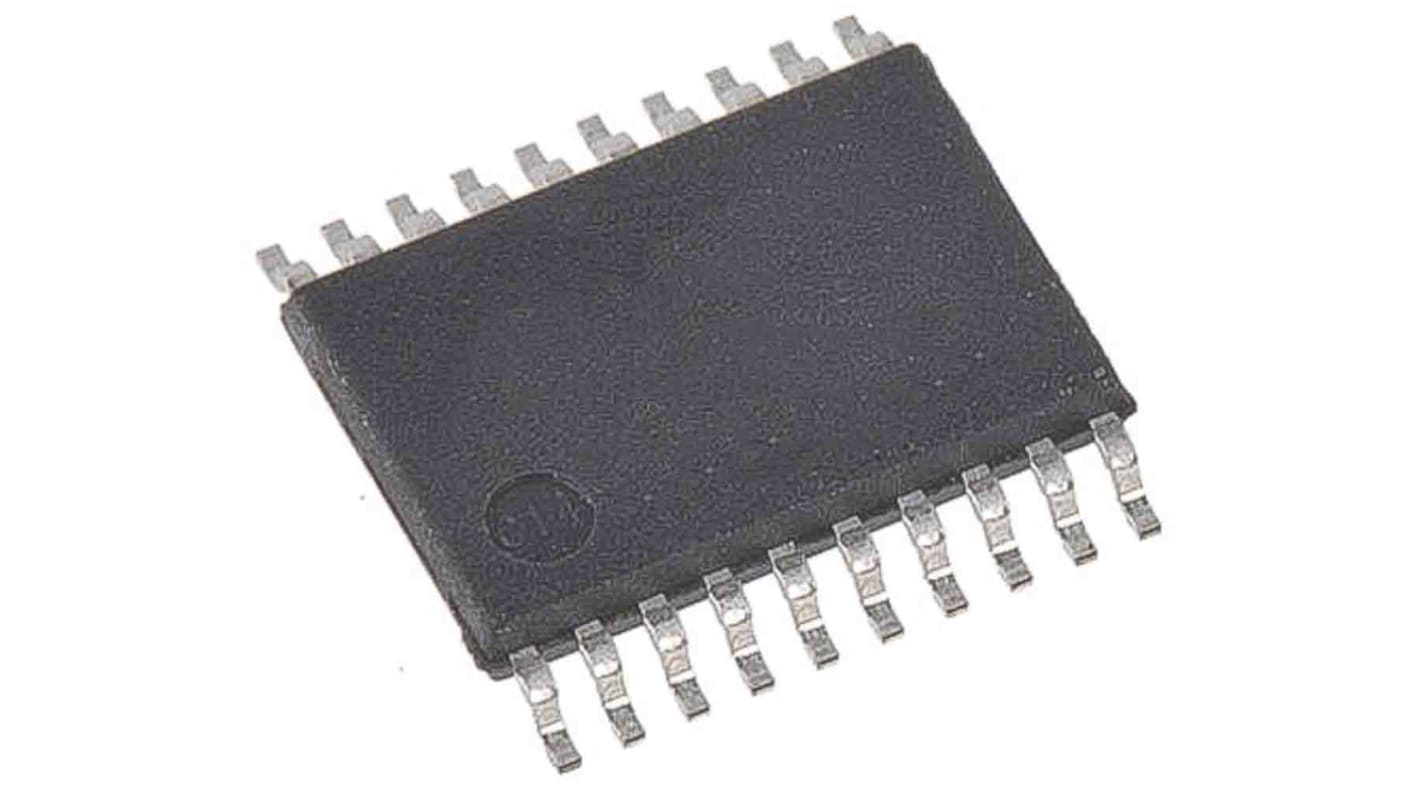

STMicroelectronics, 32 bit ARM Cortex M0+ Microcontroller, 32 MHz, 16kB FLASH, 20-Pin TSSOP
