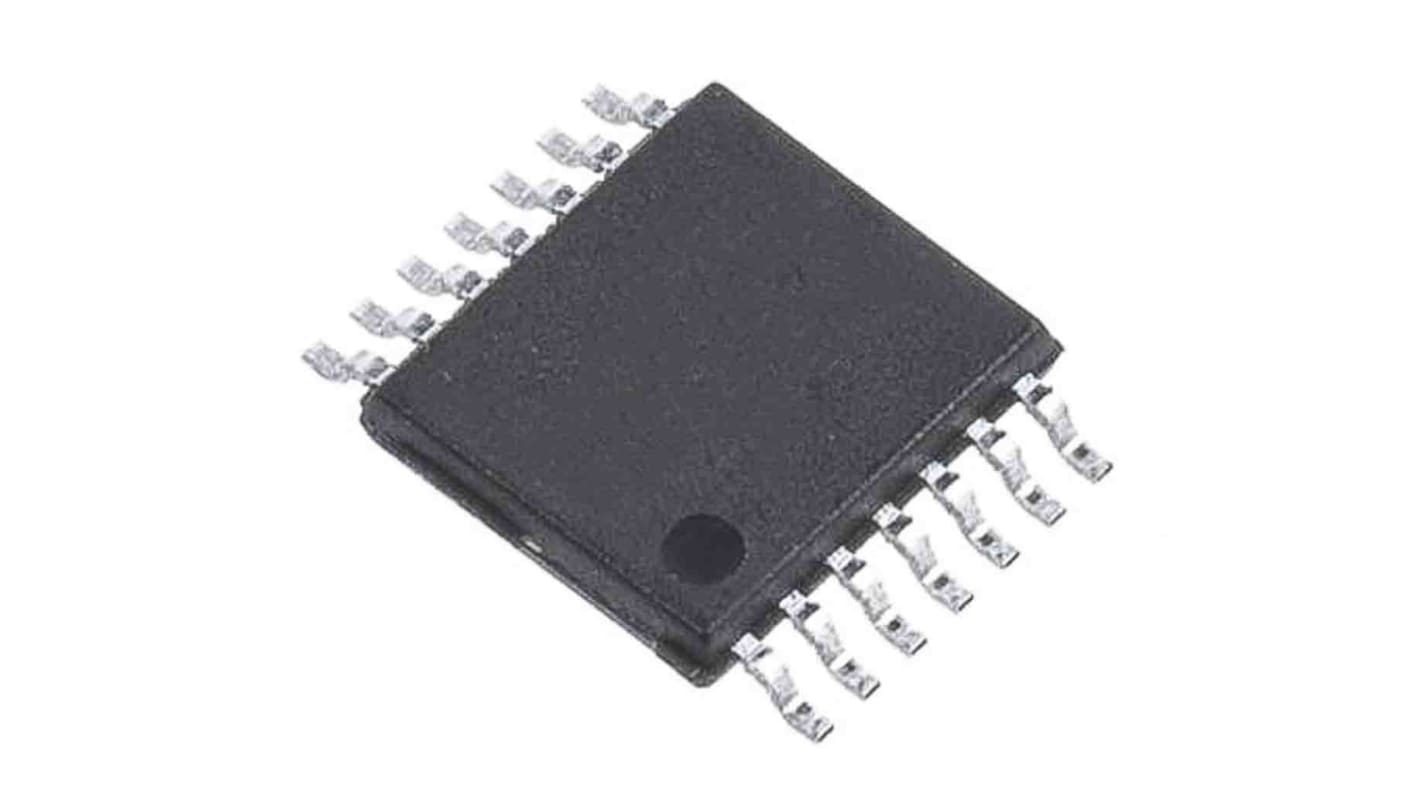

STMicroelectronics, 32bit ARM Cortex M0+, STM32L0 Microcontroller, 32MHz, 16 kB Flash, 14-Pin TSSOP
- RS 제품 번호:
- 189-3867
- 제조사 부품 번호:
- STM32L011D4P6
- 제조업체:
- STMicroelectronics
대량 구매 할인 기용 가능
Subtotal (1 tube of 96 units)*
₩229,570.56
일시적 품절
- 2026년 3월 31일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tube* |
|---|---|---|
| 96 - 96 | ₩2,391.36 | ₩229,642.00 |
| 192 - 288 | ₩2,333.08 | ₩223,904.24 |
| 384 + | ₩2,297.36 | ₩220,456.32 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 189-3867
- 제조사 부품 번호:
- STM32L011D4P6
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Family Name | STM32L0 | |
| Package Type | TSSOP | |
| Mounting Type | Surface Mount | |
| Pin Count | 14 | |
| Device Core | ARM Cortex M0+ | |
| Data Bus Width | 32bit | |
| Program Memory Size | 16 kB | |
| Maximum Frequency | 32MHz | |
| RAM Size | 2 kB | |
| Number of SPI Channels | 1 | |
| Number of UART Channels | 1 | |
| Number of USART Channels | 1 | |
| Number of I2C Channels | 1 | |
| Typical Operating Supply Voltage | 1.65 → 3.6 V | |
| Program Memory Type | Flash | |
| Maximum Operating Temperature | +85 °C | |
| Height | 1.05mm | |
| Dimensions | 5.1 x 4.5 x 1.05mm | |
| ADCs | 4 x 12 bit | |
| Length | 5.1mm | |
| Minimum Operating Temperature | -40 °C | |
| Number of ADC Units | 1 | |
| Width | 4.5mm | |
| Instruction Set Architecture | RISC | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Family Name STM32L0 | ||
Package Type TSSOP | ||
Mounting Type Surface Mount | ||
Pin Count 14 | ||
Device Core ARM Cortex M0+ | ||
Data Bus Width 32bit | ||
Program Memory Size 16 kB | ||
Maximum Frequency 32MHz | ||
RAM Size 2 kB | ||
Number of SPI Channels 1 | ||
Number of UART Channels 1 | ||
Number of USART Channels 1 | ||
Number of I2C Channels 1 | ||
Typical Operating Supply Voltage 1.65 → 3.6 V | ||
Program Memory Type Flash | ||
Maximum Operating Temperature +85 °C | ||
Height 1.05mm | ||
Dimensions 5.1 x 4.5 x 1.05mm | ||
ADCs 4 x 12 bit | ||
Length 5.1mm | ||
Minimum Operating Temperature -40 °C | ||
Number of ADC Units 1 | ||
Width 4.5mm | ||
Instruction Set Architecture RISC | ||
Ultra-low-power platform
1.65 V to 3.6 V power supply
-40 to 125 °C temperature range
0.23 μA Standby mode (2 wakeup pins)
0.34 μA Stop mode (16 wakeup lines)
0.67 μA Stop mode + RTC + 2 KB RAM retention
Down to 79 μA/MHz in Run mode
5 μs wakeup time (from Flash memory)
1 μA 12-bit ADC conversion at 10 ksps
Core: ARM® 32-bit Cortex®-M0+
Up to 32 MHz max.
0.95 DMIPS/MHz
Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds
Ultralow power POR/PDR
Programmable voltage detector (PVD)
Clock sources
0 to 32 MHz external clock
32 kHz oscillator for RTC with calibration
High speed internal 16 MHz factory-trimmed RC (+/- 1%)
Internal low-power 37 kHz RC
Internal multispeed low-power 65 kHz to 4.2 MHz RC
PLL for CPU clock
Pre-programmed bootloader
USART, SPI supported
Development support
Serial wire debug supported
Up to 38 fast I/Os (31 I/Os 5V tolerant)
Memories
Up to 16 KB Flash memory with ECC
2 KB RAM
512 B of data EEPROM with ECC
20-byte backup register
Sector protection against R/W operation
Rich Analogue peripherals
12-bit ADC 1.14 Msps up to 10 channels (down to 1.65 V)
2x ultra-low-power comparators (window mode and wake up capability, down to 1.8 V)
7-channel DMA controller, supporting ADC, SPI, I2C, USART, Timers
5x peripherals communication interface
1x USART (IrDA), 1x UART (low power)
1x SPI 16 Mbits/s
1x I2C (SMBus/PMBus)
8x timers: 1x 16-bit with up to 4 channels, 1x 16-bit with up to 2 channels, 1x 16-bit ultra-low-power timer, 1x SysTick, 1x RTC and 2x watchdogs (independent/window)
CRC calculation unit, 96-bit unique ID
1.65 V to 3.6 V power supply
-40 to 125 °C temperature range
0.23 μA Standby mode (2 wakeup pins)
0.34 μA Stop mode (16 wakeup lines)
0.67 μA Stop mode + RTC + 2 KB RAM retention
Down to 79 μA/MHz in Run mode
5 μs wakeup time (from Flash memory)
1 μA 12-bit ADC conversion at 10 ksps
Core: ARM® 32-bit Cortex®-M0+
Up to 32 MHz max.
0.95 DMIPS/MHz
Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds
Ultralow power POR/PDR
Programmable voltage detector (PVD)
Clock sources
0 to 32 MHz external clock
32 kHz oscillator for RTC with calibration
High speed internal 16 MHz factory-trimmed RC (+/- 1%)
Internal low-power 37 kHz RC
Internal multispeed low-power 65 kHz to 4.2 MHz RC
PLL for CPU clock
Pre-programmed bootloader
USART, SPI supported
Development support
Serial wire debug supported
Up to 38 fast I/Os (31 I/Os 5V tolerant)
Memories
Up to 16 KB Flash memory with ECC
2 KB RAM
512 B of data EEPROM with ECC
20-byte backup register
Sector protection against R/W operation
Rich Analogue peripherals
12-bit ADC 1.14 Msps up to 10 channels (down to 1.65 V)
2x ultra-low-power comparators (window mode and wake up capability, down to 1.8 V)
7-channel DMA controller, supporting ADC, SPI, I2C, USART, Timers
5x peripherals communication interface
1x USART (IrDA), 1x UART (low power)
1x SPI 16 Mbits/s
1x I2C (SMBus/PMBus)
8x timers: 1x 16-bit with up to 4 channels, 1x 16-bit with up to 2 channels, 1x 16-bit ultra-low-power timer, 1x SysTick, 1x RTC and 2x watchdogs (independent/window)
CRC calculation unit, 96-bit unique ID
