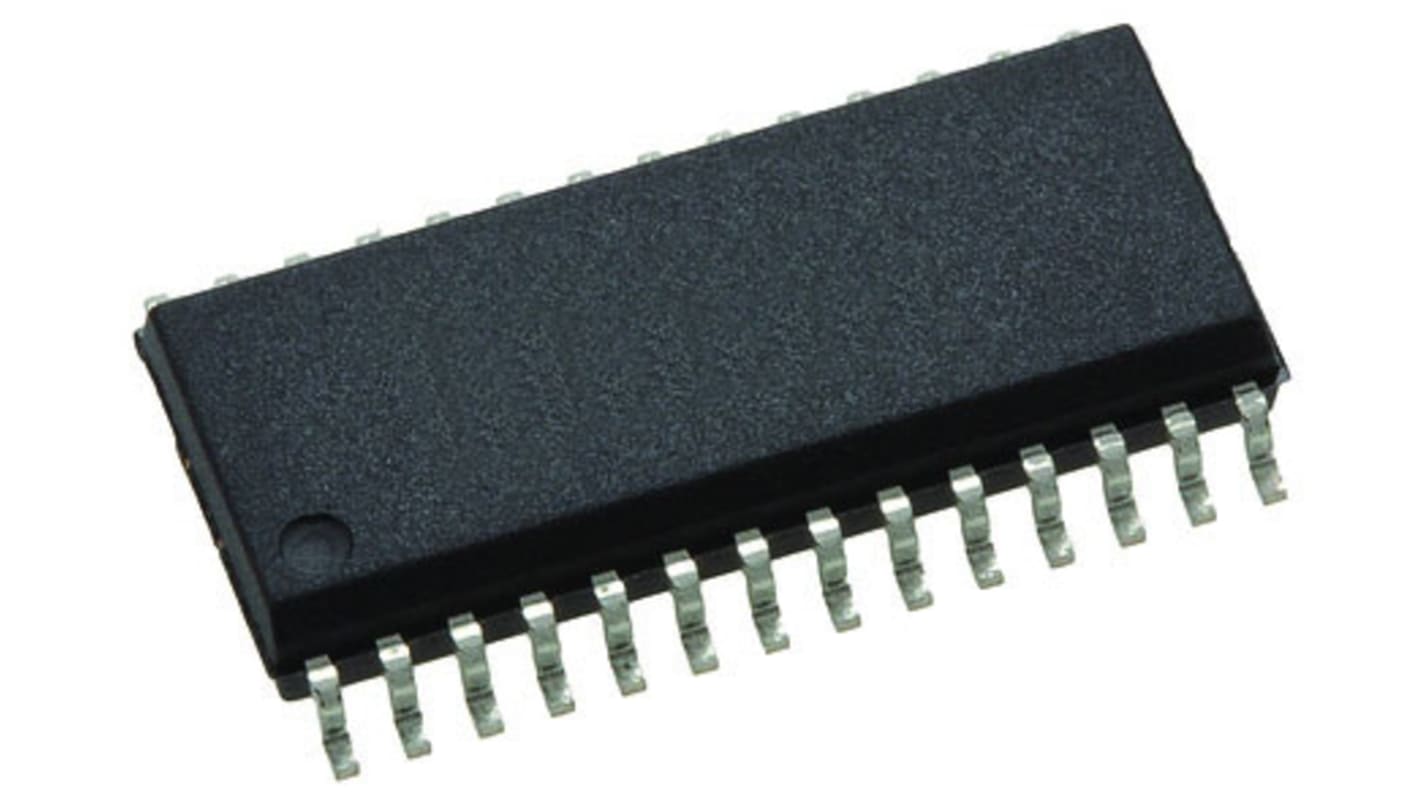

Microchip PIC16F18856-I/SO, 8 bit PIC, PIC16F18856 Microcontroller, 32 MHz, 28kB FLASH, 28-Pin SOIC

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Microcontrollers 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
111-5557
제조사 부품 번호:
PIC16F18856-I/SO
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

Microcontroller

Series

PIC16F18856

Package Type

SOIC

Mount Type

Surface

Pin Count

28

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

28kB

Interface Type

EUSART, I2C, SPI

Maximum Clock Frequency

32MHz

RAM Size

2kB

Maximum Supply Voltage

5.5V

Maximum Power Dissipation Pd

800mW

Number of Programmable I/Os

25

DACs

1 x 5 Bit

Minimum Operating Temperature

-40°C

Analogue Comparators

2

Maximum Operating Temperature

85°C

Height

2.35mm

Length

17.9mm

Standards/Approvals

RoHS

Width

7.5 mm

Minimum Supply Voltage

1.8V

Number of Timers

7

ADCs

24 x 10 Bit

Program Memory Type

FLASH

Instruction Set Architecture

RISC

Automotive Standard

No

PIC16F1885x/1887x 8-Bit Microcontrollers


The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options.

PIC16F1885x/1887xx Microcontrollers are based on Microchip’s Enhanced Mid-Range core and are the first to include multiple new Low-Power features. IDLE and DOZE modes have been added along with Peripheral Module Disable, this allows peripherals to be removed from the power rail and clock tree for zero power leakage.

Additionally these devices are Microchip’s first PIC MCUs to incorporate an Analogue-to-Digital Converter with computation (ADC2). Functions like accumulation, averaging and low-pass filter calculations are completed in the ADC hardware instead of the MCU software, freeing up the CPU to sleep or complete other tasks.

Microcontroller Features


32 MHz Max. CPU Speed

49 Instructions

16 Level Hardware Stack

Internal Oscillator

25 or 36 I/O Pins

Power-On Reset (POR)

Configurable Power-Up Timer (PWRTE)

Brown-Out Reset (BOR) and Low-Power Brown-Out Reset (LPBOR)

Windowed Watchdog Timer (WWDT)

In-Circuit Serial Programming (ICSP)

In-Circuit Debug (ICD)

Low-Voltage Programming (LVP)

Peripheral Pin Select (PPS)

Power Saving Features


Peripheral Module Disable (PMD) – Ability to disable unused peripherals for minimal power consumption

SLEEP, IDLE and DOZE Low Power Modes

Sleep mode: 50 nA @ 1.8V (typical)

Watchdog Timer: 500 nA @ 1.8V (typical)

Secondary Oscillator: 500 nA @ 32 kHz

Operating Current: 8 μA @ 32 kHz 1.8V (typical)

Peripheral Features


10-bit Analogue-to-Digital Converter with Computation (ADC2) – PIC16F18855 25 Channels; PIC16F18875 36 Channels

5-Bit Digital-to-Analogue Converter (DAC)

Two Comparators (COMP)

Voltage Reference

Four Configurable Logic Cells (CLC)

Complementary Waveform Generator (CWG):

Five Capture/Compa10re/PWM (CCP) modules

Two 10-bit PWMs

Numerically Controlled Oscillator (NCO)

Two Signal Measurement Timers (SMT)

Cyclical Redundancy Check (CRC/SCAN)

EUSART, RS-232, RS-485, LIN compatible Interfaces

Two SPI Interfaces

Two I2C, SMBus, PMBus™ Compatible Interfaces

Data Signal Modulator (DSM)

Three 8-bit Timers with Hardware Limit Timer (HLT)

Four 16-bit Timers
