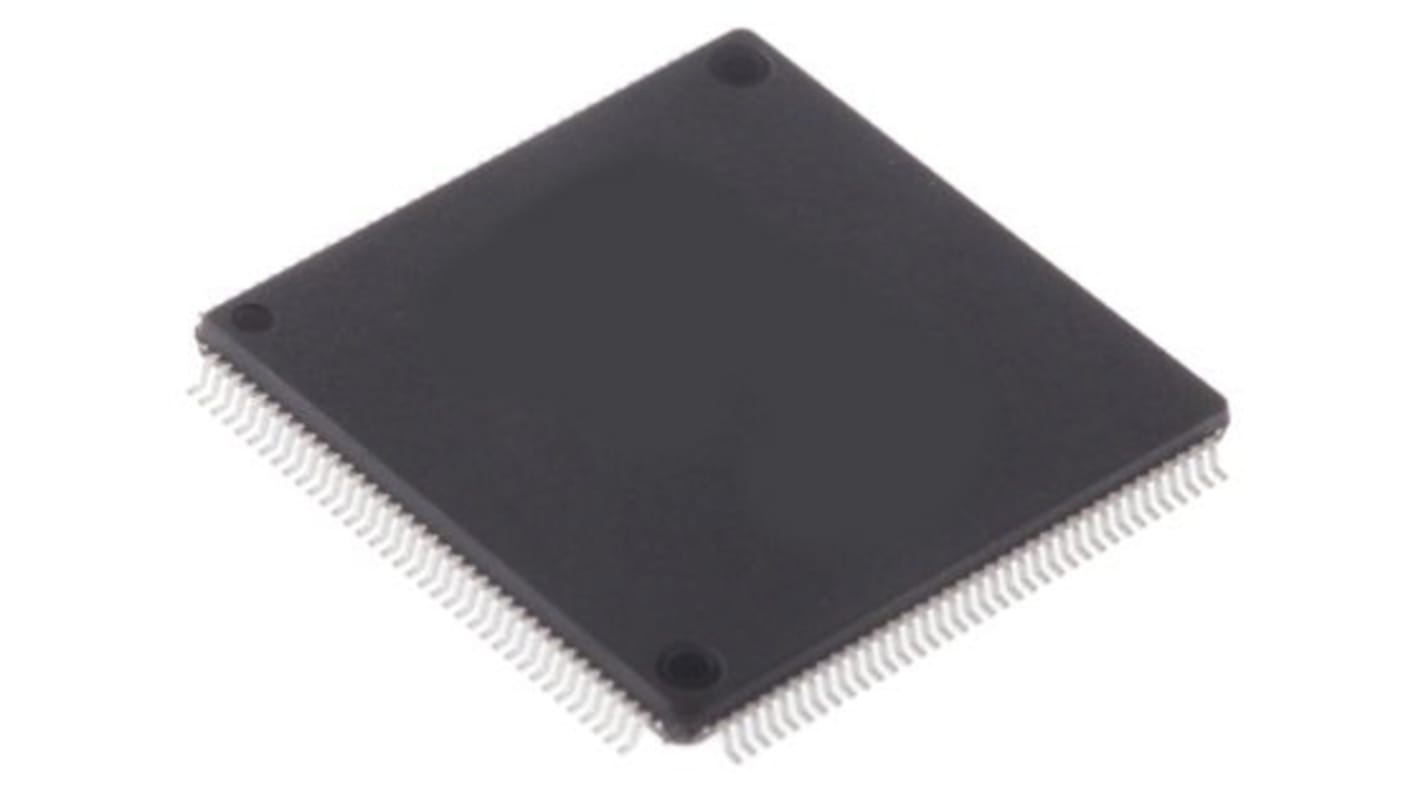

STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 168MHz, 512 kB Flash, 144-Pin LQFP

모든 Microcontrollers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tray of 60 units)*

₩1,135,106.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 600 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Tray*
60 - 60₩18,918.44₩1,135,140.24
120 - 180₩18,540.56₩1,112,456.16
240 +₩18,170.20₩1,090,178.16

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
102-3548
제조사 부품 번호:
STM32F407ZET6
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Family Name

STM32F4

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

144

Device Core

ARM Cortex M4

Data Bus Width

32bit

Program Memory Size

512 kB

Maximum Frequency

168MHz

RAM Size

192 + 4 kB

USB Channels

2

Number of PWM Units

1 x 32 bit

Number of SPI Channels

3

Number of CAN Channels

2

Number of USART Channels

4

Number of I2C Channels

3

Typical Operating Supply Voltage

3.6 V

Number of UART Channels

2

Pulse Width Modulation

1 x 32 bit

Number of PCI Channels

0

Number of Ethernet Channels

1

Number of LIN Channels

0

Height

1.45mm

Width

20.2mm

Maximum Operating Temperature

+85 °C

Number of ADC Units

3

Length

20.2mm

ADCs

24 x 12 bit

Instruction Set Architecture

DSP

Dimensions

20.2 x 20.2 x 1.45mm

Program Memory Type

Flash

Minimum Operating Temperature

-40 °C

STM32F407/417 Microcontrollers, STMicroelectronics


The STM32 F407/417 high performance ARM® Cortex™ M4 based microcontrollers integrate innovative peripherals with 168 MHz operating frequency, in addition to this it has an Ethernet MAC and Camera Interface for CMOS sensors. The STM32 F407/417 32-bit Flash MCUs feature a Floating point unit (FPU) with digital signal processing (DSP) instructions and a memory protection unit (MPU) which improves application security. ST’s STM32F417 microcontroller incorporates a crypto/hash processor providing hardware acceleration for AES 128, 192, 256, Triple DES, and hash (MD5, SHA-1)

STMicroelectronics STM32 F407/417 high performance and industry standard core architecture is supplied with enhanced peripherals and I/Os that are connected. They include ADCs, DACs, a RTC, 16-bit timers including two PWM timers for motor control, 32-bit timers. As well as a true number random generator (RNG). In addition a set of power saving modes allowing low-power application designs. They will cover a wide range of applications which include motor drive and application control, Industrial applications: Inverters, PLC, scanners, HVAC, video intercom, Home audio appliances and Medical equipment.

168MHz CPU/210DMIPS

ART Accelerator (dynamic power scaling)

12-bit DACs, 12-bit ADCs

Timers: 16-bit and 32-bit

Temperature range: –40 to +85 °C and –40 to +105 °C

Power supply 1.8 to 3.6 V

Standard and Advanced communication;

I2Cs, SPIs, I2Ss full duplex (dedicated internal audio PLL)

USARTs; UARTs

USB OTG FS; USB OTG HS, CANs

SDIO/MMC Interface

True random number generator

Flash Memory: up to 1 MB, SRAM: up to 192 KB, Back up RAM: up to 4 KB

Crypto/hash processor (STM32F417 only)

STM32F4 Series 32-Bit ARM Cortex-M4 Microcontrollers, STMicroelectronics


The ARM Cortex-M4 based STM32 F4 series of high-performance MCUs with DSP and FPU instructions is an extension of the industry-leading STM32 portfolio towards even higher performance. Up to 180 MHz operating frequency.

Up to 2x USB 2.0 OTG FS/HS

SDIO (Secure Digital Input Output)

USART, SPI, I²C

I²S (Inter-IC Sound) + Audio PLL

16 and 32 Bit Timers

Up to 3x 12-Bit ADC

Low Voltage 1.7 V to 3.6 V
