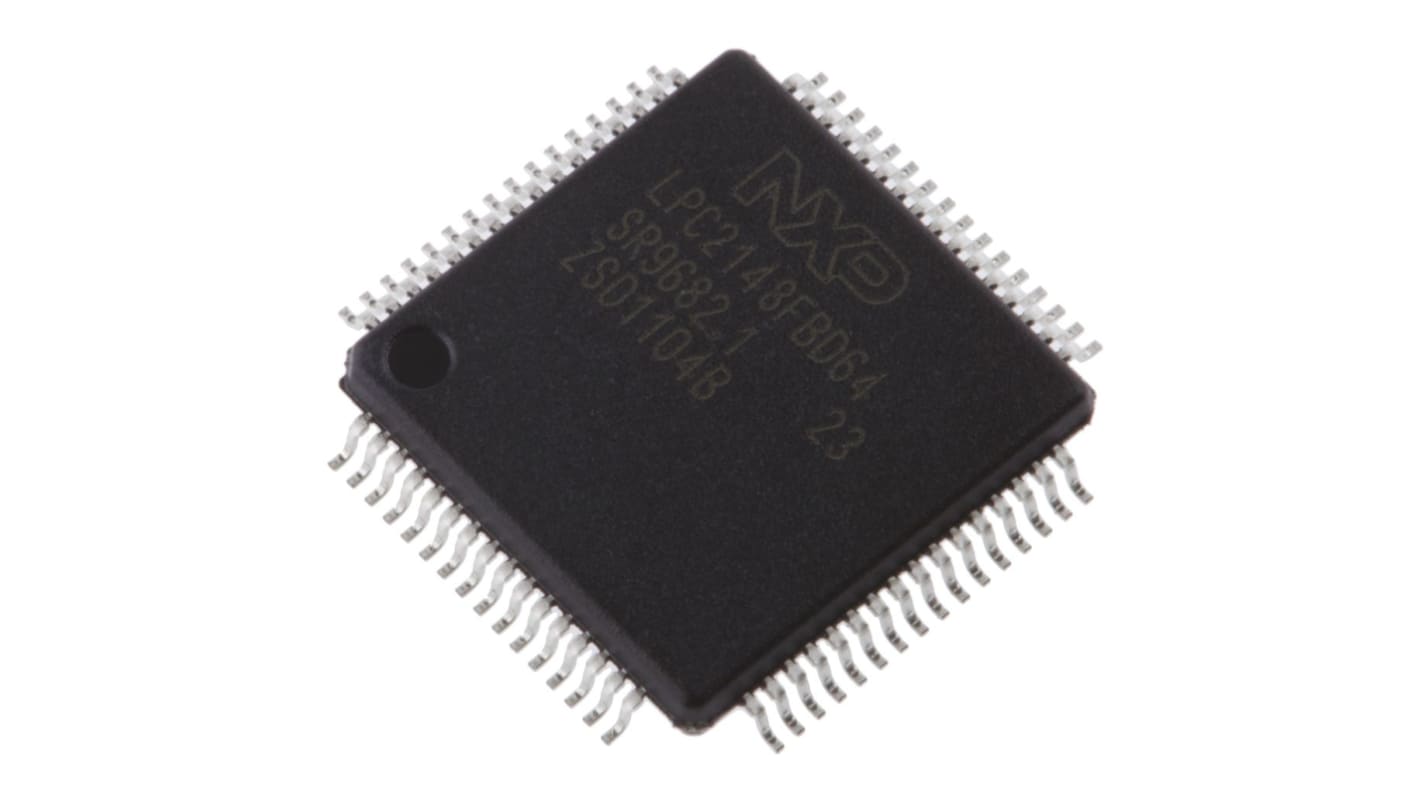

NXP LPC2148FBD64,151, 16/32bit ARM7TDMI-S Microcontroller, 60MHz, 512 kB Flash, 64-Pin LQFP
- RS 제품 번호 476-208
- 제조사 부품 번호 LPC2148FBD64,151
- 제조업체 NXP
ARM7 Family Microcontrollers, NXP
A range of NXP microcontrollers based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combine the microcontroller with 32 kB, 64 kB, 128 kB, 256 kB and 512 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at maximum clock rate.
High integration and low power consumption
wide range of serial communications interfaces and on-chip SRAM options
Alternative 16-bit Thumb-mode reduces code by more than 30 % with minimal performance penalty
32 bit timers, PWM channels and up to 47 GPIO lines
Ideally suited to industrial control and medical systems
| 속성 | 값 |
|---|---|
| Family Name | LPC21 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM7TDMI-S |
| Data Bus Width | 16/32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 60MHz |
| RAM Size | 40 kB |
| USB Channels | 1 x Device |
| Number of PWM Units | 1 |
| ADC Channels | 14 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3 3.6 V |
| Number of UART Channels | 2 |
| Number of Timers | 2 |
| Number of I2C Channels | 2 |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 2 |
| Maximum Operating Temperature | +85 °C |
| Length | 10.1mm |
| ADCs | 2(14 x 10 bit) |
| PWM Channels | 6 |
| Width | 10.1mm |
| Pulse Width Modulation | 1(6 Channel) (Motor Control) |
| Timer Resolution | 32bit |
| Height | 1.45mm |
| Timers | 2 x 32 bit |
| Dimensions | 10.1 x 10.1 x 1.45mm |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
