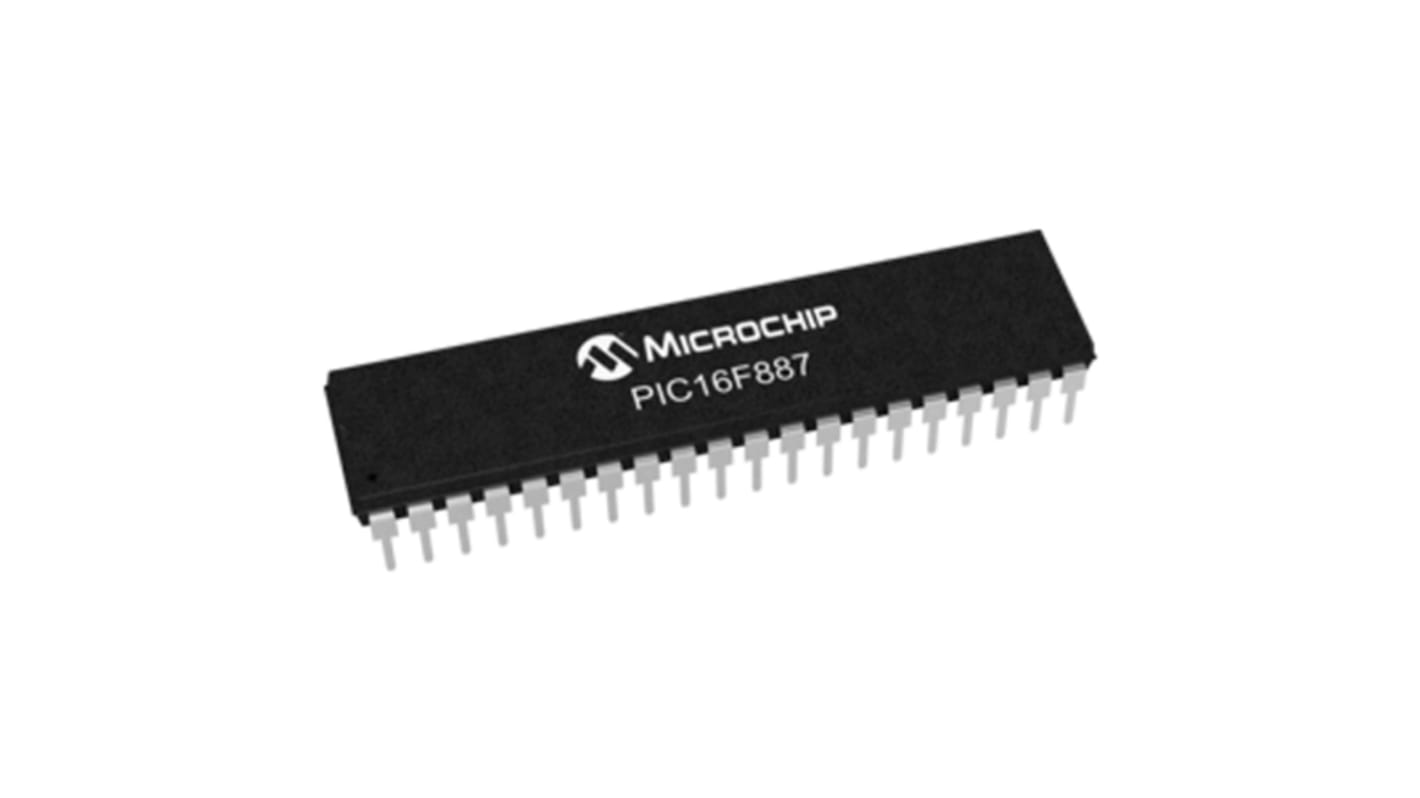

Microchip, 8bit PIC, PIC16F Microcontroller, 20MHz, 8192 x 14 words, 256 B Flash, 40-Pin PDIP
- RS 제품 번호:
- 399-410
- 제조사 부품 번호:
- PIC16F887-I/P
- 제조업체:
- Microchip
가격 개당가격(5개가 1팩안에)**
₩5,655.04
200 재고있음 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
재고 확인하기
수량 | 한팩당 | 한팩당** |
|---|---|---|
| 5 + | ₩5,655.04 | ₩28,275.20 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 399-410
- 제조사 부품 번호:
- PIC16F887-I/P
- 제조업체:
- Microchip
PIC16F882/883/884/886/887 8-Bit Flash Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F882/883/884/886/887 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory, up to 368 bytes RAM and EEPROM of up to 256 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy.
The PIC16F882/883/884/886/887 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory, up to 368 bytes RAM and EEPROM of up to 256 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy.
Microcontroller Features
20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable Output Range from 8 MHz to 31 kHz
24 I/O Pins – PIC16F882/883/886
35 I/O Pins – PIC16F884/887
Power-On Reset (POR)
Brown-Out Reset (BOR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
35 Instructions
8 Level Hardware Stack
8 MHz Internal Oscillator – Selectable Output Range from 8 MHz to 31 kHz
24 I/O Pins – PIC16F882/883/886
35 I/O Pins – PIC16F884/887
Power-On Reset (POR)
Brown-Out Reset (BOR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Peripherals
10-bit Analogue-to-Digital Converter (ADC) - PIC16F882/883/886 11 Channels, PIC16F884/887 14 Channels
Two Capture, Compare, PWM (CCP) Modules
Enhanced Capture, Compare, PWM (ECCP) Module
Two Comparators
Two 8-bit Timers
One 16-bit Timer
Master Synchronous Serial Port (MSSP) with SPI and I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
Two Capture, Compare, PWM (CCP) Modules
Enhanced Capture, Compare, PWM (ECCP) Module
Two Comparators
Two 8-bit Timers
One 16-bit Timer
Master Synchronous Serial Port (MSSP) with SPI and I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
속성 | 값 |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 8192 x 14 words, 256 B |
| Maximum Frequency | 20MHz |
| RAM Size | 368 B |
| USB Channels | 0 |
| Number of PWM Units | 2 x 10 bit |
| Number of SPI Channels | 1 |
| Number of USART Channels | 1 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 2 to 5.5 V |
| Number of CAN Channels | 0 |
| Number of UART Channels | 0 |
| Width | 0.58in |
| Number of Ethernet Channels | 0 |
| Number of LIN Channels | 0 |
| Height | 4.95mm |
| Dimensions | 2.095 x 0.58 x 0.195in |
| Number of PCI Channels | 0 |
| Instruction Set Architecture | RISC |
| Pulse Width Modulation | 1(10 bit) (CCP), 1(10 bit) (ECCP) |
| Maximum Number of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| ADCs | 14 x 10 bit |
| Length | 53.21mm |
