STMicroelectronics STM32N647X0H3Q, 32 bit ARM Cortex M55, STM32N6 Microcontroller, 1 GHz, 1kB FLASH, 264-Pin VFBGA
- RS 제품 번호:
- 330-347
- 제조사 부품 번호:
- STM32N647X0H3Q
- 제조업체:
- STMicroelectronics

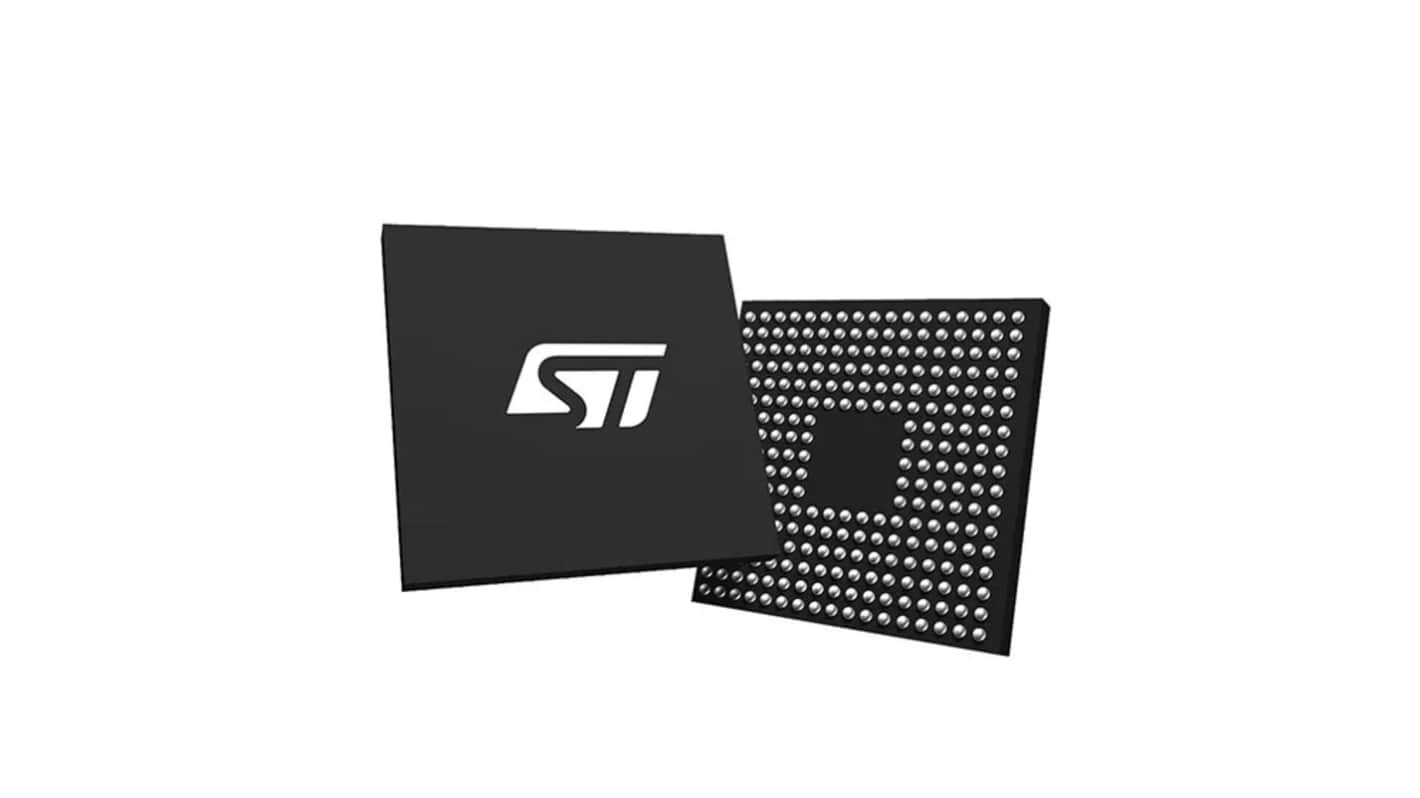

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩34,827.00
재고있음
- 115 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩34,827.00 |
| 10 - 99 | ₩31,336.50 |
| 100 + | ₩28,899.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 330-347
- 제조사 부품 번호:
- STM32N647X0H3Q
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Series | STM32N6 | |
| Product Type | Microcontroller | |
| Package Type | VFBGA | |
| Mount Type | Surface | |
| Pin Count | 264 | |
| Device Core | ARM Cortex M55 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 1kB | |
| Maximum Clock Frequency | 1GHz | |
| RAM Size | 4.2MB | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 7mm | |
| Standards/Approvals | SESIP Level 3, ECOPACK2, Arm PSA Certified | |
| Number of Programmable I/Os | 165 | |
| Minimum Supply Voltage | 1.71V | |
| Automotive Standard | No | |
| ADCs | 12 Bit, 16 Bit | |
| Program Memory Type | FLASH | |
| Instruction Set Architecture | Arm Cortex | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Series STM32N6 | ||
Product Type Microcontroller | ||
Package Type VFBGA | ||
Mount Type Surface | ||
Pin Count 264 | ||
Device Core ARM Cortex M55 | ||
Data Bus Width 32bit | ||
Program Memory Size 1kB | ||
Maximum Clock Frequency 1GHz | ||
RAM Size 4.2MB | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 7mm | ||
Standards/Approvals SESIP Level 3, ECOPACK2, Arm PSA Certified | ||
Number of Programmable I/Os 165 | ||
Minimum Supply Voltage 1.71V | ||
Automotive Standard No | ||
ADCs 12 Bit, 16 Bit | ||
Program Memory Type FLASH | ||
Instruction Set Architecture Arm Cortex | ||
- COO (Country of Origin):
- TW
The STMicroelectronics devices are based on the high-performance Arm Cortex M55, operating at a frequency up to 800 MHz The Cortex M55 core features the Arm Helium vector processing technology. On top of standard microcontroller tasks, this core enables energy-efficient digital signal processing. The Cortex M55 is equipped with a floating-point unit (FPU) that supports single- and half-precision (IEEE 754 compliant) data-processing. The Cortex M55 includes a 32-Kbyte ICACHE, a 32-Kbyte DCACHE, as well as 128-Kbyte data TCM RAM and 64-Kbyte instruction TCM RAM with ECC for critical real-time routines. These microcontrollers have Trust Zone aware support and a memory protection unit (MPU) for enhanced application security. A secure boot ROM ensures secure booting from external interfaces.
Secure firmware upgrade support with TF-M (trusted firmware-M)
Two AES coprocessors, including one with
DPA (differential power analysis) resistance
Public key accelerator (PKA) and DPA resistant
On-the-fly encryption/decryption of external memories
HASH hardware accelerator
True random number generator (RNG) and NIST SP800-90B compliant
96-bit unique ID
1.5-Kbyte OTP fuses
Active tampers
