STMicroelectronics STM32WBA63CIU7, 32 bit ARM Cortex M33, STM32WBA6xxx Microcontroller, 100 MHz, 2MB FLASH, 48-Pin
- RS 제품 번호:
- 330-280P
- 제조사 부품 번호:
- STM32WBA63CIU7
- 제조업체:
- STMicroelectronics

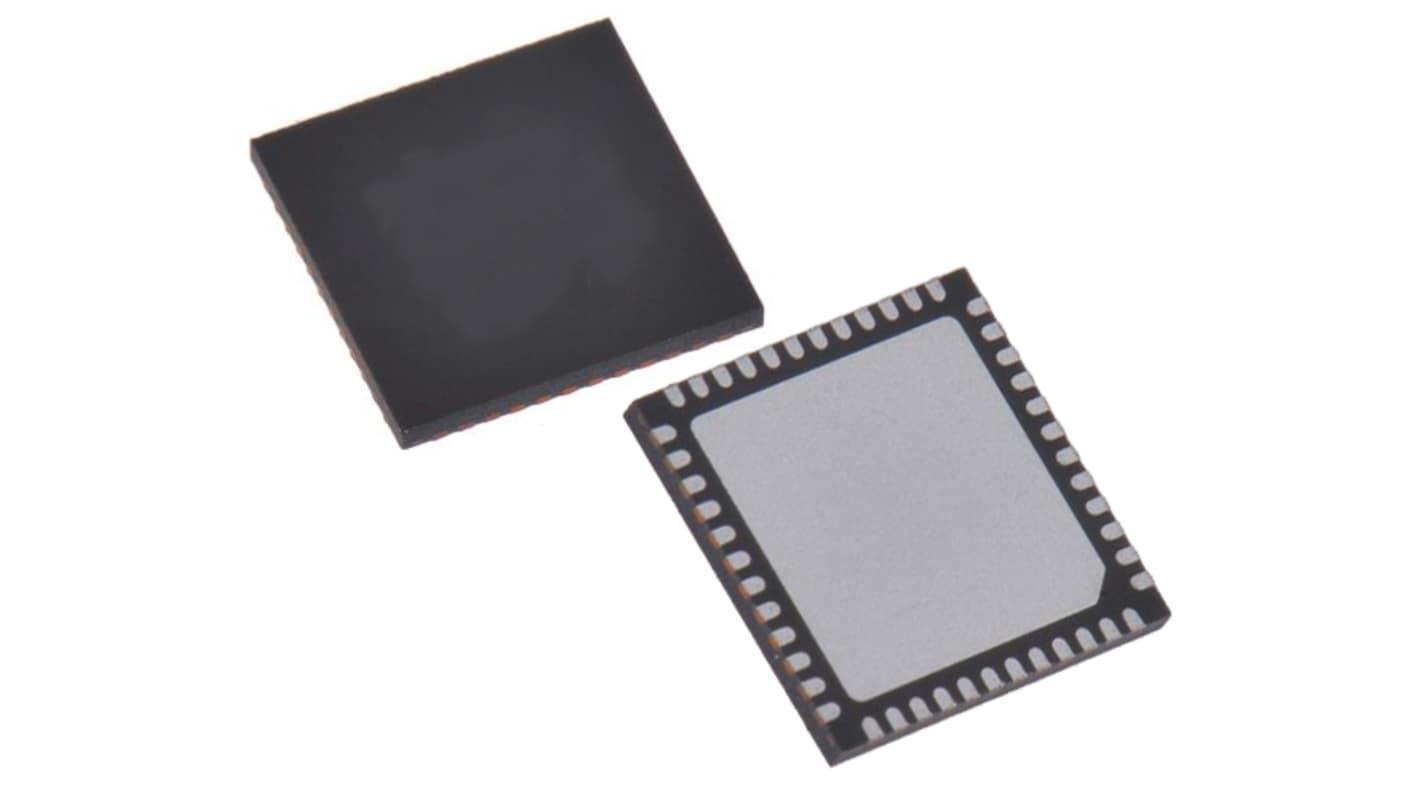

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal 10 units (supplied in a tray)*
₩98,455.60
재고있음
- 추가로 2025년 12월 22일 부터 520 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 10 - 99 | ₩9,845.56 |
| 100 + | ₩9,097.32 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 330-280P
- 제조사 부품 번호:
- STM32WBA63CIU7
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Product Type | Microcontroller | |
| Series | STM32WBA6xxx | |
| Package Type | UFQFPN | |
| Mount Type | Surface | |
| Pin Count | 48 | |
| Device Core | ARM Cortex M33 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 2MB | |
| Maximum Clock Frequency | 100MHz | |
| RAM Size | 512kB | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Length | 5mm | |
| Height | 3.46mm | |
| Width | 7 mm | |
| Number of Programmable I/Os | 86 | |
| Analogue Comparators | 2 | |
| Standards/Approvals | ARIB STD-T66, EN 300 440, ETSI EN 300 328, FCC CFR47 part 15 | |
| Minimum Supply Voltage | 1.71V | |
| Instruction Set Architecture | Arm Cortex | |
| Automotive Standard | No | |
| ADCs | 12 Bit, 16 Bit | |
| Program Memory Type | FLASH | |
| Number of Timers | 10 | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Product Type Microcontroller | ||
Series STM32WBA6xxx | ||
Package Type UFQFPN | ||
Mount Type Surface | ||
Pin Count 48 | ||
Device Core ARM Cortex M33 | ||
Data Bus Width 32bit | ||
Program Memory Size 2MB | ||
Maximum Clock Frequency 100MHz | ||
RAM Size 512kB | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Length 5mm | ||
Height 3.46mm | ||
Width 7 mm | ||
Number of Programmable I/Os 86 | ||
Analogue Comparators 2 | ||
Standards/Approvals ARIB STD-T66, EN 300 440, ETSI EN 300 328, FCC CFR47 part 15 | ||
Minimum Supply Voltage 1.71V | ||
Instruction Set Architecture Arm Cortex | ||
Automotive Standard No | ||
ADCs 12 Bit, 16 Bit | ||
Program Memory Type FLASH | ||
Number of Timers 10 | ||
- COO (Country of Origin):
- CN
The STMicroelectronics multiprotocol wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant with the Bluetooth SIG Low Energy specification 5.4 and with IEEE 802.15.4-2015. They contain a high-performance Arm Cortex M33 32-bit RISC core, and operate at a frequency of up to 100 MHz The devices integrate a 2.4 GHz RADIO supporting Bluetooth Low Energy, Matter, Thread, and ZigBee , and make possible to use proprietary protocols and concurrent operation modes. They provide support for an array of up to eight antennas, and an external power amplifier. PTA (packet traffic arbitration) interface is supported as well. The Cortex-M33 core features a single-precision floating-point unit (FPU), supporting all the Arm single-precision data-processing instructions and all the data types. This core implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) that enhances the application security.
2.4 GHz radio
RF transceiver supporting Bluetooth Low Energy 5.4 specification
Supporting Thread, Matter, and ZigBee protocols
Proprietary protocols
RX sensitivity -96 dBm (Bluetooth Low Energy at 1 Mbps)
RX sensitivity -100 dBm (IEEE 802.15.4 at 250 kbps)
Programmable output power up to +10 dBm, with 1 dB steps
Support for external PA
Packet traffic arbitration
Integrated balun to reduce BOM
