STMicroelectronics STM32H533CET6, 32 bit ARM Cortex M33, STM32H533 Microcontroller, 250 MHz, 512kB FLASH, 48-Pin LQFP

RS 제품 번호:: 152-191
제조사 부품 번호:: STM32H533CET6
제조업체:: STMicroelectronics

STMicroelectronics STM32H533CET6, 32 bit ARM Cortex M33, STM32H533 Microcontroller, 250 MHz, 512kB FLASH, 48-Pin LQFP

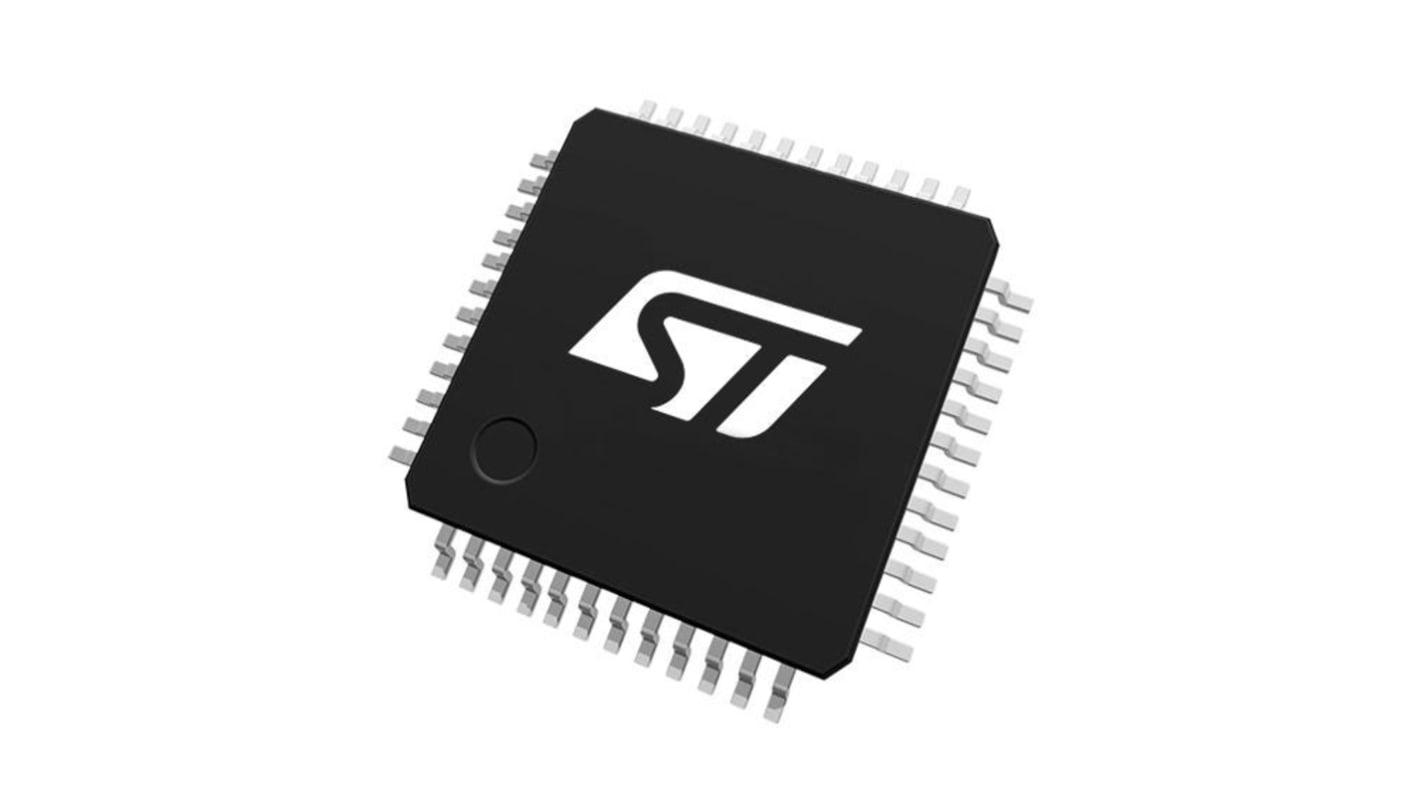

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 tray of 250 units)*

₩1,903,030.00

일시적 품절

2026년 5월 04일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tray*
250 +	₩7,612.12	₩1,903,077.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 152-191
제조사 부품 번호:: STM32H533CET6
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32H533
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	48
	Device Core	ARM Cortex M33
	Data Bus Width	32bit
	Program Memory Size	512kB
	Maximum Clock Frequency	250MHz
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Standards/Approvals	SESIP3 and PSA Level 3 Certified assurance target
	Length	5.3mm
	Width	9 mm
	DACs	2 x 12 Bit
	Number of Programmable I/Os	112
	Analogue Comparators	1
	Height	7mm
	Minimum Supply Voltage	1.7V
	Program Memory Type	FLASH
	ADCs	2 x 12 Bit
	Number of Timers	16
	Instruction Set Architecture	Arm Cortex
	Automotive Standard	No

	모두 선택
	브랜드 STMicroelectronics
	Product Type Microcontroller
	Series STM32H533
	Package Type LQFP
	Mount Type Surface
	Pin Count 48
	Device Core ARM Cortex M33
	Data Bus Width 32bit
	Program Memory Size 512kB
	Maximum Clock Frequency 250MHz
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Standards/Approvals SESIP3 and PSA Level 3 Certified assurance target
	Length 5.3mm
	Width 9 mm
	DACs 2 x 12 Bit
	Number of Programmable I/Os 112
	Analogue Comparators 1
	Height 7mm
	Minimum Supply Voltage 1.7V
	Program Memory Type FLASH
	ADCs 2 x 12 Bit
	Number of Timers 16
	Instruction Set Architecture Arm Cortex
	Automotive Standard No

Datasheet - STM32H533CET6

COO (Country of Origin):: CN

The STMicroelectronics high-performance microcontrollers of the STM32H5 series, based on the high-performance Arm Cortex-M33 32-bit RISC core. They operate at a frequency of up to 250 MHz. The Cortex-M33 core features a single-precision floating-point unit (FPU), which supports all the Arm single-precision data-processing instructions and all the data types.

Includes ST state-of-the-art patented technology

4-Kbyte data cache for external memories

Up to eight configurable SAU regions

Trust Zone aware and securable peripherals

STMicroelectronics STM32H533CET6, 32 bit ARM Cortex M33, STM32H533 Microcontroller, 250 MHz, 512kB FLASH, 48-Pin LQFP
