제조사부품번호

STMicroelectronics STM32H7R3R8V6, 32 bit ARM Cortex M7, STM32H7Rxx8 Microcontroller, 600 MHz, 64kB FLASH, 68-Pin VQFN

RS 제품 번호:: 152-076
제조사 부품 번호:: STM32H7R3R8V6
제조업체:: STMicroelectronics

STMicroelectronics STM32H7R3R8V6, 32 bit ARM Cortex M7, STM32H7Rxx8 Microcontroller, 600 MHz, 64kB FLASH, 68-Pin VQFN

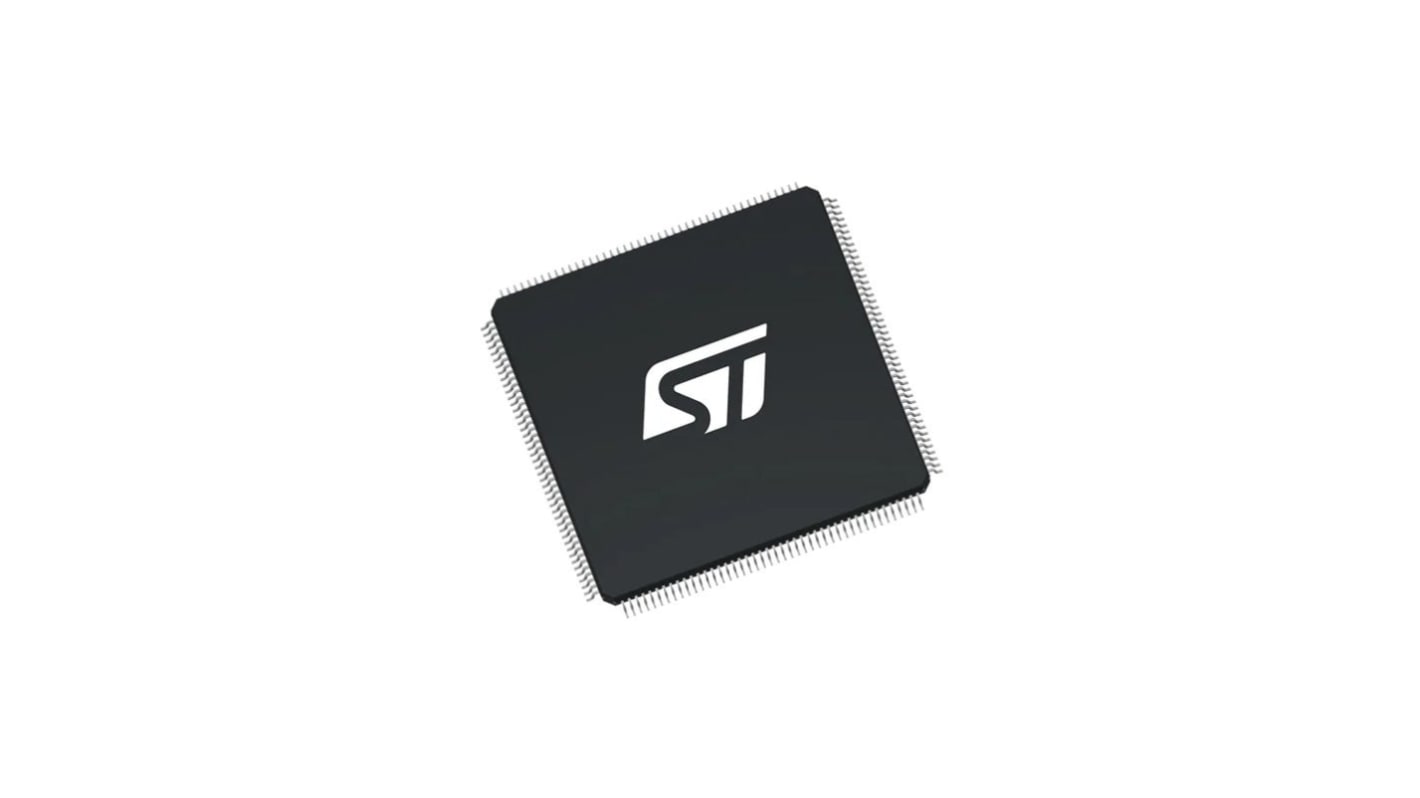

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 tray of 260 units)*

₩2,832,107.20

일시적 품절

2026년 2월 23일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tray*
260 +	₩10,892.72	₩2,831,960.56

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 152-076
제조사 부품 번호:: STM32H7R3R8V6
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32H7Rxx8
	Package Type	VQFN
	Mount Type	Surface
	Pin Count	68
	Device Core	ARM Cortex M7
	Data Bus Width	32bit
	Program Memory Size	64kB
	Maximum Clock Frequency	600MHz
	RAM Size	620kB
	Maximum Supply Voltage	3.6V
	Number of Programmable I/Os	152
	Standards/Approvals	ECOPACK2
	Minimum Supply Voltage	1.71V
	Automotive Standard	No
	ADCs	2 x 12 Bit
	Program Memory Type	FLASH
	Instruction Set Architecture	ARM
	Number of Timers	23

	모두 선택
	브랜드 STMicroelectronics
	Product Type Microcontroller
	Series STM32H7Rxx8
	Package Type VQFN
	Mount Type Surface
	Pin Count 68
	Device Core ARM Cortex M7
	Data Bus Width 32bit
	Program Memory Size 64kB
	Maximum Clock Frequency 600MHz
	RAM Size 620kB
	Maximum Supply Voltage 3.6V
	Number of Programmable I/Os 152
	Standards/Approvals ECOPACK2
	Minimum Supply Voltage 1.71V
	Automotive Standard No
	ADCs 2 x 12 Bit
	Program Memory Type FLASH
	Instruction Set Architecture ARM
	Number of Timers 23

Datasheet - STM32H7R3R8V6

COO (Country of Origin):: CN

The STMicroelectronics device is based on the high-performance Arm Cortex-M7 32-bit RISC core operating at up to 600 MHz. The Cortex -M7 core features a floating point unit (FPU)which supports Arm double-precision (IEEE 754 compliant) and single-precision data processing instructions and data types. The Cortex -M7 core includes 32 Kbytes of instruction cache and 32 Kbytes of data cache.

Includes ST state-of-the-art patented technology

2 dual-port DMAs with FIFO and linked listed support

1 Kbyte OTP (one-time programmable)

Active tampers

Hardware secure storage (dedicated secure flash area)

STMicroelectronics STM32H7R3R8V6, 32 bit ARM Cortex M7, STM32H7Rxx8 Microcontroller, 600 MHz, 64kB FLASH, 68-Pin VQFN
