Silicon Labs MCU Development Kit C8051F340DK

  • RS 제품 번호 757-0168
  • 제조사 부품 번호 C8051F340DK
  • 제조업체 Silicon Labs
참조 문서
제정법과 컴플라이언스
ROHS 준수
COO (Country of Origin): US
제품 세부 사항

C8051F340DK Development Kit

The C8051F340DK Development Kit contains everything needed to develop applications with the C8051F340, F341, F342, F343, F344, F345, F346 and F347 microcontrollers
Silicon Labs' development kits include advanced debug features enabling the user to fully develop and integrate hardware and software design
Since the MCU has built in debug capabilities, it can be installed into the end application
This development system is not encumbered with sockets, target cables or "ICE Chips"
The development kit supports the following debug features: Run, halt and single-step, Set hardware breakpoints, Inspect/Modify memory and registers, Download program memory

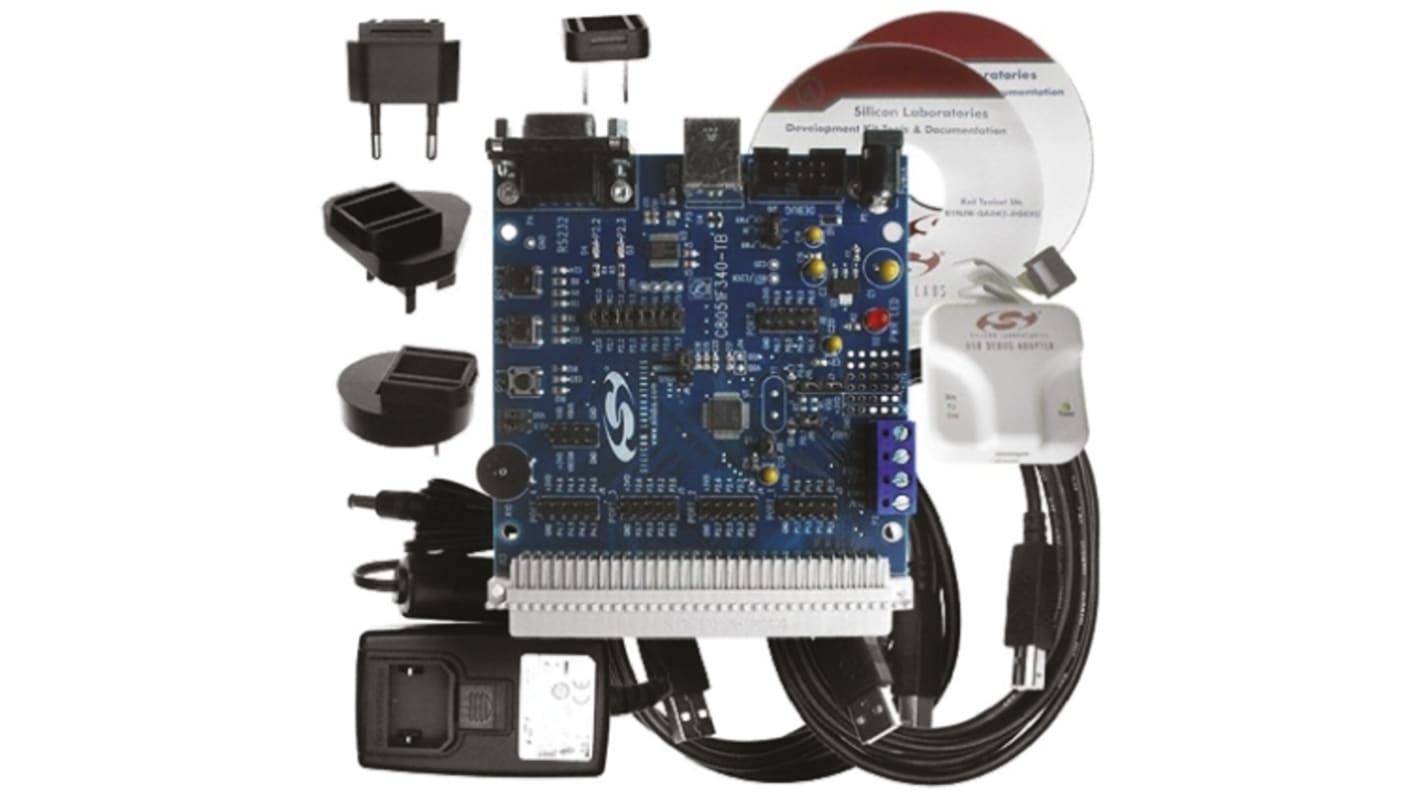

Kit Contents

IDE and Product Information CD-ROM, which includes the following:
Silicon Labs' Integrated Development Environment (IDE)
Source code examples and register definition files
Documentation
Configuration Wizard
Third Party Tools and Documentation CD
Target/Prototyping PCB (C8051F340TB)
Wall mounted universal power supply
USB debug adapter
USB cable

사양
속성
Classification Development Kit
Technology MCU
Processor Part Number C8051F340
일시 품절-다음 입고 날짜는 04/02/2021 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
단가 Each
131,306.70
(exc. VAT)
수량
한(1)개당
1 +
₩131,306.70
