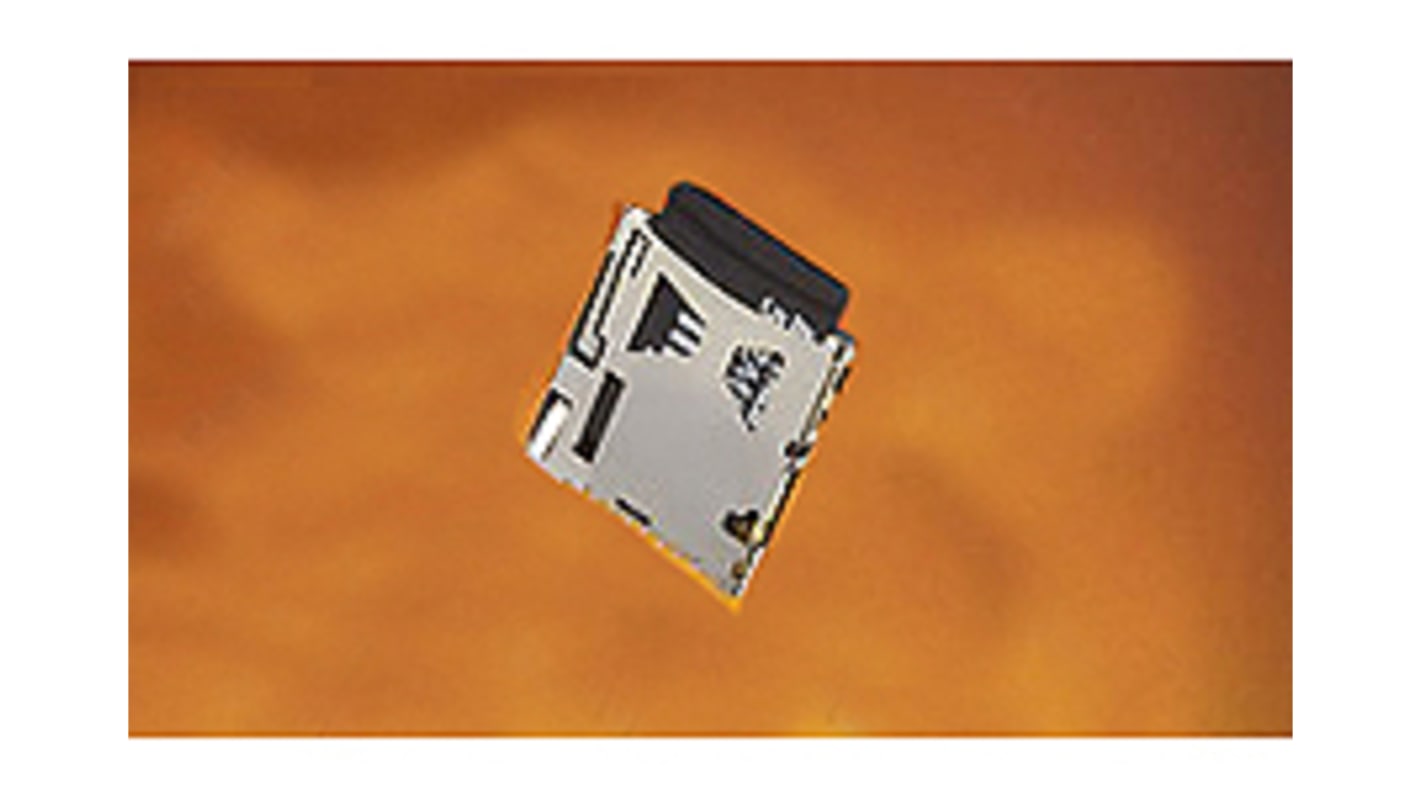

Molex, 503182 8 Way Push/Push Memory Card Connector With Solder Termination
- RS 제품 번호:
- 178-9819
- 제조사 부품 번호:
- 503182-1852
- 제조업체:
- Molex
1600 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(1600개가 1릴안에)
₩3,810.304
| 수량 | 한팩당 | Per Reel* |
| 1600 - 1600 | ₩3,810.304 | ₩6,095,658.608 |
| 3200 - 4800 | ₩3,732.684 | ₩5,973,673.68 |
| 6400 + | ₩3,658.513 | ₩5,854,172.608 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 178-9819
- 제조사 부품 번호:
- 503182-1852
- 제조업체:
- Molex
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- VN
제품 세부 사항
1.10mm Pitch microSD Memory Card Connector, Normal Mount Surface Mount, Push-Push Type, 1.45mm Height, Anti-card fly-out
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Gender | Male |
| Insertion/Removal Method | Push/Push |
| Number of Contacts | 8 |
| Pitch | 1.1mm |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Tin |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Length | 14.14mm |
| Width | 14.95mm |
| Depth | 1.45mm |
| Dimensions | 14.14 x 14.95 x 1.45mm |
| Minimum Operating Temperature | -25°C |
| Series Number | 503182 |
| Maximum Operating Temperature | +85°C |
