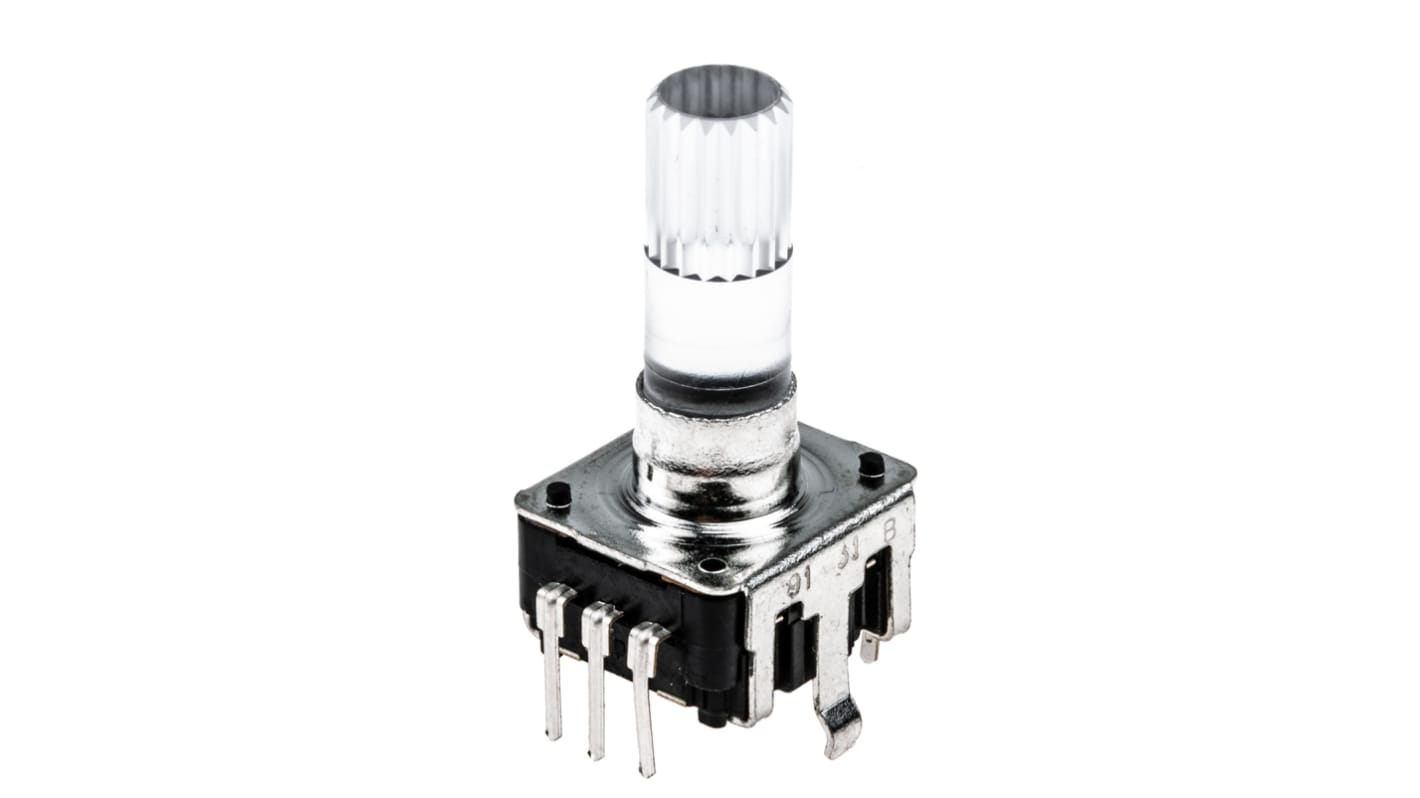

TE Connectivity 24 Pulse Incremental Mechanical Rotary Encoder with a 6.8 mm Knurl Shaft (Not Indexed), Through Hole
- RS 재고 번호:
- 663-3230
- 제조 부품 번호:
- DPL12SV2424A25K3
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩11,712.40
현재 액세스할 수 없는 재고 정보
단위당 | 한팩당 |
|---|---|
| 1 - 249 | ₩11,712.40 |
| 250 - 499 | ₩11,468.00 |
| 500 + | ₩11,223.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 663-3230
- 제조 부품 번호:
- DPL12SV2424A25K3
- 제조업체:
- TE Connectivity
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Pulses Per Revolution | 24 | |
| Shaft Style | Knurl | |
| Shaft Diameter | 6.8 mm | |
| Encoder Reading | Incremental | |
| Encoder Signal | Digital Square Wave | |
| Shaft Length | 25mm | |
| Mounting Type | Through Hole | |
| Index Output | Not Indexed | |
| Maximum Operating Speed | 60rpm | |
| Mounting Hole Diameter | 1 mm, 1.1 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Pulses Per Revolution 24 | ||
Shaft Style Knurl | ||
Shaft Diameter 6.8 mm | ||
Encoder Reading Incremental | ||
Encoder Signal Digital Square Wave | ||
Shaft Length 25mm | ||
Mounting Type Through Hole | ||
Index Output Not Indexed | ||
Maximum Operating Speed 60rpm | ||
Mounting Hole Diameter 1 mm, 1.1 mm | ||
- COO (Country of Origin):
- TW
DPL12 12mm illuminated Encoder (Vertical)
Snap-in PCB mountable
Knurled or flatted plastic shaft types
Contacts 100 mΩ max rated at 0.5mA 5Vdc
Optional push switch rated at 10mA 5Vdc
Single LED for non switch types and dual LED for switched types
Insulation resistance 250 Vac 100MΩ min.
Incremental Type
Push on switch option
Various shaft Lengths
LED colour options
Detent options
Knurled or flatted plastic shaft types
Contacts 100 mΩ max rated at 0.5mA 5Vdc
Optional push switch rated at 10mA 5Vdc
Single LED for non switch types and dual LED for switched types
Insulation resistance 250 Vac 100MΩ min.
Incremental Type
Push on switch option
Various shaft Lengths
LED colour options
Detent options
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
