Bourns 15 ppr Pulse Quadrature Mechanical Rotary Encoder with a 2 mm (Not Indexed), PCB
- RS Stock No.:
- 269-2406
- Distrelec Article No.:
- 302-47-402
- Mfr. Part No.:
- PEC11D-4120F-H0015
- Brand:
- Bourns

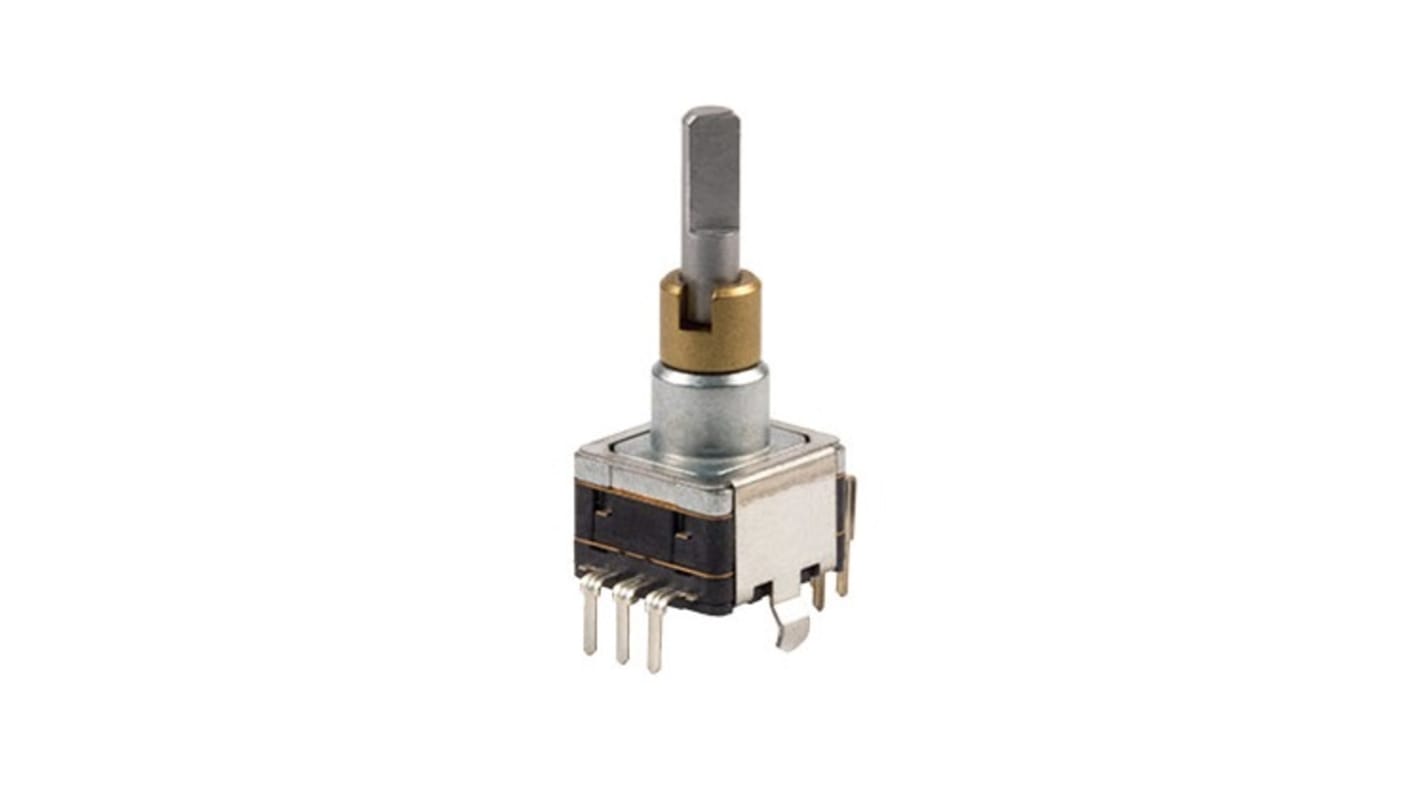

Image representative of range
Bulk discount available
Subtotal (1 unit)*
₩8,836.00
재고있음
- 추가로 2025년 12월 15일 부터 563 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Units | Per unit |
|---|---|
| 1 - 9 | ₩8,836.00 |
| 10 - 19 | ₩7,087.60 |
| 20 - 49 | ₩6,523.60 |
| 50 + | ₩6,392.00 |
*price indicative
- RS Stock No.:
- 269-2406
- Distrelec Article No.:
- 302-47-402
- Mfr. Part No.:
- PEC11D-4120F-H0015
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 브랜드 | Bourns | |
| Pulses Per Revolution | 15ppr | |
| Product Type | Mechanical Rotary Encoder | |
| Shaft Diameter | 2mm | |
| Encoder Reading | Quadrature | |
| Encoder Signal | 2 Bit Quadrature | |
| Mount Type | PCB | |
| Shaft Length | 20mm | |
| Index Output | Not Indexed | |
| Maximum Operating Speed | 60rpm | |
| Standards/Approvals | Mar 31, RoHS 2015/863, 2015 and Annex | |
| Termination Style | Printed Circuit Board Terminal | |
| Series | PEC11D | |
| Current Rating | 10 mA | |
| Select all | ||
|---|---|---|
브랜드 Bourns | ||
Pulses Per Revolution 15ppr | ||
Product Type Mechanical Rotary Encoder | ||
Shaft Diameter 2mm | ||
Encoder Reading Quadrature | ||
Encoder Signal 2 Bit Quadrature | ||
Mount Type PCB | ||
Shaft Length 20mm | ||
Index Output Not Indexed | ||
Maximum Operating Speed 60rpm | ||
Standards/Approvals Mar 31, RoHS 2015/863, 2015 and Annex | ||
Termination Style Printed Circuit Board Terminal | ||
Series PEC11D | ||
Current Rating 10 mA | ||
The Bourns Rotary encoders are Ideal for use as digital panel controls or position sensing devices in a wide range of applications where digital circuitry is used. These devices are available in contacting and optical types and in various resolutions. This encoder has 2 bit quadrature code output and offers 15000 cycles minimum rotational life.
RoHS compliant
Switch stroke options
Dual concentric shaft
Two push switch options
Two encoders in a single package
