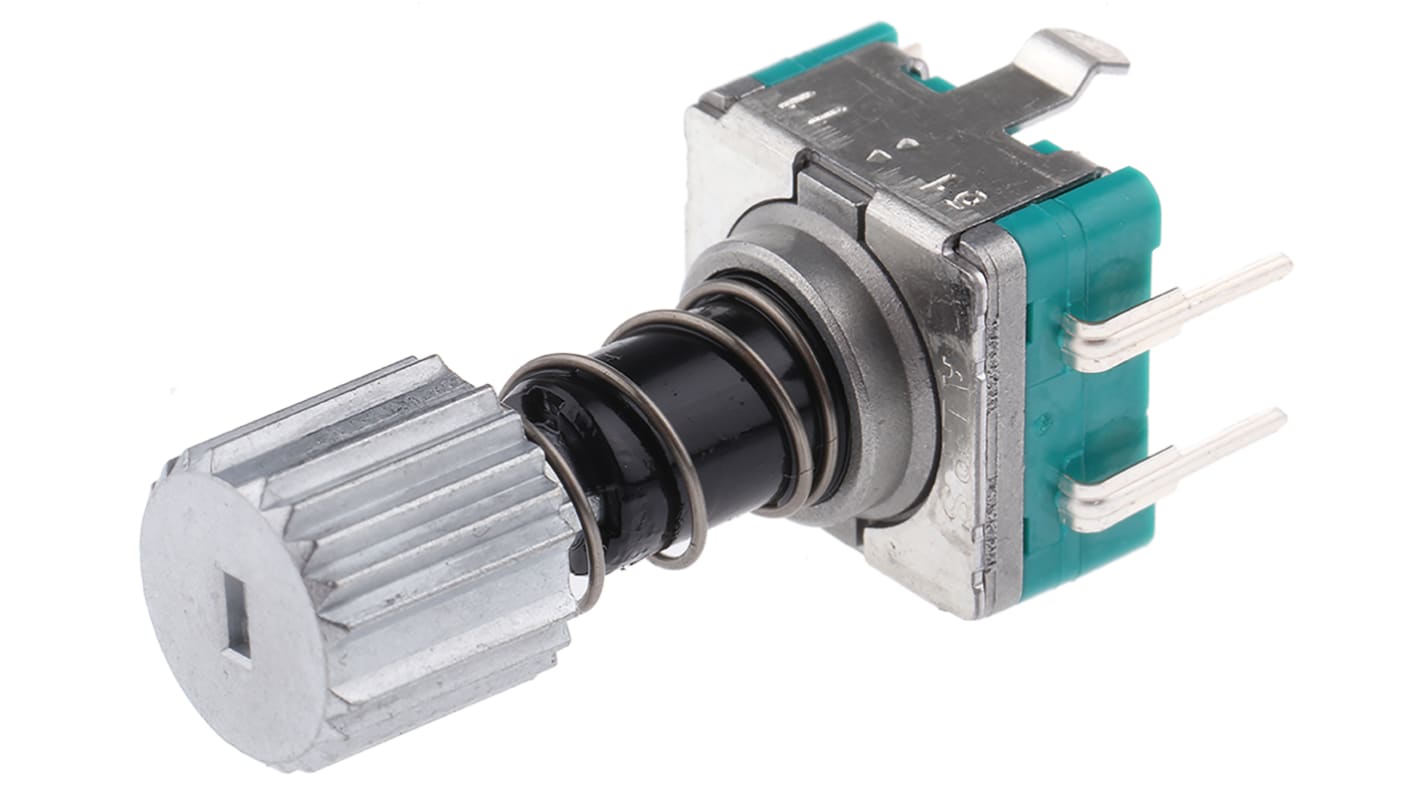

Alps Alpine 15 Pulse Incremental Mechanical Rotary Encoder with a 9 mm Knurl Shaft (Not Indexed), Through Hole
- RS 제품 번호:
- 172-7707
- 제조사 부품 번호:
- EC11E152U402
- 제조업체:
- Alps Alpine
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tray of 80 units)*
₩907,513.60
마지막 RS 재고
- 최종적인 80 개 unit(s)이 배송 준비 됨
수량 | 한팩당 | Per Tray* |
|---|---|---|
| 80 - 320 | ₩11,343.92 | ₩907,573.76 |
| 400 + | ₩11,118.32 | ₩889,435.52 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 172-7707
- 제조사 부품 번호:
- EC11E152U402
- 제조업체:
- Alps Alpine
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alps Alpine | |
| Pulses Per Revolution | 15 | |
| Shaft Style | Knurl | |
| Shaft Diameter | 9 mm | |
| Encoder Reading | Incremental | |
| Encoder Signal | Digital Square Wave | |
| Mounting Type | Through Hole | |
| Shaft Length | 26.4mm | |
| Index Output | Not Indexed | |
| Mounting Hole Diameter | 1 mm, 2.6 x 1.5 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alps Alpine | ||
Pulses Per Revolution 15 | ||
Shaft Style Knurl | ||
Shaft Diameter 9 mm | ||
Encoder Reading Incremental | ||
Encoder Signal Digital Square Wave | ||
Mounting Type Through Hole | ||
Shaft Length 26.4mm | ||
Index Output Not Indexed | ||
Mounting Hole Diameter 1 mm, 2.6 x 1.5 mm | ||
- COO (Country of Origin):
- JP
11mm Metal Shaft Encoder - EC11 Series
Brought to you by Alps, the EC11 Series rotary encoders are compact and highly reliable. With a robust metal shaft, the EC11 Series of 11mm rotary encoders have an operating life that ranges from competitive to excellent.
Features and Benefits:
• Typical rating 5V dc, 10mA
• EC11E: have an Operating Life of 15,000 Cycles
• EC11EH: have an Operating Life of 30,000 cycles
• EC11K: have an Operating Life of 100,000 cycles 500,000 cycles 1,000,000 cycles
• Operating Temperature ｰ40 to +85℃
