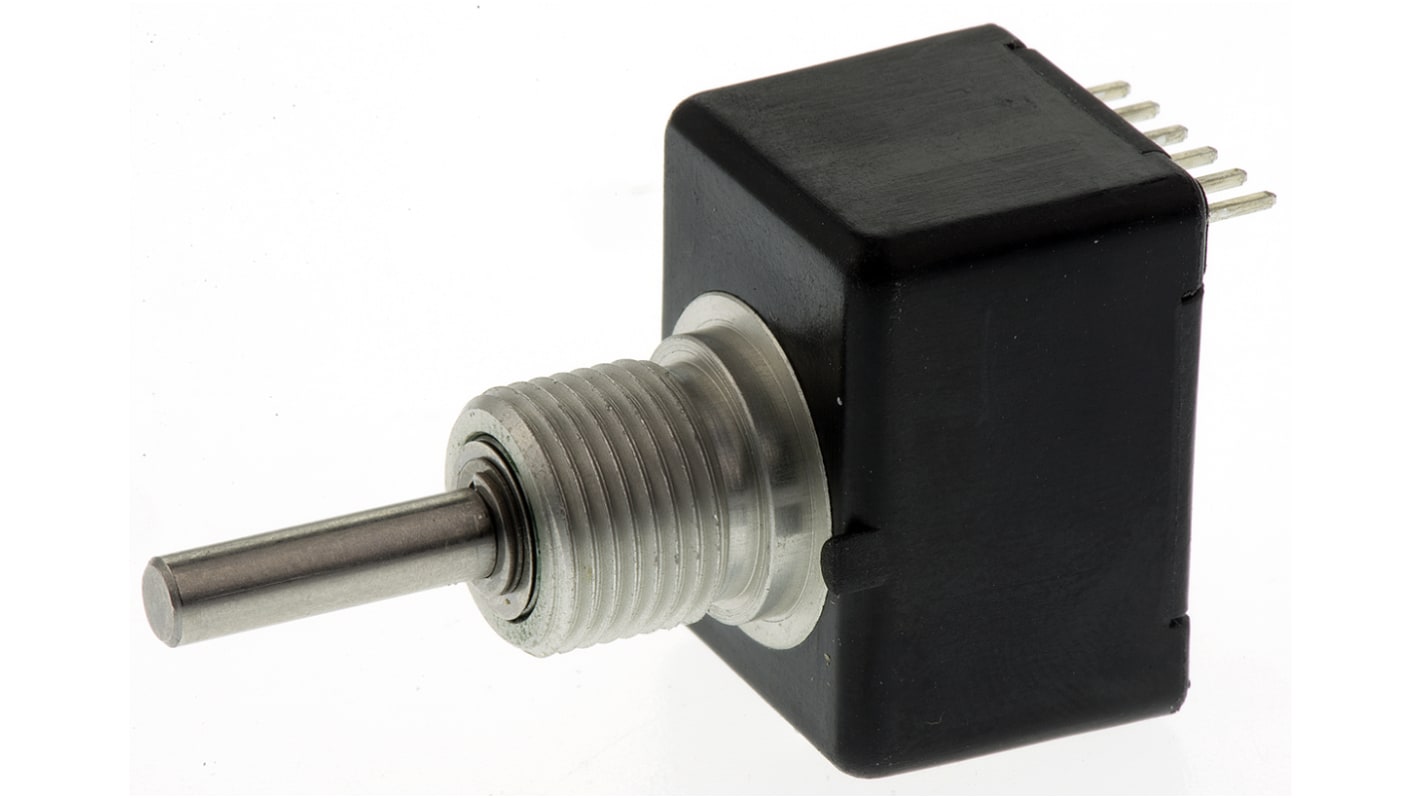

Bourns 1024 (Position) Pulse Absolute Mechanical Rotary Encoder with a 3.17 mm Plain Shaft (Not Indexed), Through Hole
- RS 제품 번호:
- 167-5430
- 제조사 부품 번호:
- EMS22A50-D28-LT6
- 제조업체:
- Bourns
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 Box of 42 units)*
₩3,563,227.92
일시적 품절
- 2026년 2월 24일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 42 - 168 | ₩84,838.76 | ₩3,563,203.48 |
| 210 + | ₩83,141.12 | ₩3,491,927.04 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 167-5430
- 제조사 부품 번호:
- EMS22A50-D28-LT6
- 제조업체:
- Bourns
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bourns | |
| Pulses Per Revolution | 1024 (Position) | |
| Shaft Style | Plain | |
| Shaft Diameter | 3.17 mm | |
| Encoder Reading | Absolute | |
| Encoder Signal | Digital Square Wave | |
| Shaft Length | 22.23mm | |
| Mounting Type | Through Hole | |
| Index Output | Not Indexed | |
| Maximum Operating Speed | 10000rpm | |
| Mounting Hole Diameter | 10.67mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bourns | ||
Pulses Per Revolution 1024 (Position) | ||
Shaft Style Plain | ||
Shaft Diameter 3.17 mm | ||
Encoder Reading Absolute | ||
Encoder Signal Digital Square Wave | ||
Shaft Length 22.23mm | ||
Mounting Type Through Hole | ||
Index Output Not Indexed | ||
Maximum Operating Speed 10000rpm | ||
Mounting Hole Diameter 10.67mm | ||
- COO (Country of Origin):
- MX
Non-Contacting Analogue Rotary Position Sensor- AMS22A Series
AMS22A Series Non-Contacting Analogue Rotary Position Sensor has a Resolution: 1024 positions
3.3 and 5 VDC voltage supply option
1 000MΩ Insulation Resistance (500 VDC)
Bushing or servo mount
Non-contacting magnetic technology
Small size and long life with a sealed option
CMOS and TTL compatible
High operating speed and highly repeatable
Applications include Material handling equipment, Brushless DC motor commutation, Robotics, Automotive, Industrial automation, Petroleum refinery, Medical, Office equipment, Audio and broadcast equipment
3.3 and 5 VDC voltage supply option
1 000MΩ Insulation Resistance (500 VDC)
Bushing or servo mount
Non-contacting magnetic technology
Small size and long life with a sealed option
CMOS and TTL compatible
High operating speed and highly repeatable
Applications include Material handling equipment, Brushless DC motor commutation, Robotics, Automotive, Industrial automation, Petroleum refinery, Medical, Office equipment, Audio and broadcast equipment
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
