Druck UPS-III, 24mA Loop Calibrator
- RS 제품 번호:
- 434-7000
- 제조사 부품 번호:
- UPS-III
- 제조업체:
- Druck
단종
- RS 제품 번호:
- 434-7000
- 제조사 부품 번호:
- UPS-III
- 제조업체:
- Druck
해당 안됨
- COO (Country of Origin):
- GB

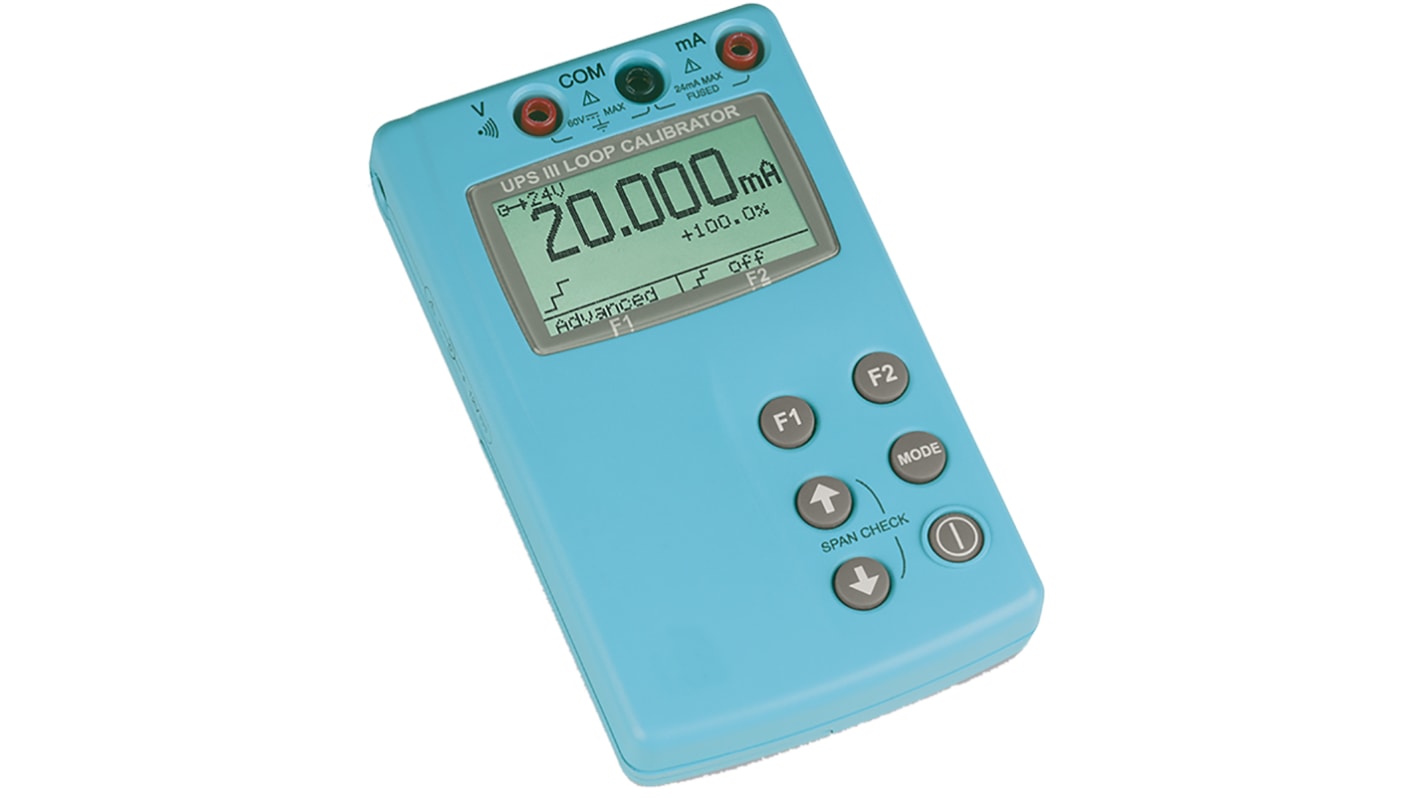

Druck Loop Calibrator - UPS III
Small but mighty, Druck's UPS III loop calibrator offers maximum results with a compact design. The calibrator forms part of an essential toolbox that one may need for calibration and troubleshooting, instrument maintenance and valve set-up. Druck's loop calibrator offers a wealth of time-saving features, all made possible through the advanced microprocessor-based electronics and large menu-driven graphics display.
Features & Benefits
• HART compatible with internal loop resistor
• Weighing just 275g (9.7 oz), and it's dimensional measurements are L129 x W77 x D24 mm - fitting comfortably in a shirt pocket
• Rugged, hardwearing and compact design
• The graphic display with a menu-driven interface has been designed to be super user-friendly
• The internal 0 to 24 V (volts) loop supply is available in both measure and source modes, this is essential during plant shutdowns
• Step, span check and value check can be easily carried out through linearity tests and zero/span adjustments
• The calibrator offers single-handed loop testing, valve set-up and slow rate checks through adjustable rates (1-599 secs)
• The continuity and switch test facility reduce DMM dependence when fault finding, checking loop integrity and testing switches
• Adjustable display contrast and resolution
• Battery voltage and low battery indicator
• The primary reading is shown in mA (milliamp) or %, as linear or square root (flow)
• Auto switch off can be enabled or disabled, when the auto power down is enabled it will power down 30 minutes ager the last key was pressed
• The measurement generation of 0 - 24mA DC
• Predefined values for quick testing of linear loops, flow loops and the control of valves
• Has an operating temperature of 14°F to 122°F (-10°C to 50°C)
• The power supply of this loop calibrator is through 4 x 1.5 V (volts) AA size alkaline batteries
• Electrical terminals are gold plated, 4 mm sockets
• Weighing just 275g (9.7 oz), and it's dimensional measurements are L129 x W77 x D24 mm - fitting comfortably in a shirt pocket
• Rugged, hardwearing and compact design
• The graphic display with a menu-driven interface has been designed to be super user-friendly
• The internal 0 to 24 V (volts) loop supply is available in both measure and source modes, this is essential during plant shutdowns
• Step, span check and value check can be easily carried out through linearity tests and zero/span adjustments
• The calibrator offers single-handed loop testing, valve set-up and slow rate checks through adjustable rates (1-599 secs)
• The continuity and switch test facility reduce DMM dependence when fault finding, checking loop integrity and testing switches
• Adjustable display contrast and resolution
• Battery voltage and low battery indicator
• The primary reading is shown in mA (milliamp) or %, as linear or square root (flow)
• Auto switch off can be enabled or disabled, when the auto power down is enabled it will power down 30 minutes ager the last key was pressed
• The measurement generation of 0 - 24mA DC
• Predefined values for quick testing of linear loops, flow loops and the control of valves
• Has an operating temperature of 14°F to 122°F (-10°C to 50°C)
• The power supply of this loop calibrator is through 4 x 1.5 V (volts) AA size alkaline batteries
• Electrical terminals are gold plated, 4 mm sockets
Looking for some accessories?
What's included with the kit?
• A handy user manual
• Set of cables/wires
• Batteries - 4 x 1.5 V AA alkaline
• Calibration certificate as standard
• Set of cables/wires
• Batteries - 4 x 1.5 V AA alkaline
• Calibration certificate as standard
속성 | 값 |
---|---|
Absolute Maximum Current Measurement | 24mA |
Model Number p | UPS-III |
Best Accuracy | ±0.01 % |
Resolution | 0.001 mA |
Battery Type | AA |
Battery Life | 75 h |
Power Source | Battery |
Weight | 275g |
Height | 129mm |
Length | 24mm |
Maximum Operating Temperature | +50°C |
Minimum Operating Temperature | -10°C |
Width | 77mm |
