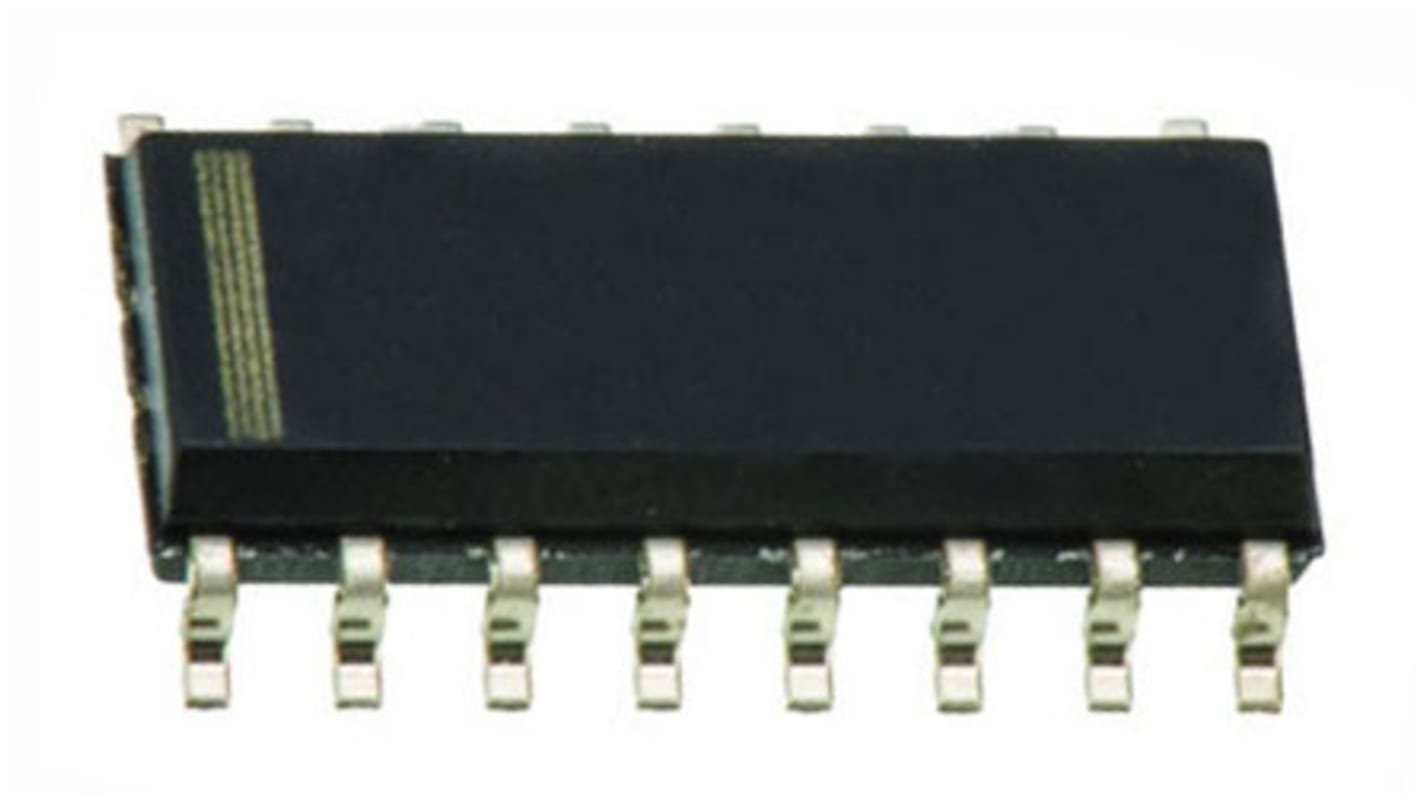

Texas Instruments CD74HCT85M, 4-Bit, Magnitude Comparator, Non-Inverting, 16-Pin SOIC
- RS 제품 번호:
- 663-0660
- 제조사 부품 번호:
- CD74HCT85M
- 제조업체:
- Texas Instruments
단종
- RS 제품 번호:
- 663-0660
- 제조사 부품 번호:
- CD74HCT85M
- 제조업체:
- Texas Instruments
제정법과 컴플라이언스
제품 세부 사항
74HCT Family Complex Function, Texas Instruments
Texas Instruments Complex Function ICs from the 74HCT CMOS Logic Family includes Binary Adders, Magnitude & Identity Comparators, PLLs (Phase Locked Loop) and 4-to-7 BCD Decoder/Drivers. Inputs of the 74HCT family are 74LSTTL compatible, and the products use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
74HCT Family
사양
속성 | 값 |
|---|---|
| Logic Family | HCT |
| Logic Function | Magnitude Comparator |
| Output Function | A<B, A=B, A>B |
| Number of Bits | 4 |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Maximum High Level Output Current | -4mA |
| Maximum Low Level Output Current | 4mA |
| Maximum Propagation Delay Time @ Maximum CL | 40 ns@ 4.5 V |
| Dimensions | 9.9 x 3.91 x 1.58mm |
| Height | 1.58mm |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 9.9mm |
| Width | 3.91mm |
