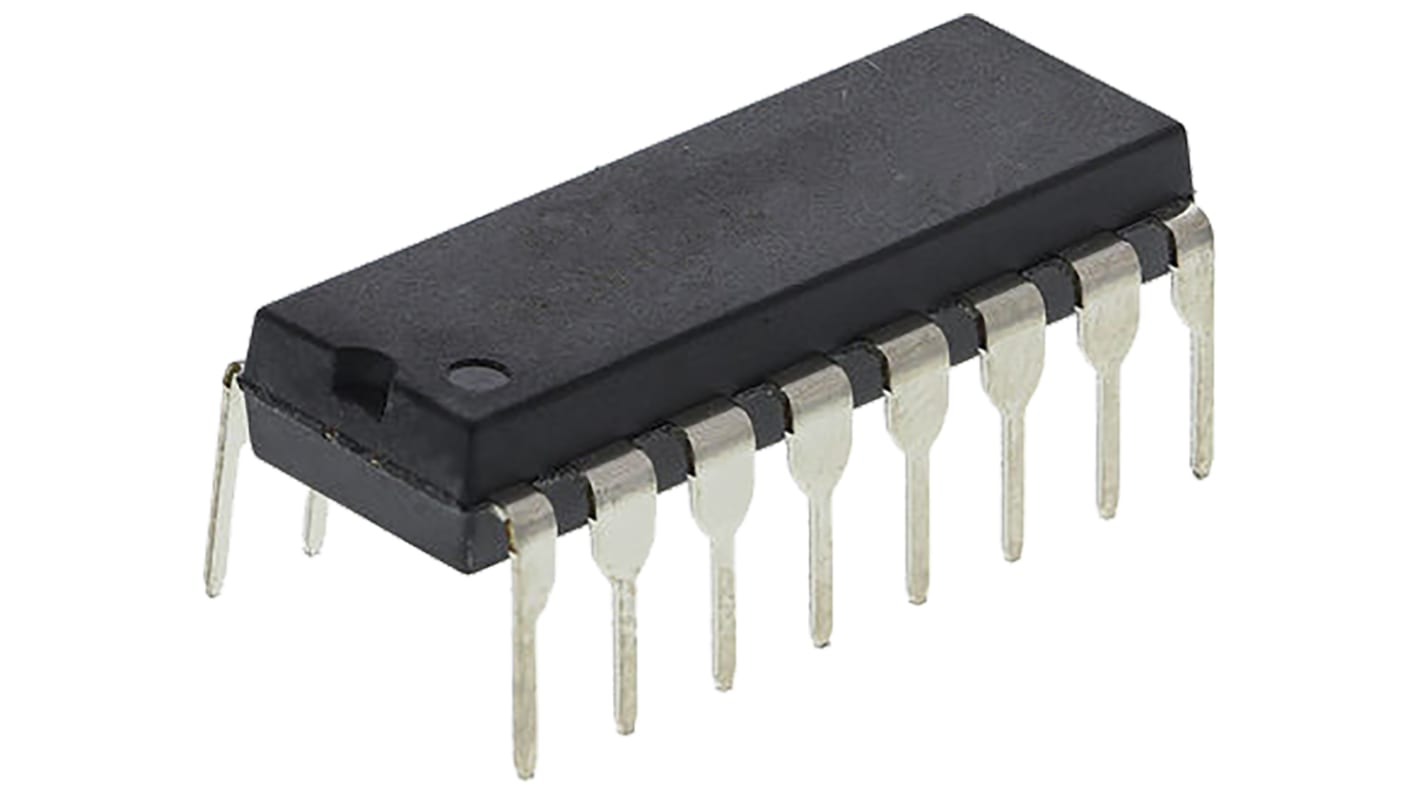

Texas Instruments CD4585BE, 4-Bit, Magnitude Comparator, Non-Inverting, 16-Pin PDIP
- RS 제품 번호:
- 145-0032
- 제조사 부품 번호:
- CD4585BE
- 제조업체:
- Texas Instruments
단종
- RS 제품 번호:
- 145-0032
- 제조사 부품 번호:
- CD4585BE
- 제조업체:
- Texas Instruments
제정법과 컴플라이언스
- COO (Country of Origin):
- MY
제품 세부 사항
4000 Series Complex Function, Texas Instruments
Texas Instruments Complex Function ICs from the 4000 Series CMOS Logic Family includes 7-segment LCD Latch/Decoder/Drivers, Magnitude Comparators and Phase Locked Loop (PLL) ICs.
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
Wide operating voltage range: 3 to 18V
사양
속성 | 값 |
|---|---|
| Logic Family | 4000 |
| Logic Function | Magnitude Comparator |
| Number of Bits | 4 |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Maximum High Level Output Current | -4.2mA |
| Maximum Low Level Output Current | 4.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 160 ns @ 15 V, 250 ns @ 10 V, 600 ns @ 5 V |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Height | 4.57mm |
| Maximum Operating Supply Voltage | 18 V |
| Width | 6.35mm |
| Length | 19.3mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 3 V |
| Minimum Operating Temperature | -55 °C |
