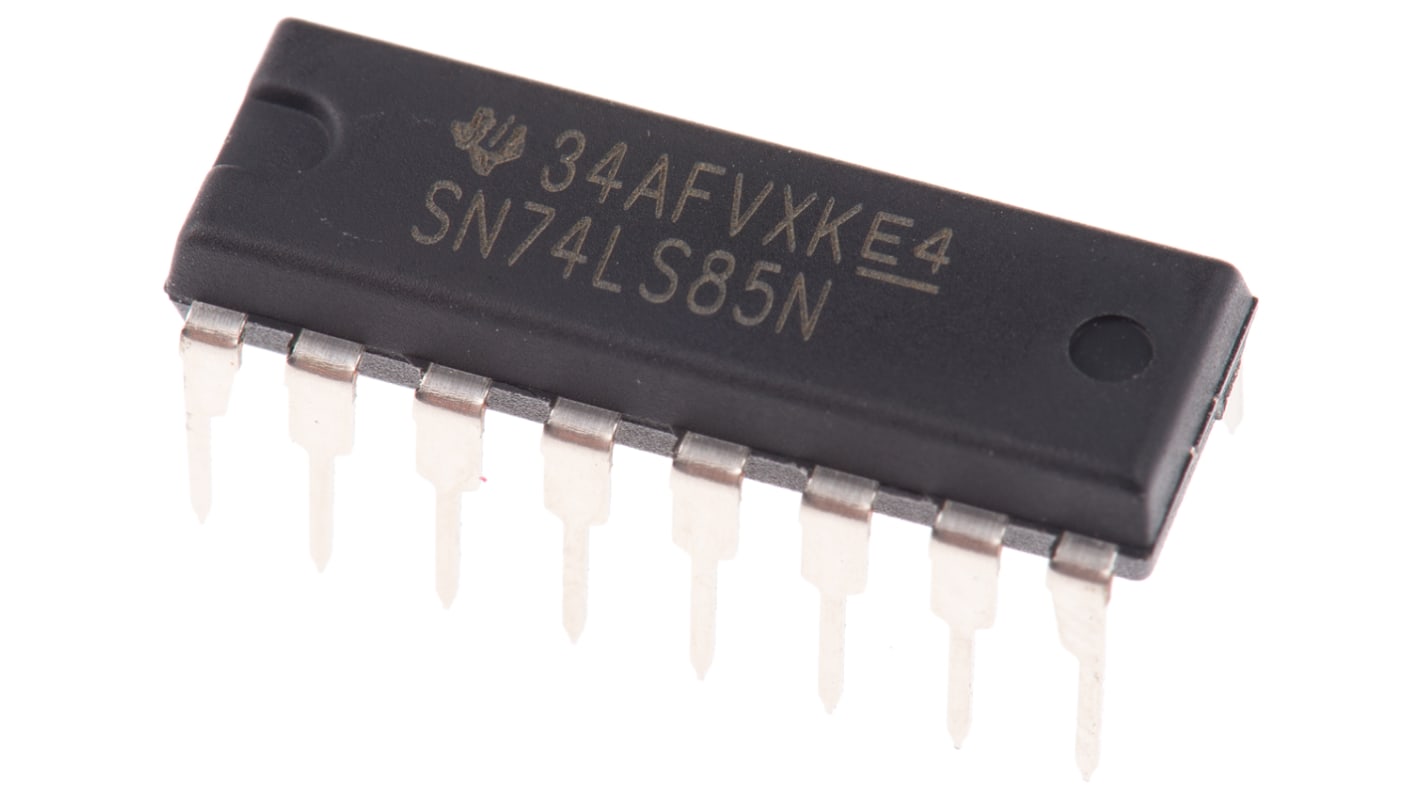

Texas Instruments SN74LS85N, 4-Bit, Magnitude Comparator, Non-Inverting, 16-Pin PDIP
- RS 제품 번호:
- 309-105
- 제조사 부품 번호:
- SN74LS85N
- 제조업체:
- Texas Instruments
- RS 제품 번호:
- 309-105
- 제조사 부품 번호:
- SN74LS85N
- 제조업체:
- Texas Instruments
제정법과 컴플라이언스
제품 세부 사항
74LS Family Complex Function, Texas Instruments
Texas Instruments Complex Function ICs from the 74LS Low Power Schottky Logic Family includes Binary Adders, Magnitude & Identity Comparators and 4-to-7 BCD Decoder/Drivers. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
74LS Family
사양
속성 | 값 |
|---|---|
| Logic Family | LS |
| Logic Function | Magnitude Comparator |
| Output Function | A<B, A=B, A>B |
| Number of Bits | 4 |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Maximum High Level Output Current | -0.4mA |
| Maximum Low Level Output Current | 8mA |
| Maximum Propagation Delay Time @ Maximum CL | 45 ns@ 5 V |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Height | 4.57mm |
| Minimum Operating Temperature | 0 °C |
| Length | 19.3mm |
| Maximum Operating Supply Voltage | 5.25 V |
| Maximum Operating Temperature | +70 °C |
| Width | 6.35mm |
| Propagation Delay Test Condition | 15pF |
| Minimum Operating Supply Voltage | 4.75 V |
