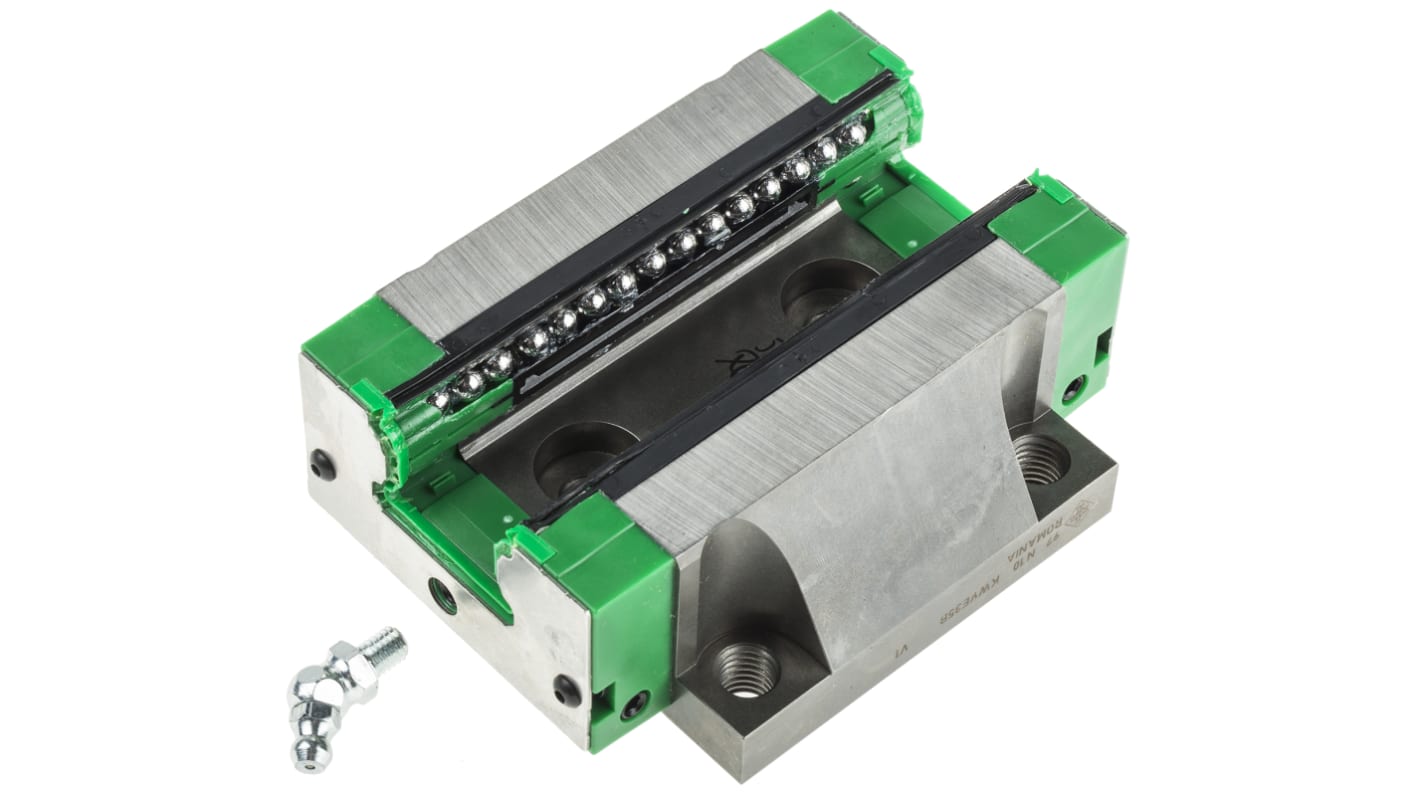

INA Linear Guide Carriage KWVE35-B-G3-V1, KWVE35

Four-row linear recirculating ball bearing and guideway assemblies represent the most extensive and complex group within the range of monorail guidance systems. They are used where linear guidance systems with high load carrying capacity and rigidity must move heavy loads with high running and positional accuracy as well as low friction. The guidance systems are preloaded and are suitable for long, unlimited stroke lengths. Depending on the operating conditions, accelerations up to 150 m/s2 and speeds up to 360 m/min are possible.

Full complement
With Quad-Spacers
Load carrying capacity
Carriages
Guideways
Located from above or below
With helical teeth
Slot for covering strip
Multi-piece guideways
Sealing
Lubrication
Operating temperature
Standard accessories
Plastic dummy guideway
Plastic closing plugs
Lubrication connectors
Corrosion-resistant designs
Suffixes
