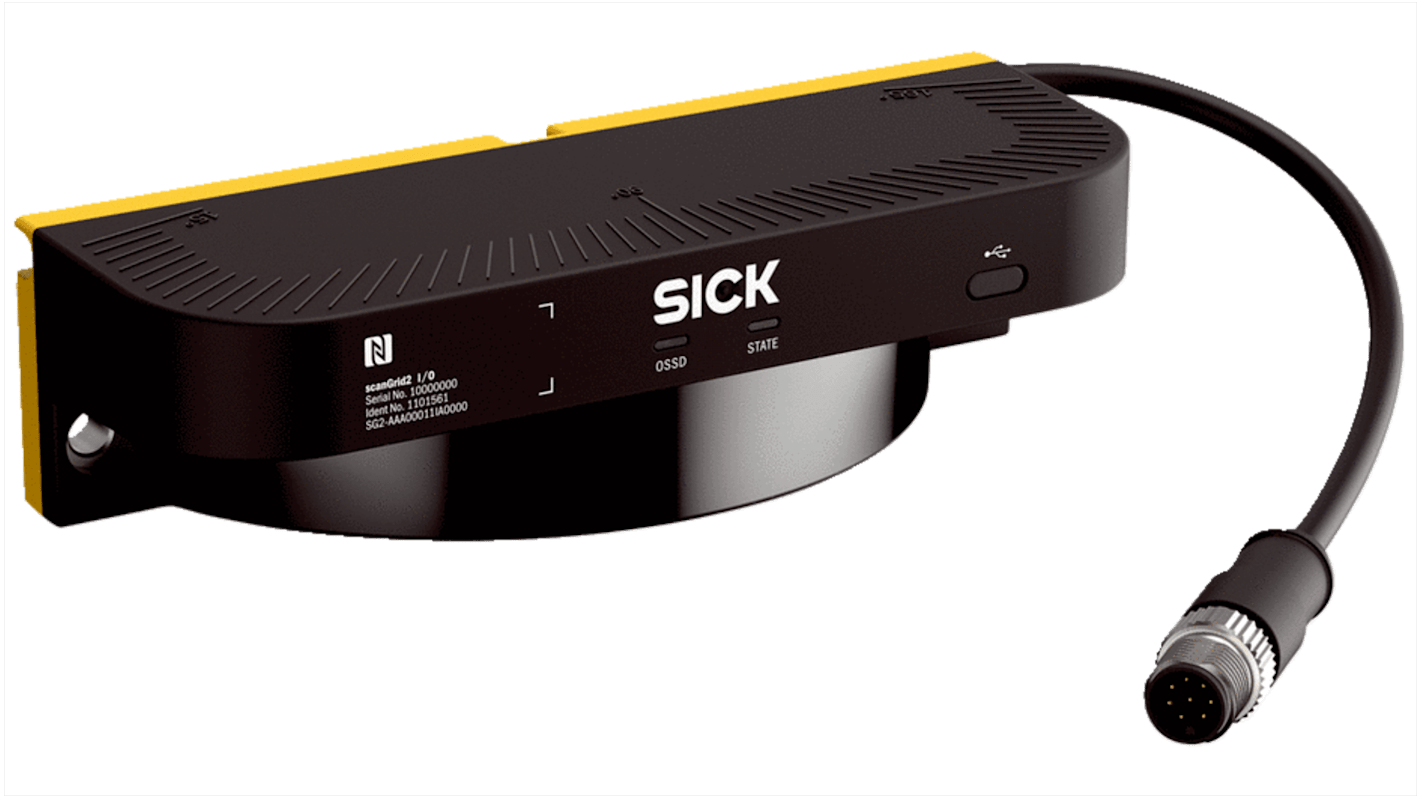

SICK SG2 Series Laser Scanner Scanner, 1.1 m Max Range
- RS 제품 번호:
- 285-8995
- 제조사 부품 번호:
- SG2-AAA00011IA0000 / 1101561
- 제조업체:
- SICK
Subtotal (1 unit)*
₩2,623,580.00
일시적 품절
- 2026년 9월 22일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩2,623,580.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-8995
- 제조사 부품 번호:
- SG2-AAA00011IA0000 / 1101561
- 제조업체:
- SICK
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SICK | |
| Product Type | Laser Scanner | |
| Series | SG2 | |
| Component Type | Scanner | |
| Maximum Scanning Distance | 1.1m | |
| Minimum Scanning Distance | 1.1m | |
| Safety Type | Type 2 (Iec 61496-3) | |
| Standards/Approvals | PL c | |
| Maximum Response Time | 60ms | |
| Terminal Type | M12 Connector | |
| Hazardous Area Certification | No | |
| Width | 160mm | |
| Length | 56mm | |
| Peak Wavelength | 850nm | |
| Height | 43mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SICK | ||
Product Type Laser Scanner | ||
Series SG2 | ||
Component Type Scanner | ||
Maximum Scanning Distance 1.1m | ||
Minimum Scanning Distance 1.1m | ||
Safety Type Type 2 (Iec 61496-3) | ||
Standards/Approvals PL c | ||
Maximum Response Time 60ms | ||
Terminal Type M12 Connector | ||
Hazardous Area Certification No | ||
Width 160mm | ||
Length 56mm | ||
Peak Wavelength 850nm | ||
Height 43mm | ||
- COO (Country of Origin):
- DE
Overview
Safety multibeam scanners s offering an economical safety solution for small, line-guided AGCs (automated guided carts): The world’s first LiDAR multibeam scanner with safe solid state technology. Thanks to its excellent price-performance ratio, large fle
Its compact design and smart functions also ensures quick and simple installation, configuration and diagnostics. Simply revolutionary.
At a glance
The world’s first LiDAR multibeam scanner with safe solid state technology
Perfectly designed for the requirements of line-guided AGCs: PL c, 1.1 m scanning range, 150° scanning angle
Compact – only 43 mm high
Diagnostic data and clone function for config
Your Benefit
Increase your productivity by eliminating mechanical barriers and the option of running your line-guided AGCs (automated guided carts) at higher speeds and with higher loads
Profit from a quick return on investment with an economic safety solution for lin
Applications
