Endress+Hauser Micropilot FMR20 Series Radar Level Sensor Level Radar, Wall Mount, ATEX-Rated, Housing Polyvinylidene
- RS 제품 번호:
- 287-1716
- 제조사 부품 번호:
- FMR20-AAABMWDEWFE2
- 제조업체:
- Endress+Hauser
Subtotal (1 unit)*
₩1,753,966.50
제조사가 재고 비축중
- 2026년 6월 08일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,753,966.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 287-1716
- 제조사 부품 번호:
- FMR20-AAABMWDEWFE2
- 제조업체:
- Endress+Hauser
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Endress+Hauser | |
| Device Type | Radar Level Sensor | |
| Product Type | Level Radar | |
| Mount Type | Wall Mount | |
| Housing Material | Polyvinylidene Fluoride | |
| Cable Length | 300m | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Maximum Pressure | 3bar | |
| Standards/Approvals | ATEX, INMETRO, CSA C/US, EAC, JPN Ex, NEPSI, IEC Ex | |
| Hazardous Area Certification | ATEX | |
| Series | Micropilot FMR20 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Endress+Hauser | ||
Device Type Radar Level Sensor | ||
Product Type Level Radar | ||
Mount Type Wall Mount | ||
Housing Material Polyvinylidene Fluoride | ||
Cable Length 300m | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Maximum Pressure 3bar | ||
Standards/Approvals ATEX, INMETRO, CSA C/US, EAC, JPN Ex, NEPSI, IEC Ex | ||
Hazardous Area Certification ATEX | ||
Series Micropilot FMR20 | ||
- COO (Country of Origin):
- DE

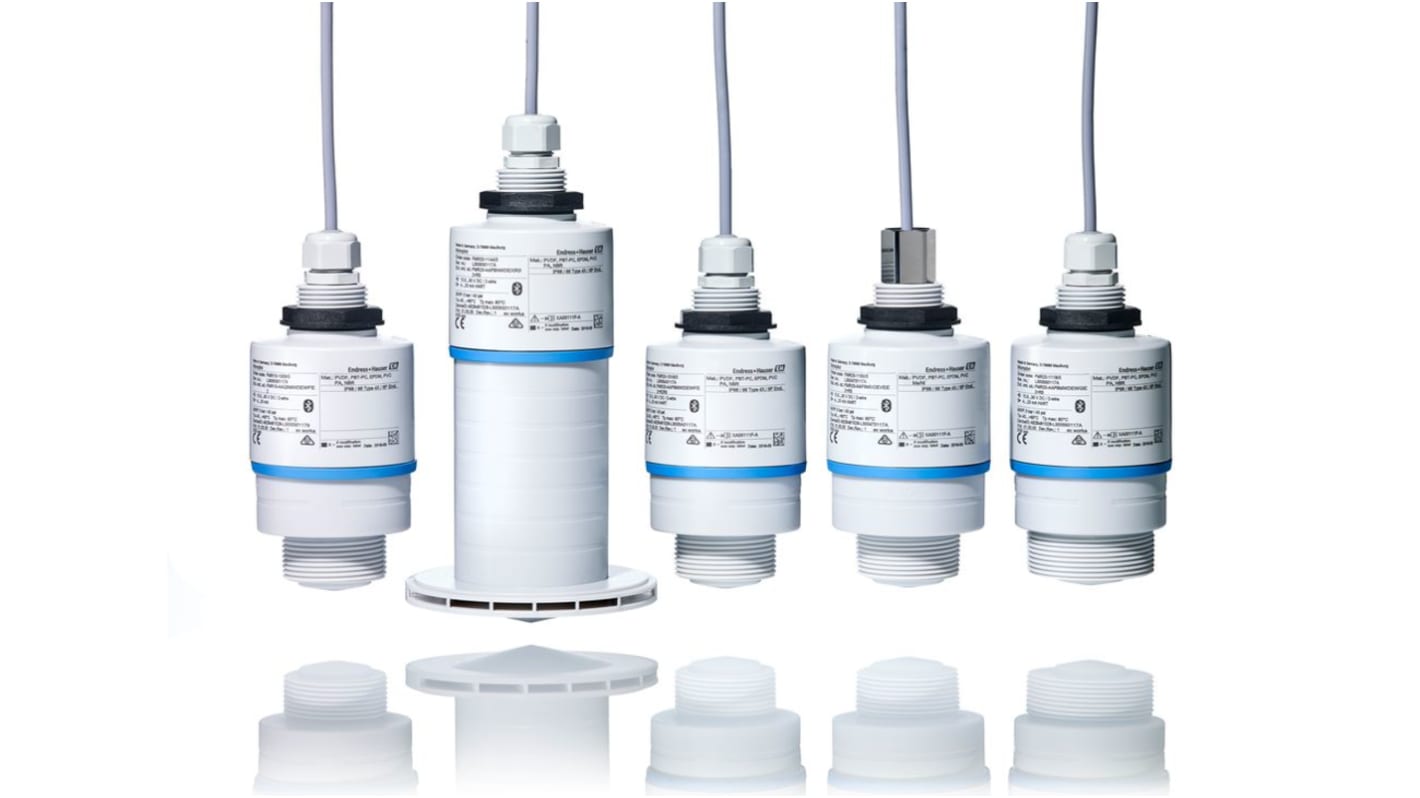

The ENDRESS+HAUSER micro pilot radar level sensor is a compact radar for continuous contactless level measurement of water-based liquids. The measurement is reliable even with changing media, pressure, temperature or gas phases. Optionally, easy commissioning is possible via HART or wirelessly via the SmartBlue app using Bluetooth. The device is ideal for applications with limited space availability.
Wireless commissioning via app using Bluetooth
Most compact design in class
