Vega VEGAMET 841 Series Level Controller - Wall Mount, 100 → 230 V 1 Voltage Input Analogue and Relay
- RS 제품 번호:
- 206-7058
- 제조사 부품 번호:
- CR - 222 223
- 제조업체:
- Vega
- RS 제품 번호:
- 206-7058
- 제조사 부품 번호:
- CR - 222 223
- 제조업체:
- Vega
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항

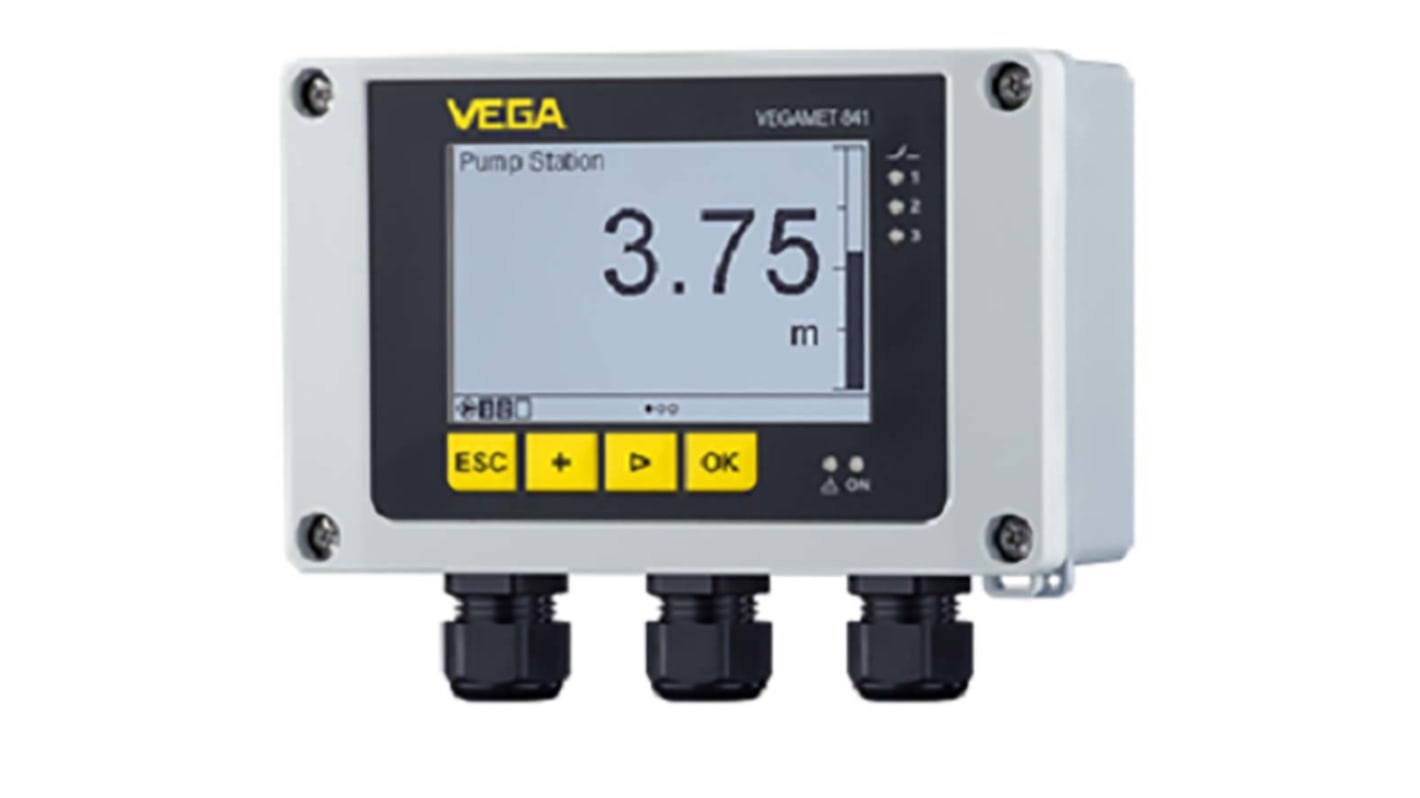

The Vega's VEGAMET 841 controller feeds the connected 4 to 20 mA sensor, process the measured value and display them. A large display for data visualisation is integrated in the housing designed for rough field condition. It enables simple implementation of pump control, flow measurement on open channel and weirs and totalizer.
Easy-to-read display from a distance, even in sunlight and darkness
Ambient temperature -40 to +60 °C
Ambient temperature -40 to +60 °C
사양
속성 | 값 |
---|---|
Number of Inputs | 1 |
Mounting Style | Wall Mount |
Probe Voltage | 27V |
Supply Voltage | 100 → 230 V |
Overall Length | 162mm |
Overall Depth | 76mm |
Minimum Operating Temperature | -40°C |
Termination Type | M20 |
IP Rating | IP65 |
Series | VEGAMET 841 |
Input Type | Voltage |
Number of Outputs | 4 |
Current Rating | 5 W |
Output Type | Analogue and Relay |
