- RS 제품 번호:
- 814-0932P
- 제조사 부품 번호:
- L130-2780002011001
- 제조업체:
- Lumileds
1500 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당(릴로 공급됨) 150pcs 이하는 STRIP 포장
₩303.582
수량 | 한팩당 |
1250 - 2450 | ₩303.582 |
2500 + | ₩298.408 |
- RS 제품 번호:
- 814-0932P
- 제조사 부품 번호:
- L130-2780002011001
- 제조업체:
- Lumileds
제정법과 컴플라이언스
제품 세부 사항

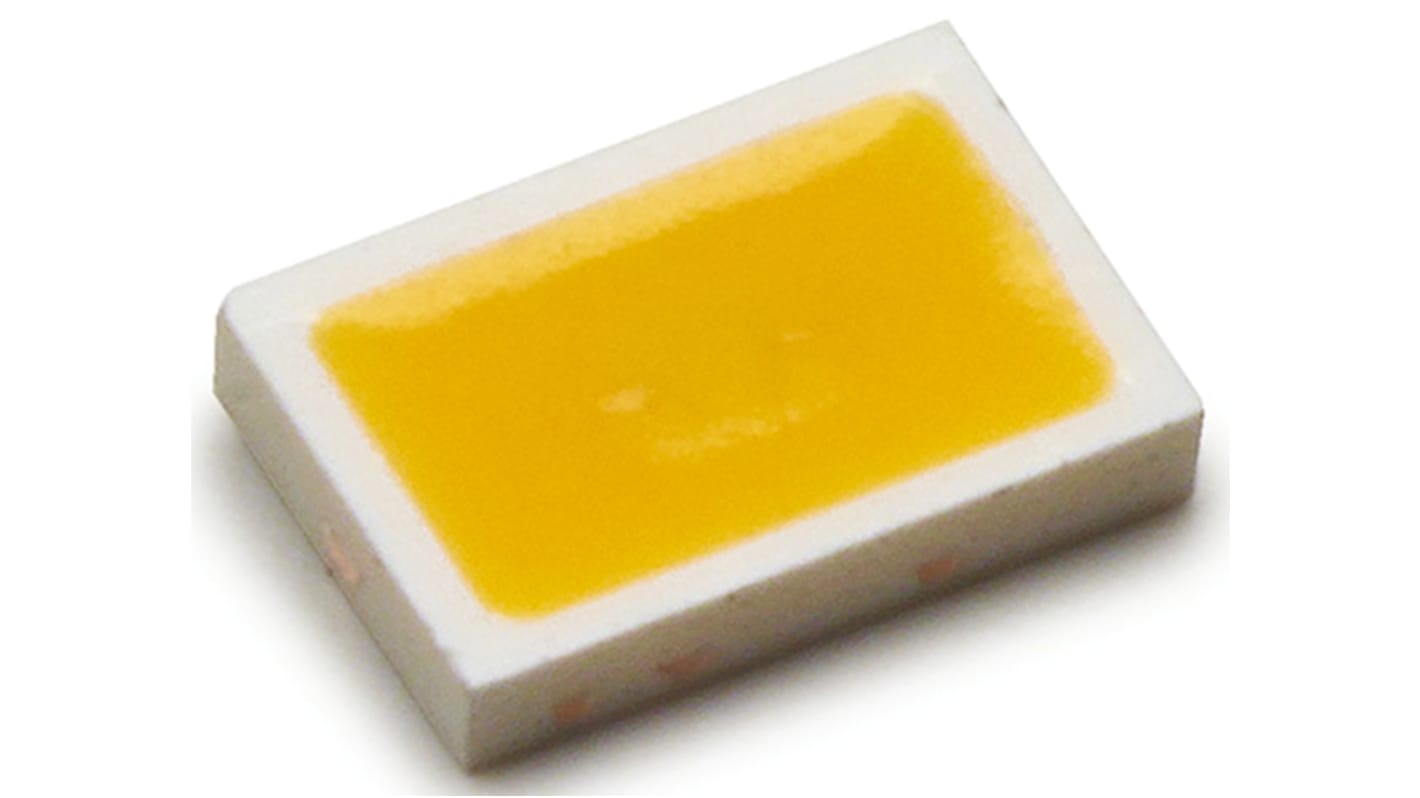

Lumileds LUXEON 3020 Series LEDs
The LUXEON 3020 series of LEDs, from Lumileds, are hot color targeted 3V LEDs. With up to 155 lm/W available, the LUXEON 3020 LEDs are in a reliable QFN EMC package with a 3020 footprint. Lumileds LUXEON 3020 devices deliver superior lumen maintenance and assure ANSI compliance at operating condition. Their high lumen output and compact 3020 footprint makes high lumen density design feasible whilst also providing design flexibility. The LUXEON 3020 are ideal for mass production of affordable and reliable bulbs/lamps. They also simplify system design and integration with hot colour targeting. Suitable applications for the LUXEON 3020 LEDs are downlights, high bay, low bay, indoor area lighting and retrofit lamps.
Up to 155 lm/W
Reliable QFN EMC package
Hot targeted at 85˚C
1/9 micro color binning
High lumen output and compact 3020 footprint
LUXEON 3020 is tested and binned at Tj = 25°C and 120 mA DC
Reliable QFN EMC package
Hot targeted at 85˚C
1/9 micro color binning
High lumen output and compact 3020 footprint
LUXEON 3020 is tested and binned at Tj = 25°C and 120 mA DC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Visible Light LEDs, Lumileds
사양
속성 | 값 |
---|---|
LED Colours | White |
Package Type | 3020 (1208) |
Mounting Type | Surface Mount |
Number of LEDs | 1 |
Forward Voltage | 3.3 V |
Number of Pins | 2 |
Luminous Flux | 44.5 lm |
Lens Shape | Rectangle |
Series | LUXEON 3020 |
Colour Temperature | 2700K |
Dimensions | 3 x 2 x 0.52mm |
