MEAN WELL, 54 V Output, 600 W Output 0 to 10 V dc, 10V PWM

모든 LED Drivers 열람하기

Subtotal (1 unit)*

₩359,061.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩359,061.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
149-517
제조사 부품 번호:
HLG-600H-54B
제조업체:
MEAN WELL
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MEAN WELL

Product Type

LED Driver

Output Voltage

54 V

Maximum Output Power

600W

Input Voltage

90/305 V

Dimming Operation

0 to 10 V dc, 10V PWM

Input Voltage Type

AC

IP Rating

IP67, IP65

LED Voltage

12 to 54 V

Operating Modes

Constant Current/Constant Voltage

Series

HLG-600H

Standards/Approvals

GB/T17743, GB1, KN61547, EAC TP TC 020, BS EN/EN61547, BS EN/EN61000-4-2, BS EN/EN61000-3-3, BS EN/EN61000-3-2 Class C, BS EN/EN55024, BS EN/EN55015, KC KN15

Power Dissipation

0.5W

Primary Type

Constant Voltage + Constant Current LED Driver

제외

COO (Country of Origin):
TW

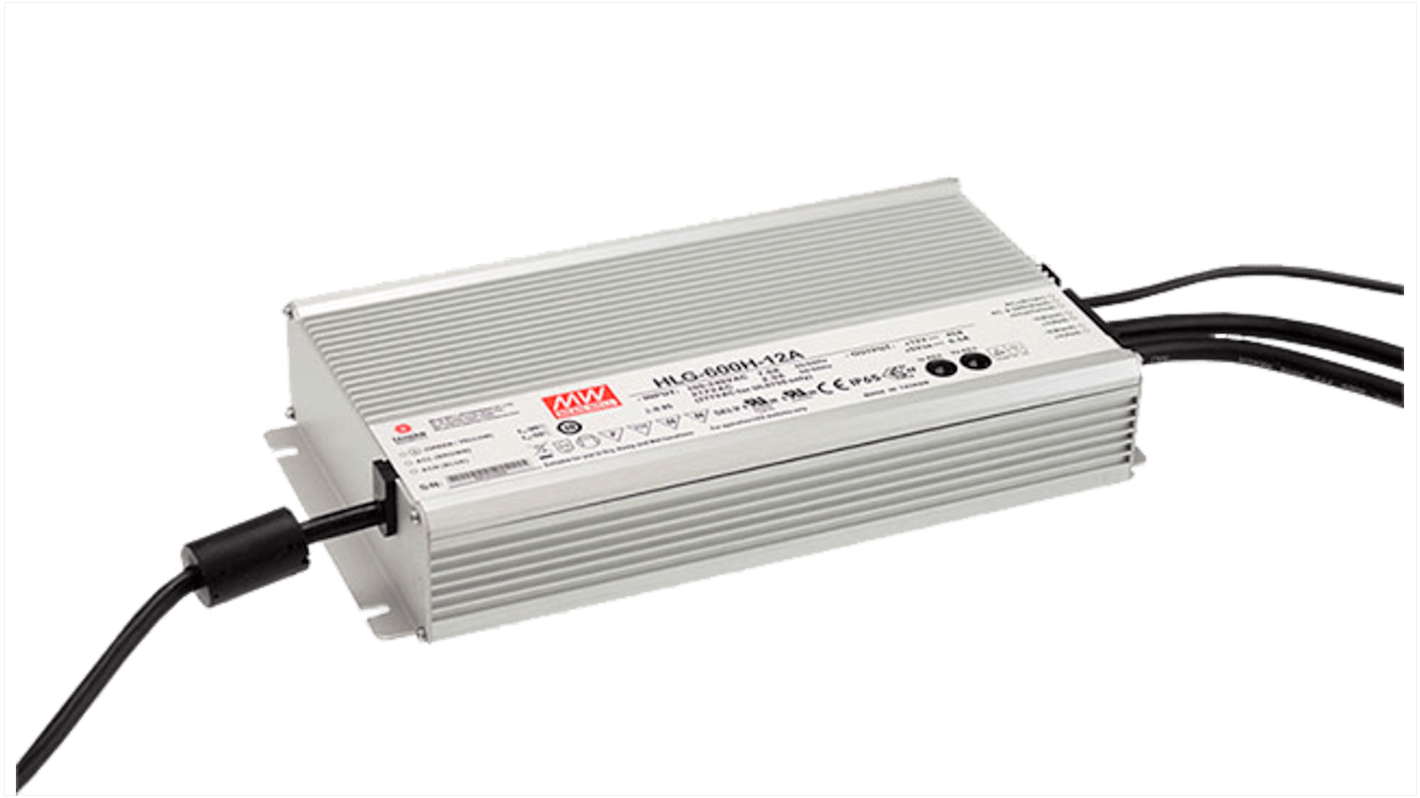

The MEANWELL single output LED driver with mix mode (CV+CC) and built-in PFC. It delivers an output of 54Vdc at 11.2A with IP67 protection. The driver allows CC adjustment with 1-10V, PWM, and resistance options, providing versatility in LED applications.

AC-DC Constant Current (C.C.) and Constant Voltage (C.V.) modes

Output power of 600W and output voltage of 54V

Input voltage range of 110/230V with universal input

IP67 rated for protection against dust and water

Dimming options available with 1-10V, PWM, and resistance adjustments

Metal housing for durability and optimal performance
