Microchip MCP1630DM-LED2, Boost Mode LED Driver Demonstration Board for MCP1630V
- RS 제품 번호:
- 401-983
- 제조사 부품 번호:
- MCP1630DM-LED2
- 제조업체:
- Microchip
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 401-983
- 제조사 부품 번호:
- MCP1630DM-LED2
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| LED Technology | LED Driver | |
| Kit Classification | Demonstration Board | |
| Featured Device | MCP1630V | |
| Kit Name | Boost Mode | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
LED Technology LED Driver | ||
Kit Classification Demonstration Board | ||
Featured Device MCP1630V | ||
Kit Name Boost Mode | ||

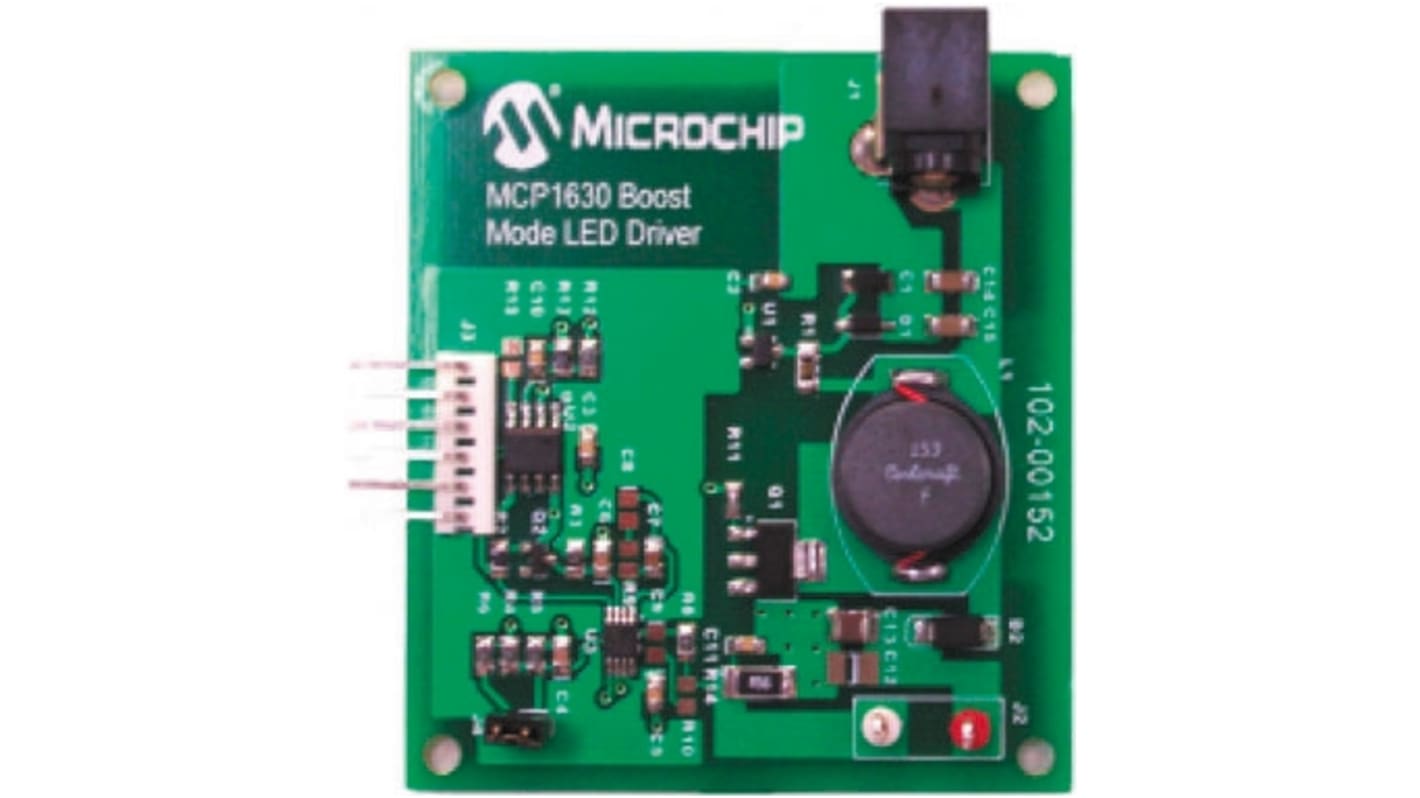

MCP1630 Boost Mode LED Driver Demo Board
The MCP1630 Boost Mode LED Driver Demo Board is a step-up, switch-mode, dc-dc converter used for power LED applications. The demo board provides a 350mA or 700mA constant current source with jumper selection. The operating supply is 9Vdc to 16Vdc and the board can supply 30W to a string of power LEDs.
Compact size with high output power
High efficiency over entire operating input voltage range
Selectable 350mA or 700mA output current
Up to 30W output power
Optional software dimming control
500 kHz switching frequency can be changed in firmware
Additional application functions can be provided in firmware
High efficiency over entire operating input voltage range
Selectable 350mA or 700mA output current
Up to 30W output power
Optional software dimming control
500 kHz switching frequency can be changed in firmware
Additional application functions can be provided in firmware
Supplied with
5 PCB mounted LEDs, User’s Guide (DS51665), Analog and Interface Products Demonstration Boards CD-ROM (DS21912)
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
LED Drivers, Microchip
