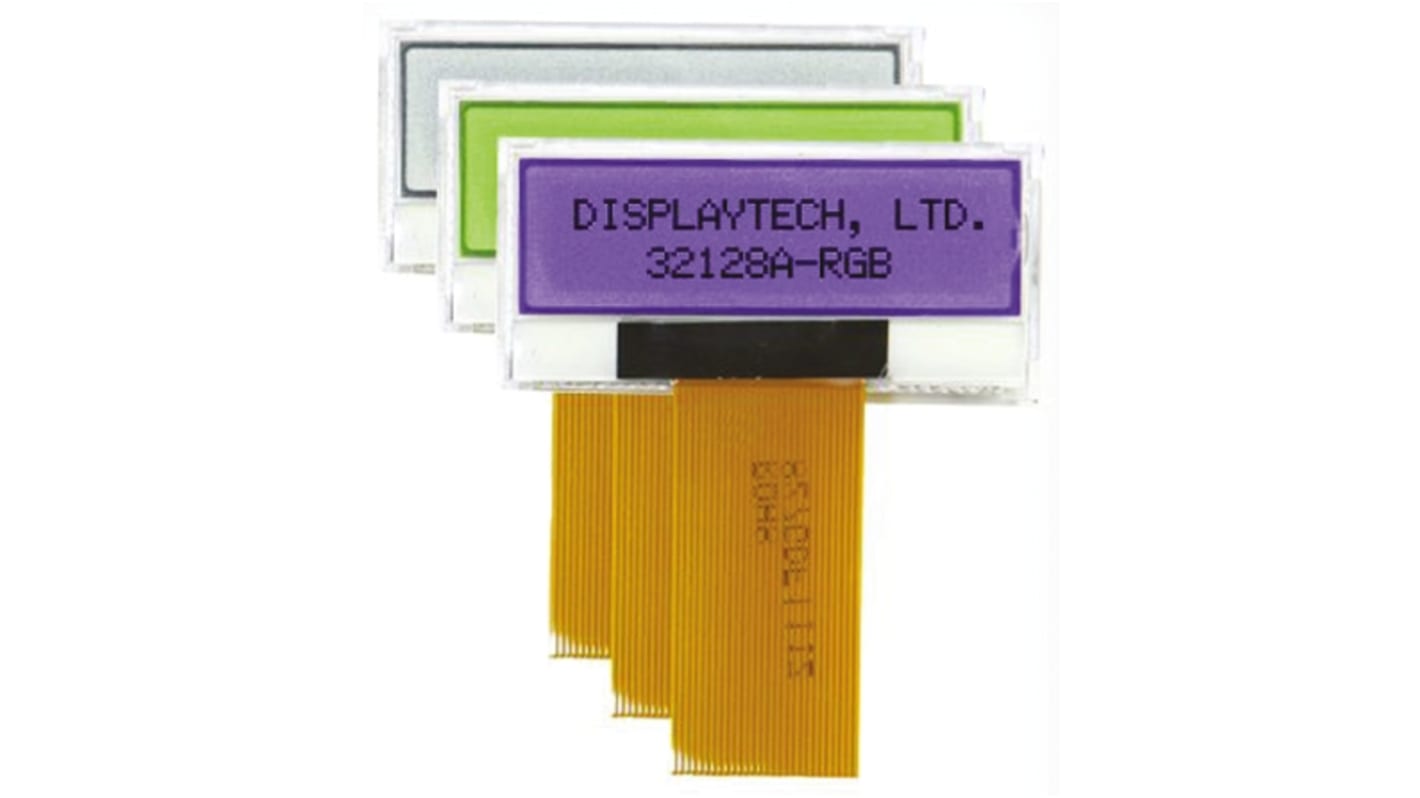

Displaytech 32128A-FC-BW-RGB Graphic LCD Display, Black on Blue, Green, Red, Transflective
- RS 제품 번호:
- 627-1753
- 제조사 부품 번호:
- 32128A-FC-BW-RGB
- 제조업체:
- Displaytech
일시 품절-다음 입고 날짜는 19/11/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩31,708.837
| 수량 | 한팩당 |
| 1 - 9 | ₩31,708.837 |
| 10 - 24 | ₩30,917.108 |
| 25 - 49 | ₩30,142.628 |
| 50 - 99 | ₩29,388.846 |
| 100 + | ₩28,652.314 |
- RS 제품 번호:
- 627-1753
- 제조사 부품 번호:
- 32128A-FC-BW-RGB
- 제조업체:
- Displaytech
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
128 x 32 Pixel Dot Matric LCD Display
From Displayport, this standard graphic LCD module is ideal for applications that require a small, high-resolution display such as remote controls.
Features & Benefits
Resolution: 128 x 32
Duty: 1/33
Pixel Size: 0.242 x 0.242
View Area: 36.1 x 9.95
Module Size: 41.3 x 19.7
Driver IC: ST7565V
Duty: 1/33
Pixel Size: 0.242 x 0.242
View Area: 36.1 x 9.95
Module Size: 41.3 x 19.7
Driver IC: ST7565V
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Monochrome Graphic LCD Displays
사양
속성 | 값 |
|---|---|
| Display Type | Graphic |
| Resolution | 128 x 32pixels |
| Viewing Area Width | 54.8mm |
| Viewing Area Height | 19.1mm |
| Viewing Area Dimensions | 55 x 19mm |
| Interface Type | FPC |
| External Depth | 5.5mm |
| Illumination Colour | Black |
| Backlight Type | LED |
| Background Colour | Blue, Green, Red |
| External Width | 65.6mm |
| External Dimensions | 65.6 x 5.5 x 29.2mm |
| External Height | 29.2mm |
| Controller Type | NJU6450 |
| Display Mode | Transflective |
| Display Matrix Technology | FSTN |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +80°C |
