NEWHAVEN DISPLAY INTERNATIONAL NHD-240128WG-ATFH-VZ# NHD LCD LCD Display, White on White, Transflective
- RS 제품 번호:
- 264-4023
- 제조사 부품 번호:
- NHD-240128WG-ATFH-VZ#
- 제조업체:
- NEWHAVEN DISPLAY INTERNATIONAL
- RS 제품 번호:
- 264-4023
- 제조사 부품 번호:
- NHD-240128WG-ATFH-VZ#
- 제조업체:
- NEWHAVEN DISPLAY INTERNATIONAL
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항

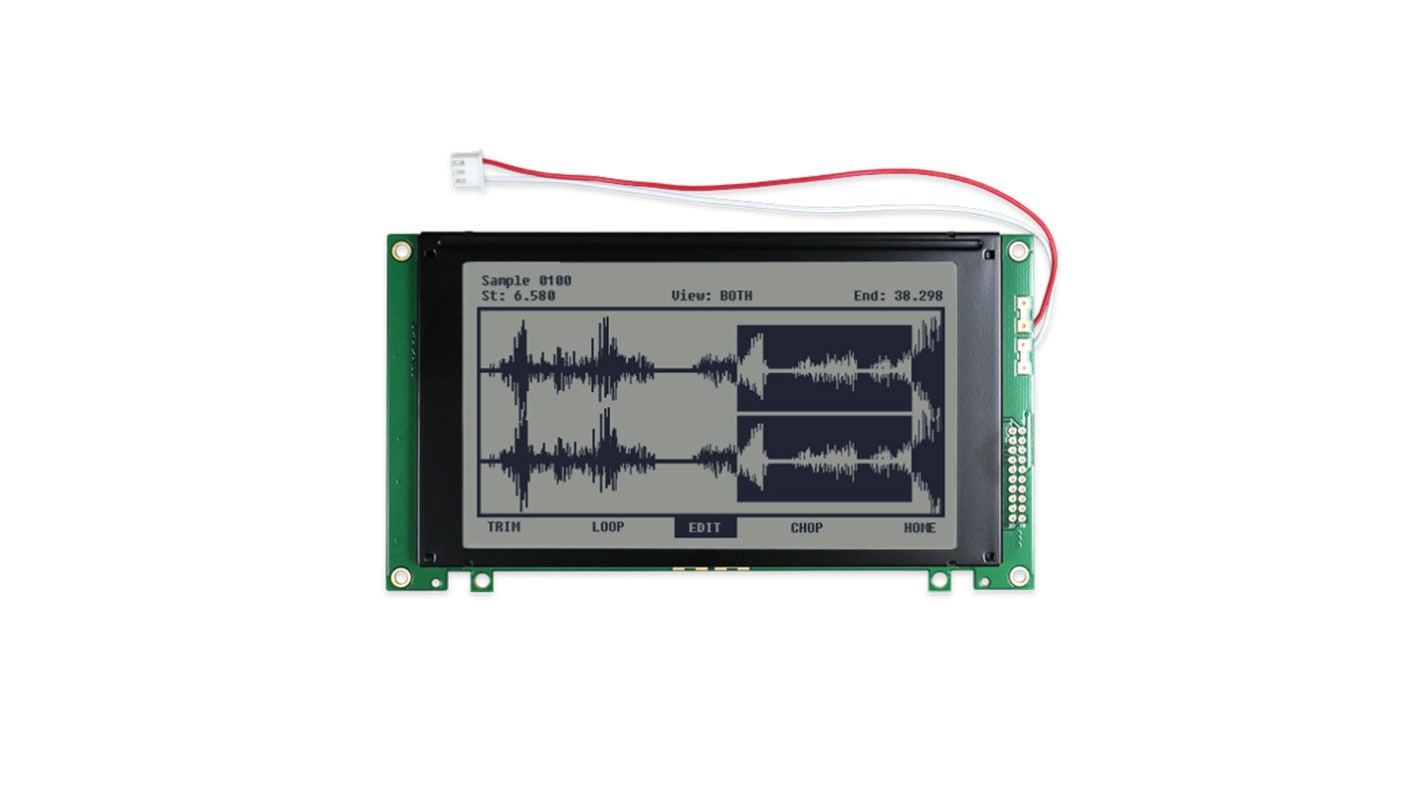

The NEWHAVEN DISPLAY INTERNATIONAL 240 x 128 graphic liquid crystal display module shows dark pixels. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This display includes built-in negative voltage. It has an optimal view of 6:00, operates at 5V supply voltage and is RoHS compliant.
Backlight color white
Display type FSTN
Display type FSTN
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Display Type | LCD |
| Resolution | 240x128pixels |
| Viewing Area Dimensions | 128.0 x 75.0mm |
| Interface Type | Parallel |
| Dimensions | 170.0 x 93.4 x 12.4mm |
| Illumination Colour | White |
| Touch Screen Type | None |
| Background Colour | White |
| Controller Type | RA6963 |
| Display Mode | Transflective |
| Maximum Operating Temperature | -20°C |
| Minimum Operating Temperature | +70°C |
| Voltage Rating | 5V |
| Series | NHD |
