The Electronic Assembly EA DOG series presents the world’s first display series which will run on 3.3 V systems without auxiliary power. It is extremely compact at 66 x 40 mm at the standard font size of 4.8 mm (4 x 10). It is ultra-flat at 2.0 mm without backlight or 5.8 mm including LED backlight and it has 4-bit, 8-bit SPI and I²C interface. It can be easily installed by simply soldering into the board.

Controller UC1611 with integrated graphic RAM.
High contrast LCD supertwist display (STN AND FSTN) with 15μm dot gap
LED backlighting 10 to 150mA
No mounting required because it can be soldered directly onto PCB.

수량	한팩당	Per Tray**
16 - 16	₩94,815.92	₩1,517,049.08
32 - 48	₩92,920.88	₩1,486,722.80
64 +	₩91,061.56	₩1,456,981.20

모두 선택	제품 정보	값
	브랜드	Display Visions
	Character Rows	240
	Characters per Row	64
	Interface Type	I2C, SPI
	Backlight Type	LED
	Controller Type	UC1611S
	Display Matrix Technology	FSTN
	Voltage Rating	3.3V
	Bezel Included	No
	Series	EA DOG
	Current Rating	900µA

	모두 선택
	브랜드 Display Visions
	Character Rows 240
	Characters per Row 64
	Interface Type I2C, SPI
	Backlight Type LED
	Controller Type UC1611S
	Display Matrix Technology FSTN
	Voltage Rating 3.3V
	Bezel Included No
	Series EA DOG
	Current Rating 900µA

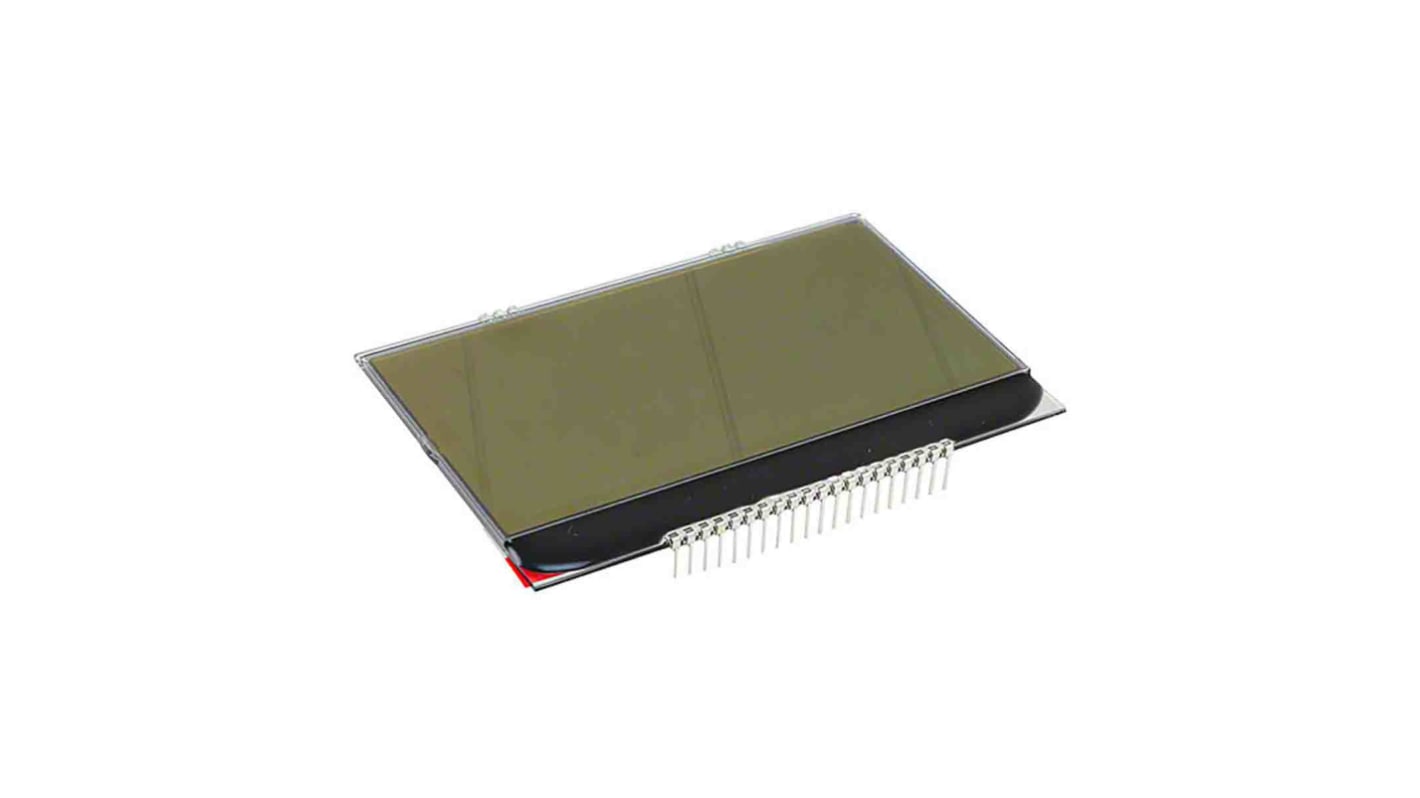

Display Visions EA DOGXL240W-7 EA DOG LCD Display

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
