Displaytech 202A-BA-BC Alphanumeric LCD Display, Yellow on Green, 2 Rows by 20 Characters, Reflective

RS 제품 번호:: 177-5394
제조사 부품 번호:: 202A-BA-BC
제조업체:: Displaytech

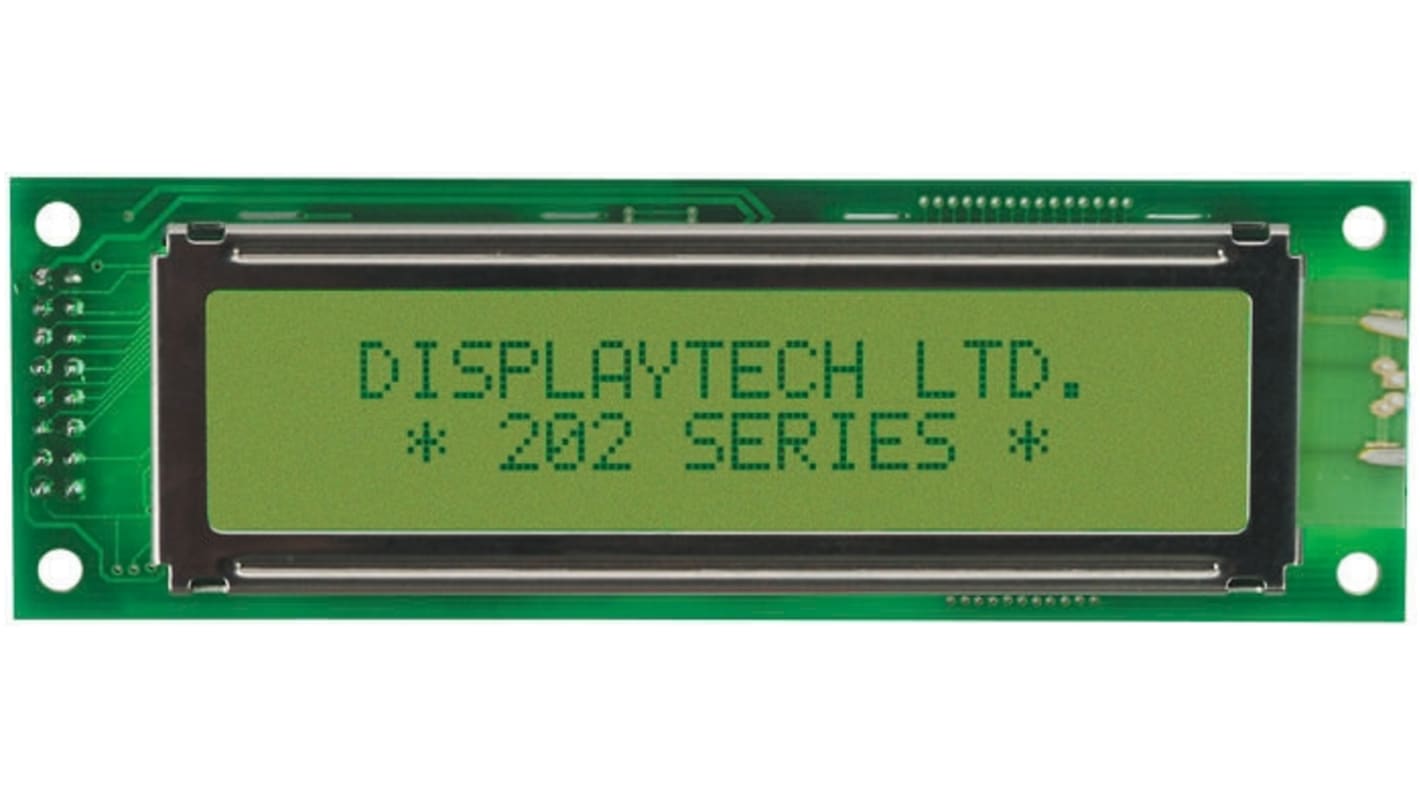

Displaytech 202A-BA-BC Alphanumeric LCD Display, Yellow on Green, 2 Rows by 20 Characters, Reflective

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

가격 개당가격(250개가 1박스안에)**

₩26,598.24

250 재고있음 5-9영업일내 홍콩 발송*

* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.

재고 확인하기

수량	한팩당	Per Box**
250 - 1000	₩26,598.24	₩6,649,607.00
1250 +	₩23,938.04	₩5,984,651.00

** 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 177-5394
제조사 부품 번호:: 202A-BA-BC
제조업체:: Displaytech

Displaytech Reflective & Transflective LCD Displays STN / FSTN

Displaytech offers a wide range of character LCD /alphanumeric displays. Available in a multitude of LCD and LED backlight colour combinations to help you achieve the perfect look for your product.

Combined with a choice of super-twisted nematic display (STN) or Film Compensated STN (FSTN). These display types are popular due to their low power consumption and relative cost when compared with other display technologies.

Displaytech also offer a choice of reflective and transflective displays. Transflective displays offer a greater contrast in varied light conditions so are most suited to applications where your product may be used both indoors and outdoors.

Reflective = No Backlight
Transflective = With Backlight

Available in a range of sizes; 16 x 2, 16 x 4, 20 x 2, 20 x 4 and 24 x 2 (characters by rows).

- Parallel interface
- KS0066U controller (COG versions use the NT603H controller)
- -10 °C to 60 °C operating temperature range

16 x 1 Character LCD Displays
Displaytech 161A-BA-BC Reflective STN Yellow on Green - No Backlight (RS 532-6335)
Displaytech 161A-BC-BC Transflective STN Yellow on Green (RS 532-6341)

16 x 2 Character LCD Displays
Displaytech 162B-BC-BC Transflective STN Yellow on Green (RS 532-6379)
Displaytech 162C-BC-BC Transflective STN Yellow on Green (RS 532-6414)
Displaytech 162C-BA-BC Reflective STN on Green - No Backlight (RS 532-6408)
Displaytech 162COG-BA-BC Reflective STN Yellow on Green - No Backlight (RS 532-6559)
Displaytech 162D-BA-BC Reflective STN Yellow on Green (RS 532-6470)
Displaytech 162D-BC-BC Transflective STN Yellow on Green (RS 532-6486)
Displaytech 162B-CC-BC-3LP Transflective STN White on Black (RS 532-6385)
Displaytech 162C-CC-BC-3LP Transflective STN White on Blue (RS 532-6436)
Displaytech 162D-CC-BC-3LP Transflective STN White on Black (RS 532-6492)
Displaytech 162F-CC-BC-3LP Transflective STN White on Blue (RS 532-6521)
Displaytech 162C-GC-BC-3LP Transflective STN White on Black (RS 532-6442)
Displaytech 162F-FC-BC-3LP Transflective FSTN Yellow on Green (RS 532-6537)

16 x 1 Character LCD Displays
Displaytech 161A-BA-BC Reflective STN Yellow on Green - No Backlight (RS 532-6335)
Displaytech 161A-BC-BC Transflective STN Yellow on Green (RS 532-6341)

16 x 2 Character LCD Displays
Displaytech 162B-BC-BC Transflective STN Yellow on Green (RS 532-6379)
Displaytech 162C-BC-BC Transflective STN Yellow on Green (RS 532-6414)
Displaytech 162C-BA-BC Reflective STN on Green - No Backlight (RS 532-6408)
Displaytech 162COG-BA-BC Reflective STN Yellow on Green - No Backlight (RS 532-6559)
Displaytech 162D-BA-BC Reflective STN Yellow on Green (RS 532-6470)
Displaytech 162D-BC-BC Transflective STN Yellow on Green (RS 532-6486)
Displaytech 162B-CC-BC-3LP Transflective STN White on Black (RS 532-6385)
Displaytech 162C-CC-BC-3LP Transflective STN White on Blue (RS 532-6436)
Displaytech 162D-CC-BC-3LP Transflective STN White on Black (RS 532-6492)
Displaytech 162F-CC-BC-3LP Transflective STN White on Blue (RS 532-6521)
Displaytech 162C-GC-BC-3LP Transflective STN White on Black (RS 532-6442)
Displaytech 162F-FC-BC-3LP Transflective FSTN Yellow on Green (RS 532-6537)

Caution

- Observe ANTISTATIC precautions when storing or handling these modules.
- Reverse polarity connection to the module will cause irreparable damage.
Alphanumeric LCD Displays

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Alphanumeric LCD Displays

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Displaytech
	Display Type	Alphanumeric
	Character Matrix	2 Rows by 20 Characters
	Characters per Row	20
	Character Rows	2
	Character Height	5.6mm
	Character Width	3.2mm
	Viewing Area Height	19.8mm
	Viewing Area Dimensions	85 x 20mm
	Viewing Area Width	85mm
	External Depth	11mm
	Background Colour	Green
	Illumination Colour	Yellow
	External Dimensions	166 x 11 x 37mm
	External Height	37mm
	External Width	166mm
	Controller Type	ST7066U
	Display Matrix Technology	STN
	Display Mode	Reflective
	Maximum Operating Temperature	+60°C
	Minimum Operating Temperature	-10°C
	Operating Temperature Range	-10 → +60°C

	모두 선택
	브랜드 Displaytech
	Display Type Alphanumeric
	Character Matrix 2 Rows by 20 Characters
	Characters per Row 20
	Character Rows 2
	Character Height 5.6mm
	Character Width 3.2mm
	Viewing Area Height 19.8mm
	Viewing Area Dimensions 85 x 20mm
	Viewing Area Width 85mm
	External Depth 11mm
	Background Colour Green
	Illumination Colour Yellow
	External Dimensions 166 x 11 x 37mm
	External Height 37mm
	External Width 166mm
	Controller Type ST7066U
	Display Matrix Technology STN
	Display Mode Reflective
	Maximum Operating Temperature +60°C
	Minimum Operating Temperature -10°C
	Operating Temperature Range -10 → +60°C
