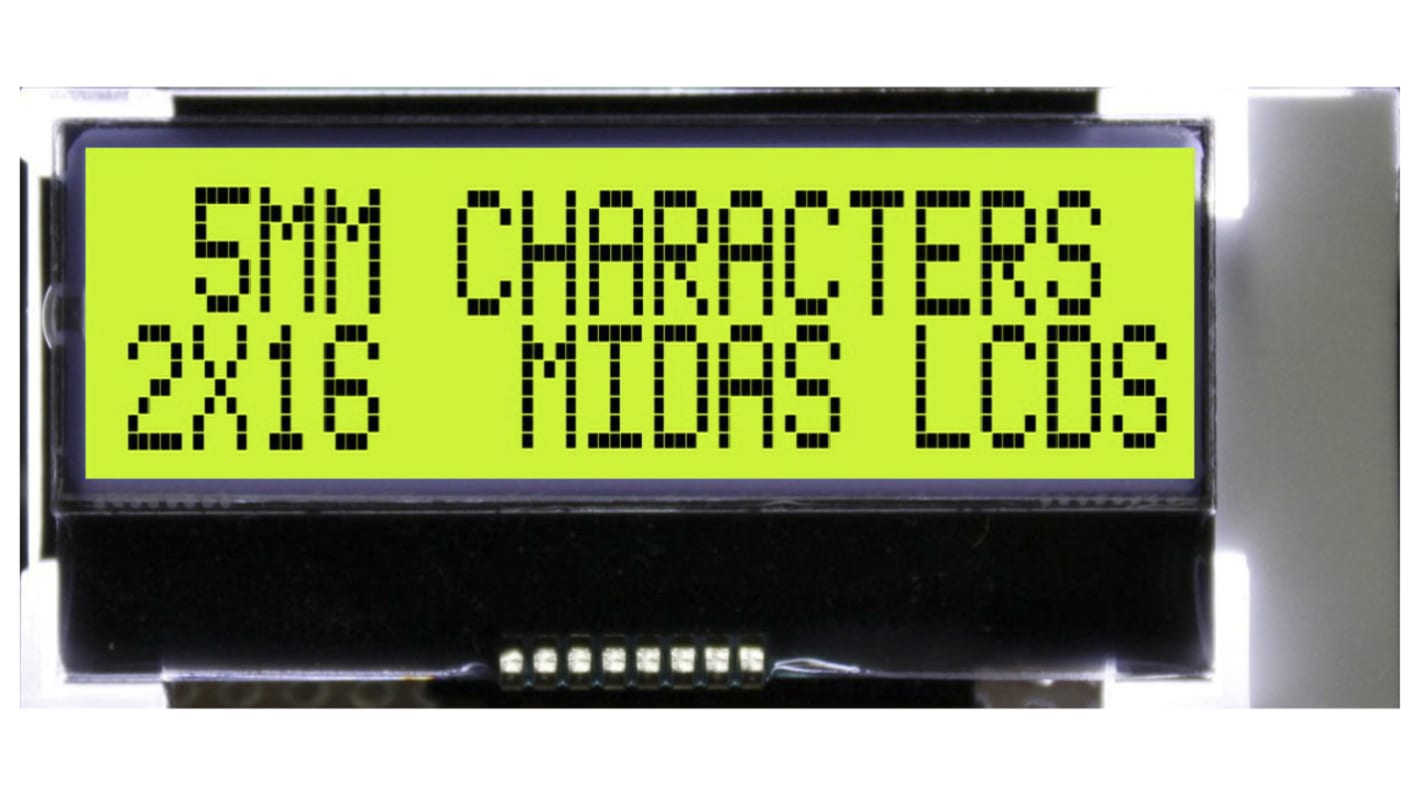

Midas MCCOG21605B6W-SPTLYI Alphanumeric LCD Display Yellow-Green, 2 Rows by 16 Characters, Transflective
- RS 제품 번호:
- 171-1673
- 제조사 부품 번호:
- MCCOG21605B6W-SPTLYI
- 제조업체:
- Midas
대량 구매 할인 기용 가능
가격 개당가격(50개가 1박스안에)**
₩16,451.88
일시 품절-다음 입고 날짜는 30/10/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 | Per Box** |
---|---|---|
50 - 200 | ₩16,451.88 | ₩822,575.20 |
250 + | ₩16,122.88 | ₩806,125.20 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 171-1673
- 제조사 부품 번호:
- MCCOG21605B6W-SPTLYI
- 제조업체:
- Midas
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
---|---|---|
브랜드 | Midas | |
Display Type | Alphanumeric | |
Character Matrix | 2 Rows by 16 Characters | |
Character Rows | 2 | |
Characters per Row | 16 | |
Character Width | 2mm | |
Character Height | 3.8mm | |
Viewing Area Dimensions | 40 x 10mm | |
Viewing Area Width | 40mm | |
Viewing Area Height | 10mm | |
External Depth | 9.3mm | |
Background Colour | Yellow-Green | |
Backlight Type | LED | |
External Height | 20.7mm | |
External Width | 51.2mm | |
External Dimensions | 51.2 x 20.7 x 9.3mm | |
Display Matrix Technology | STN | |
Display Mode | Transflective | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -20°C | |
Operating Temperature Range | -20 → +70°C | |
Driver Mounting | COG | |
