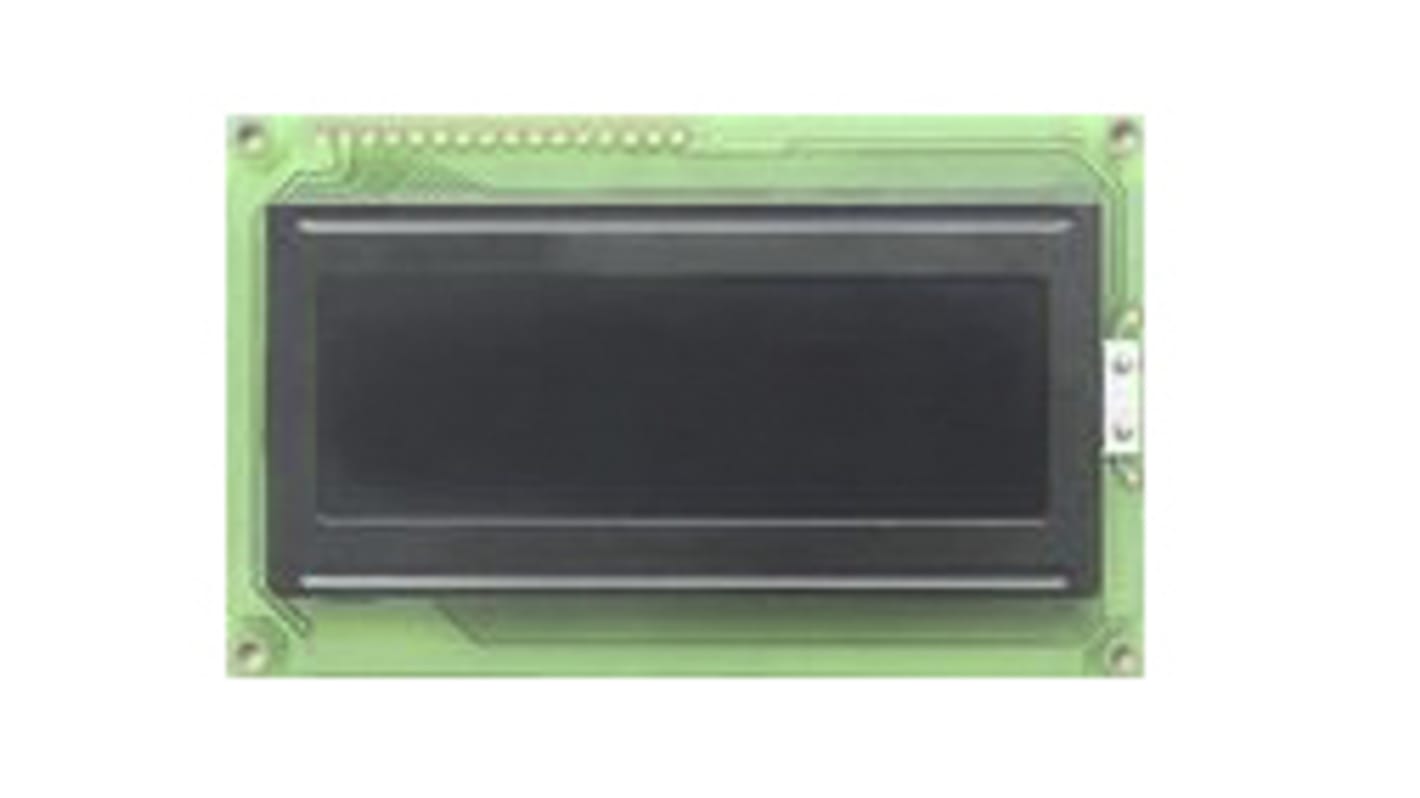

Fordata FC2004B01-RNNYBW-66SE FC LCD LCD Graphic Display, Green, Yellow on, 4 Rows by 20 Characters, Reflective
- RS 제품 번호:
- 163-1916
- 제조사 부품 번호:
- FC2004B01-RNNYBW-66SE
- 제조업체:
- Fordata
대량 구매 할인 기용 가능
가격 개당가격(45개가 1박스안에)**
₩45,400.12
일시 품절-다음 입고 날짜는 02/10/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 | Per Box** |
---|---|---|
45 - 45 | ₩45,400.12 | ₩2,043,014.80 |
90 - 405 | ₩44,264.60 | ₩1,991,940.84 |
450 + | ₩39,839.08 | ₩1,792,741.68 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 163-1916
- 제조사 부품 번호:
- FC2004B01-RNNYBW-66SE
- 제조업체:
- Fordata
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
---|---|---|
브랜드 | Fordata | |
Display Type | LCD | |
Character Matrix | 4 Rows by 20 Characters | |
Character Rows | 4 | |
Characters per Row | 20 | |
Character Height | 5.4mm | |
Character Width | 3mm | |
Viewing Area Width | 76mm | |
Viewing Area Dimensions | 76 x 25mm | |
Viewing Area Height | 25.2mm | |
External Depth | 9.5mm | |
Illumination Colour | Green, Yellow | |
External Height | 60mm | |
External Dimensions | 98 x 9.5 x 60mm | |
External Width | 98mm | |
Controller Type | SPLC780D | |
Display Matrix Technology | STN | |
Display Mode | Reflective | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -20°C | |
Voltage Rating | 5.5V | |
Operating Temperature Range | -20 → +70°C | |
Current Rating | 5mA | |
Driver Mounting | COB | |
Series | FC | |
