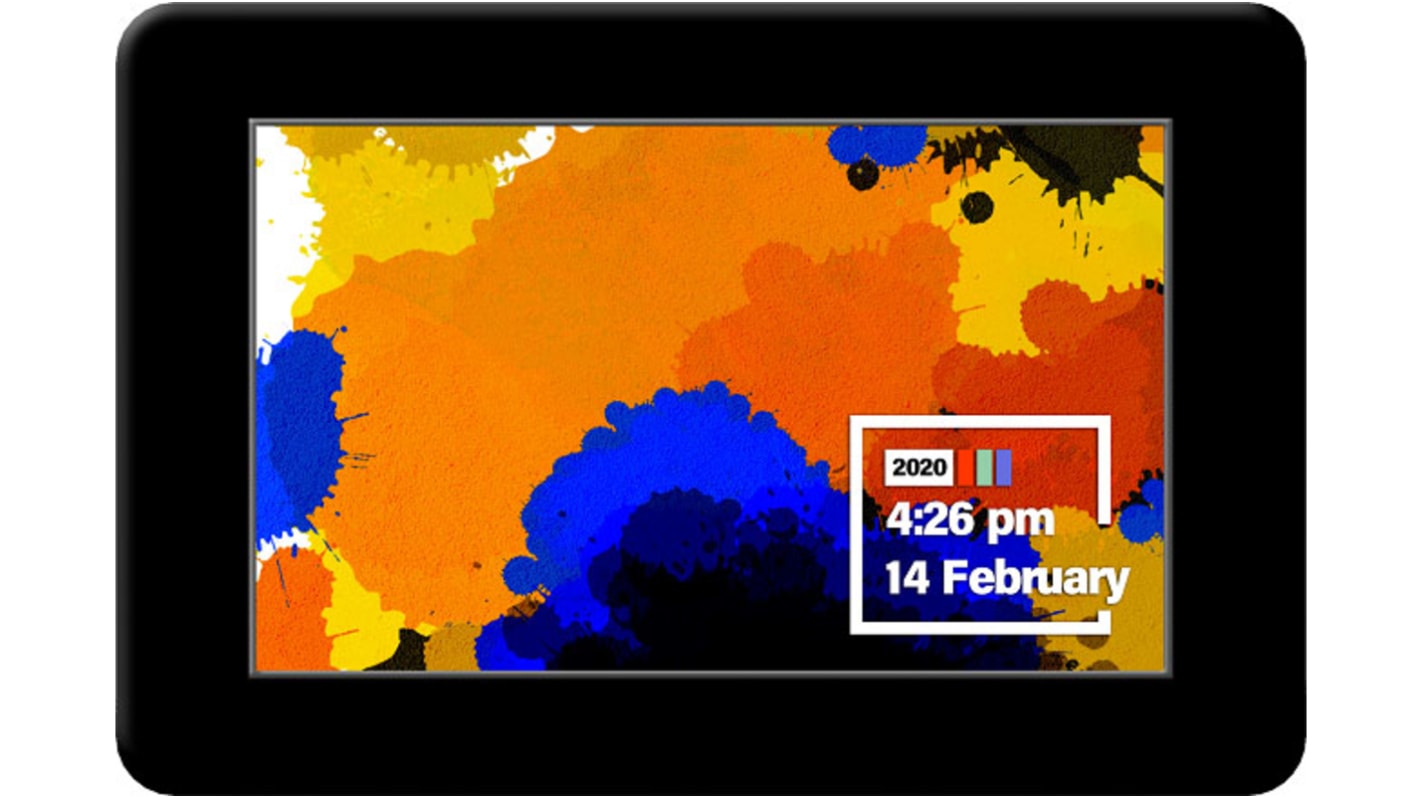

4D Systems gen4-FT813-70CTP-CLB TFT LCD Colour Display / Touch Screen, 7in WVGA, 800 x 480pixels

The gen4-FT813-70CTP-CLB display from 4D Systems is an embedded SPI display. This robust display features a capacitive touch panel with cover glass and integrated FTDI FT813 video engine. With the ability to enable an SPI host to be connected, this powerful SPI display provides a powerful range of graphics features to the host utilising the on board FTDI FT81x Video Engine.

In addition to the capacitive touch screen and integrated video engine, the gen4-FT813-70CTP-CLB display also features a TFT LCD display and audio with amplifier enabling to provide a versatile four-in-one solution. With a range of features built directly into the display, the gen4-FT813-70CTP-CLB from 4D Systems is suitable for use in a range of applications.

For targeting high quality graphics displays including Widget support, the FT813 video engine runs the FTDI version of EVE (Embedded Video Engine). As a result, the host processer and a range of graphics features are offloaded providing a high quality and efficient display. All software support for the FT813 is provided directly from FTDI. Hardware support is provided by 4D Systems.

7.0" LCD TFT Screen with an integrated Capacitive Touch Panel and Cover Glass
800x480 Resolution
Mono PWM Audio output with separate amplifier enable, designed to be connected directly to a simple filter and external amplifier circuit
On board FTDI FT813 Video Engine
SPI Interface to Host Processor/Controller, up to 30Mhz (Mode 0 only)
Programmable Interrupt Controller, with dedicate Interrupt pin to Host
64 voice polyphonic sound synthesizer
PWM dimming control for LCD backlight
Power mode control to put the FT813 into sleep and standby modes, with dedicated power down pin to Host
JPEG and motion-JPEG decode
Single 5.0V supply
3.3V SPI Bus, Audio Output and amplifier Enable, along with GPIO (not 5V tolerant)
Module dimensions: 190.10 x 121.90 x 8.20 mm
Display Active Area: 153.00 x 85.63mm
Cover Lens Bezel with 3M adhesive for mounting
RoHS and CE compliant

The versatile four-in-one features of the 4D Systems 7 inch embedded SPI touch screen display make it ideal for use in a wide range of applications. Whether it’s high quality graphic displays or audio-visual applications, the gen4-FT813-70CTP-CLB from 4D Systems provides a versatile solution.

gen4-FT813-70CTP-CLB - 7.0" LCD TFT Display with FT813 controller
30-way 150mm FFC Cable
gen4-Breakout Board
