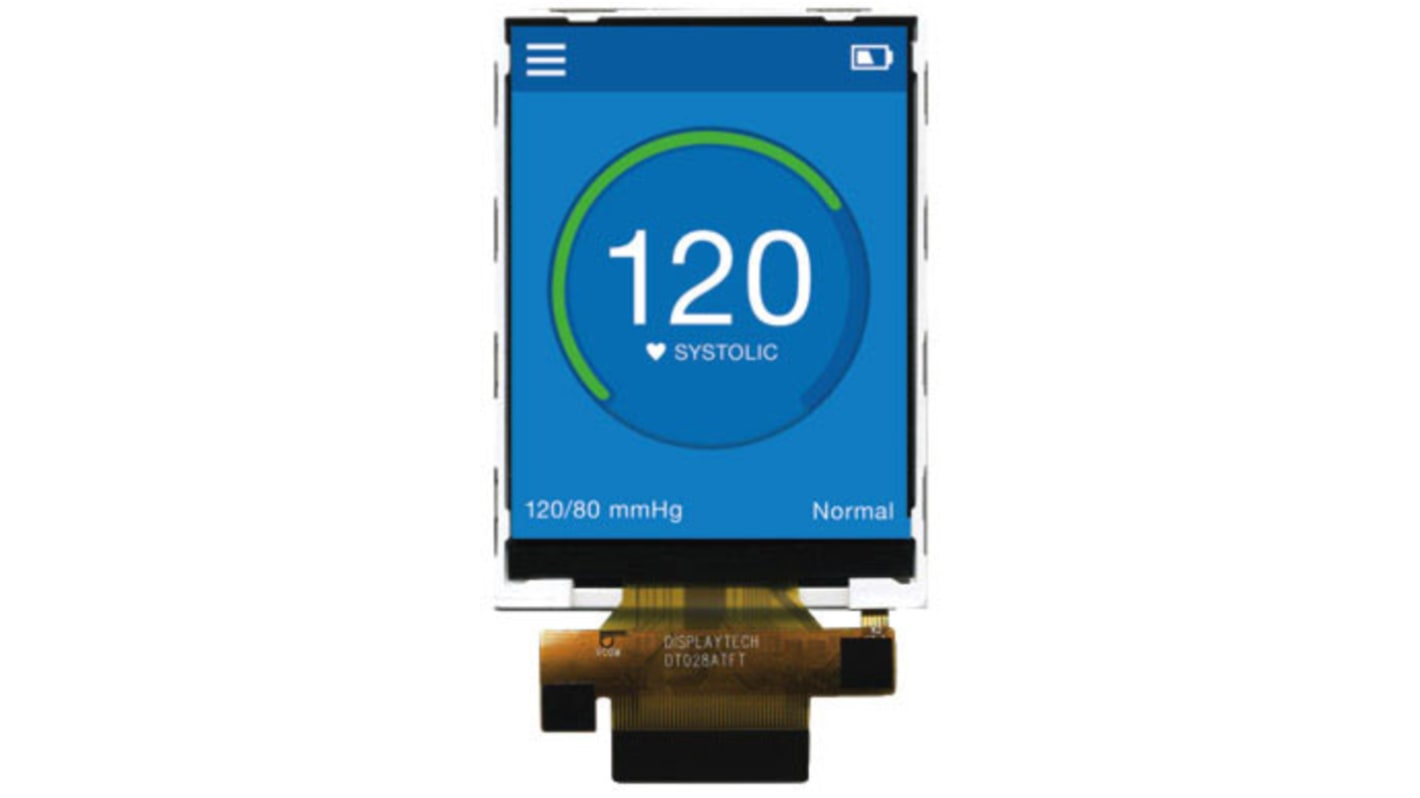

Displaytech DT028ATFT-TS TFT LCD Colour Display / Touch Screen, 2.8in QVGA, 240 x 320pixels

모든 LCD Colour Displays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Box of 225 units)*

₩10,296,243.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 7월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Box*
225 - 225₩45,761.08₩10,296,199.76
450 - 675₩44,616.16₩10,038,805.20
900 +₩43,929.96₩9,884,325.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
171-1715
제조사 부품 번호:
DT028ATFT-TS
제조업체:
Displaytech
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Displaytech

Diagonal Display Size

2.8in

Interface Type

Parallel, RGB

Resolution

240 x 320pixels

Touch Screen

Yes

Viewing Area Dimensions

58 x 43mm

Supply Voltage

-0.3 → +4.6 V dc

Touch Screen Type

Resistive

Backlight Type

LED

Display Mode

Transmissive

AC or DC Input Voltage

dc

Dimensions

69.2 x 50 x 4.55mm

Display Matrix Technology

TFT

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

Graphics Array Type

QVGA

Brightness

200cd/m²

Aspect Ratio

4:3

Operating Temperature Range

-20 → +70°C

Contrast Ratio

500:1

Number of Colours

262,144

Height

69.2mm

Viewing Area Height

57.6mm

Width

50mm

Viewing Area Width

43.2mm

Response Time

25ms

Depth

4.55mm

COO (Country of Origin):
CN

Displaytech TFT LCD Display Modules


Displaytech's TFT LCD display modules are designed to combine performance with value. These reliable TFT LCD modules are suitable for a wide variety of industrial, medical and consumer applications. The driver ICs are mounted directly on to the glass and are as follows:
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.

• Transmissive TFT LCD display modules
• LED backlight
• DC voltage input
• Connection to drive the display module is via FPC (Flexible Printed Circuit)
• Operating temperature range: -20 to +70°C
• Viewing direction: 6 o’clock (DT035TFT and DT035TFT-TS are: 12 o’clock)
• Touch screen versions come fitted with a 4 wire resistive touch screen

Note

Suitable 45-way, 0.5mm pitch, 0.3mm thickness (with stiffener) FFC/FPC connectors for use with these Displaytech TFT LCD display modules are: 738-8950, 772-7027 or 772-6756.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.



Displaytech Colour LCD Graphic Dispalys
