TE Connectivity Insertion & Extraction Tool, AMPLIMITE Series, Crimp Contact, Contact size 20

Size 20 standard contacts for use in Sub-D enclosures from the HD series.
Supplied in bulk in packs of 500.
A crimping tool and a pusher tool are also available.

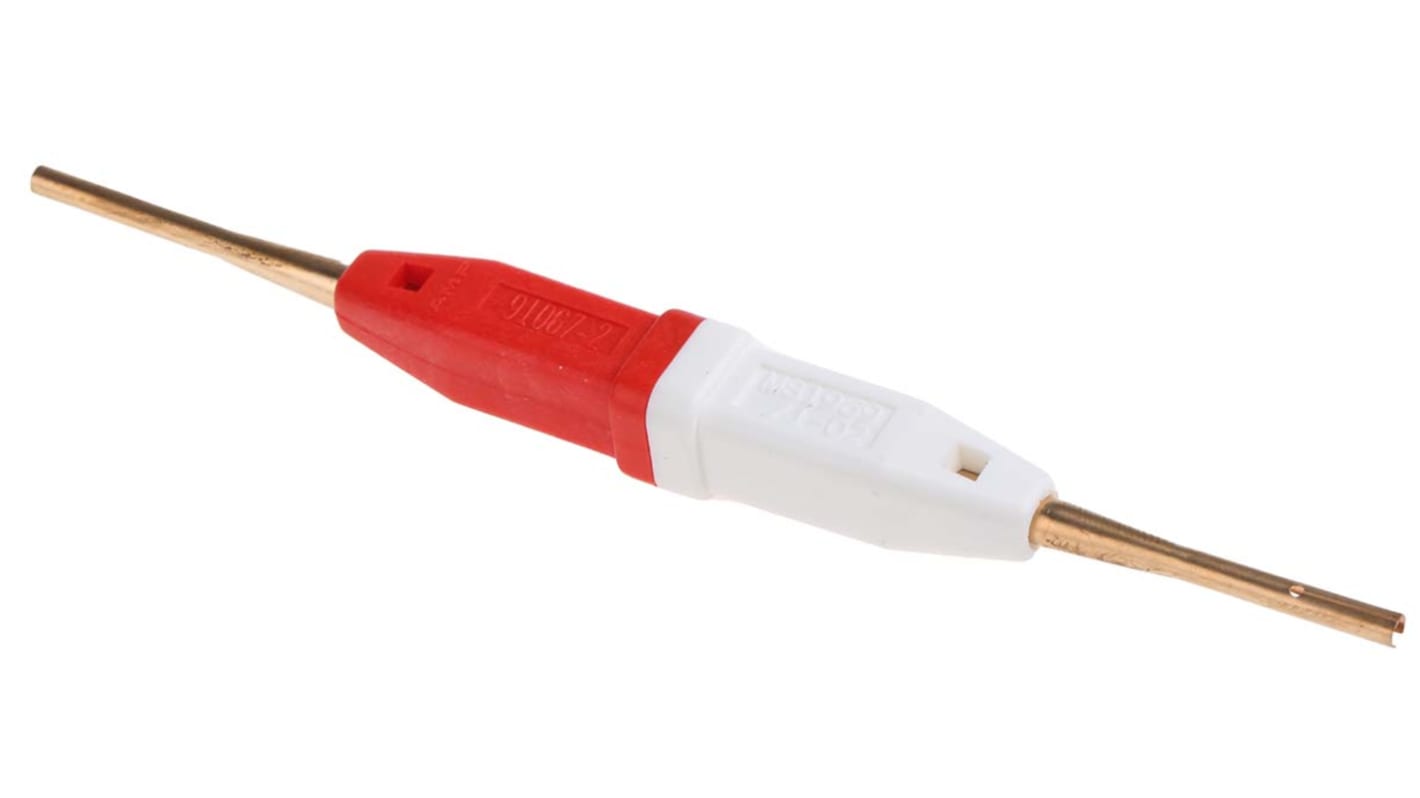

The TE Connectivity 91067-2 is an insertion/extraction tool. This tool is for HD-20, It is colour coded to determine the insertion/extraction tool.
This tool can be used for both insertion and extraction of crimp contacts, allowing you to easily insert or extract a terminal from a housing, without causing any damage. With a combination of both functions, you don’t have to worry about changing the tip type for the different operations, saving you valuable time.

Features
• Insertion and extraction
• Compatible contacts: HD-20
• High quality

How to replace the tip:
To replace an insertion and extraction tip, you will need to firstly remove the old tip using the hex wrench provided with the tool. Insert the plug into the wide end of the tip and place it into the tool handle. The handle comes with a hex wrench which tightens and secures the tip into the handle. Then you’re ready to go.

TE Connectivity AMPLIMITE D-Subminiature Connectors
