- RS 제품 번호:
- 177-4807
- 제조사 부품 번호:
- THB.391.R4A
- 제조업체:
- Techno
- RS 제품 번호:
- 177-4807
- 제조사 부품 번호:
- THB.391.R4A
- 제조업체:
- Techno
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- IT
제품 세부 사항

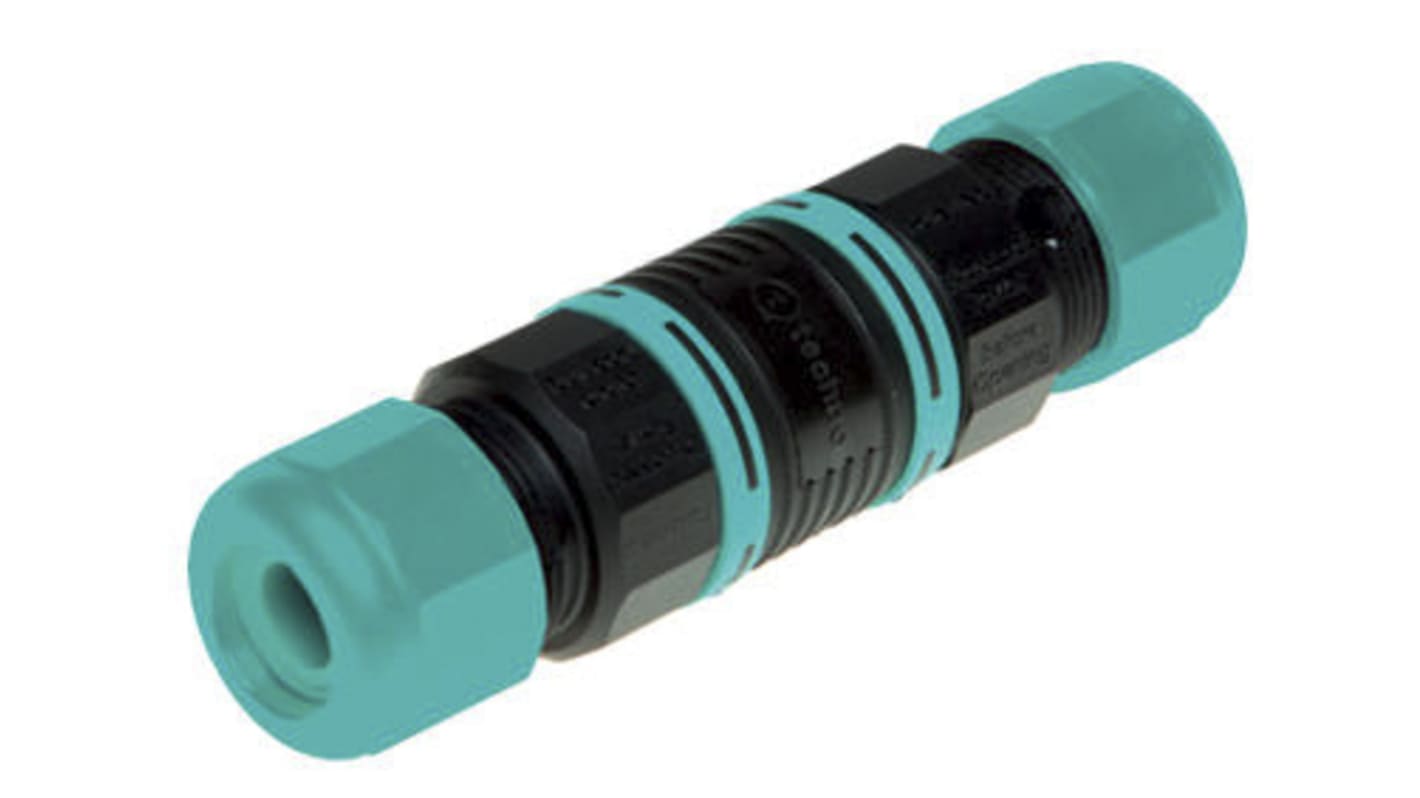

Techno Mini Connector
The Techno TH391 series mini junction connector has an electrical rating of 450VAC with 17.5A current. This is a modular, screw-type electrical connector used to connect two or more wires. The operating temperature ranges between -40°C and 125°C. It has black (plastic components) and green (rubber components) colours.
Features and Benefits
Anti-condensation heaters are used to eliminate water vapour
Cable size is between 0.5mm² and 4mm²
Clip mount type
Copper zinc alloy is used as contact body material
Highly reliable
Number of pole is 4
Reusable and re-accessible
Cable size is between 0.5mm² and 4mm²
Clip mount type
Copper zinc alloy is used as contact body material
Highly reliable
Number of pole is 4
Reusable and re-accessible
Applications
Sound equipment to electrical installations
Surge protectors
Commercial sites
Electrical wiring to connect switches
Surge protectors
Commercial sites
Electrical wiring to connect switches
Certifications
IP68 rated
TH392 CA0205752
CE-TH392
TH392 CA0205251
TH392 CA0205752
CE-TH392
TH392 CA0205251
사양
속성 | 값 |
---|---|
Number of Contacts | 4 |
Mounting Type | In-line |
Connector Size | Miniature |
Termination Method | Screw |
IP Rating | IP68 |
Current Rating | 17.5A |
Series | THB |
Voltage Rating | 450 V ac |
Contact Plating | Nickel |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -40°C |
Contact Material | CuZn |
