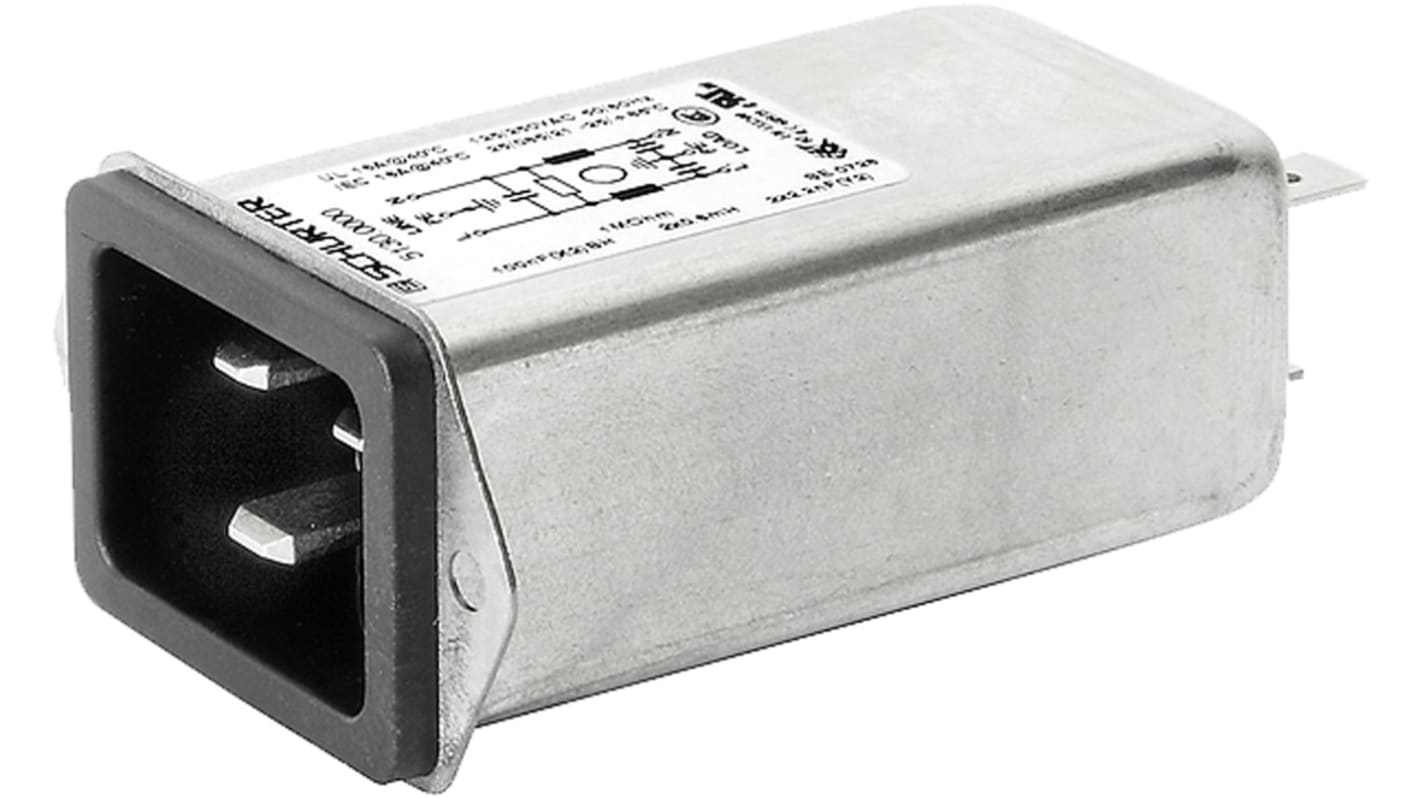

Schurter 16A, 250 V ac Male Screw Filtered IEC Connector 5130.0000.21, Quick Connect

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 IEC Filters 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩26,658.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 15일 부터 26 개 단위 배송
  • 추가로 2025년 12월 22일 부터 40 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당
한팩당
1 - 4₩26,658.40
5 - 9₩26,075.60
10 +₩25,511.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
892-8707
제조 부품 번호:
5130.0000.21
제조업체:
Schurter
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Schurter

Gender

Male

Switch Type

None

Termination Method

Quick Connect

Current Rating

16A

Voltage Rating

250 V ac

Mounting Type

Screw

Operating Frequency

50 Hz, 60 Hz

IEC Connector Type

C20

Width

50.6mm

Depth

67.5mm

Height

30.6mm

COO (Country of Origin):
RO

V-Lock Series IEC Inlet/Outlet Connectors and Filters


Schurter V-Lock series panel mounted connectors, offered in: J and C20 IEC connector types, with or without filtering or switch. The V-lock system is designed to prevent accidental disconnection, the yellow coloured catch mechanism found on the cable assembly is easily released from its inlet connection by depressing the built in lever, eliminating the requirements for additional hardware, reducing costs, and installation time. Applications for these RoHS complaint V-Lock panel mount connectors include portable medical devices, laboratory equipment, telecommunication and datacom equipment, and audio equipment. Suitable for appliances with protection class I.

C19 and I type IEC connection
6.3x0.8mm quick connect terminals
RoHS compliant
Time saving installation
Up to 200 N retention force when mated with V-Lock cable assembly
Temperature range -25 to +70° C

Note

Also accepts standard C19, and I type IEC connectors where applicable.

Standards

IEC 61140, IEC 60320

Approvals

UL, CCC, VDE
