RS PRO 10A, 250 V ac Socket Chassis Mount IEC Inlet Filter, Faston 2 Fuse
- RS 제품 번호:
- 278-0336
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩40,519.64
재고있음
- 81 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩40,519.64 |
| 5 - 9 | ₩36,475.76 |
| 10 - 24 | ₩32,819.16 |
| 25 - 49 | ₩29,529.16 |
| 50 + | ₩26,583.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 278-0336
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Gender | Socket | |
| Number of Fuses | 2 | |
| Termination Method | Faston | |
| Current Rating | 10A | |
| Voltage Rating | 250 V ac | |
| Mounting Type | Chassis Mount | |
| Operating Frequency | 50 → 60Hz | |
| Width | 32.5mm | |
| Operating Temperature Range | -25 → +85°C | |
| Depth | 49.5mm | |
| Height | 28.2mm | |
| Dimensions | 49.5 x 32.5 x 28.2mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Gender Socket | ||
Number of Fuses 2 | ||
Termination Method Faston | ||
Current Rating 10A | ||
Voltage Rating 250 V ac | ||
Mounting Type Chassis Mount | ||
Operating Frequency 50 → 60Hz | ||
Width 32.5mm | ||
Operating Temperature Range -25 → +85°C | ||
Depth 49.5mm | ||
Height 28.2mm | ||
Dimensions 49.5 x 32.5 x 28.2mm | ||
- COO (Country of Origin):
- CN

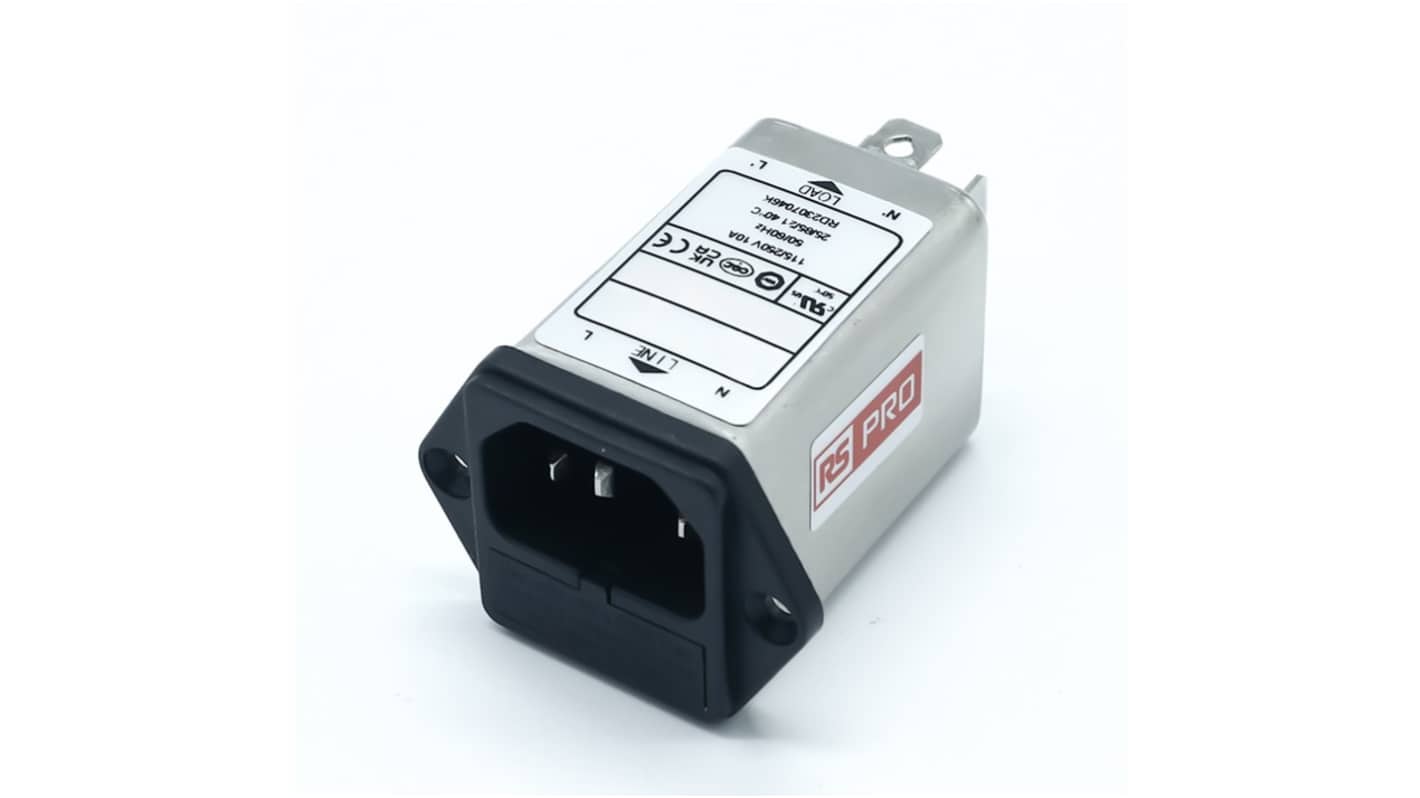

RS PRO 10A Compact IEC EMI Filter (6.35 x 0.8mm)
A high quality EMI filter with an IEC inlet for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment.
Designed for chassis mounting and built to a compact size of 62 x 28 x 32.2mm the power line filter is ideal for areas with limited space and is easily connected using the 6.3 x 0.8mm fast on terminals.
Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and specially designed for use with house hold appliances.
Also suitable for use with general electrical and electronic equipment, sensitive medical equipment, power supplies and communication equipment.
Features and Benefits
Power line EMI filter
IEC inlet
Current rated to 10A
Inductance of 2 x 0.3mH
Capacitance of 2200pF
Hipot Rating 2250Vdc (line to ground), 1450Vdc (line to line)
IP40 rated
Dimensions of 62 x 28 x 32.2mm
36mm between mounting holes
6.3 x 0.8mm Fast on terminals
Weight of 50g
Standards and Approvals: UL, TUV, CQC, CE, UKCA, UL EN 60939, UL1283; CSA C22.2 No.8; GB/T 15287; GB/T 15288-1994
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Standards
UL E542953, UL 1283
