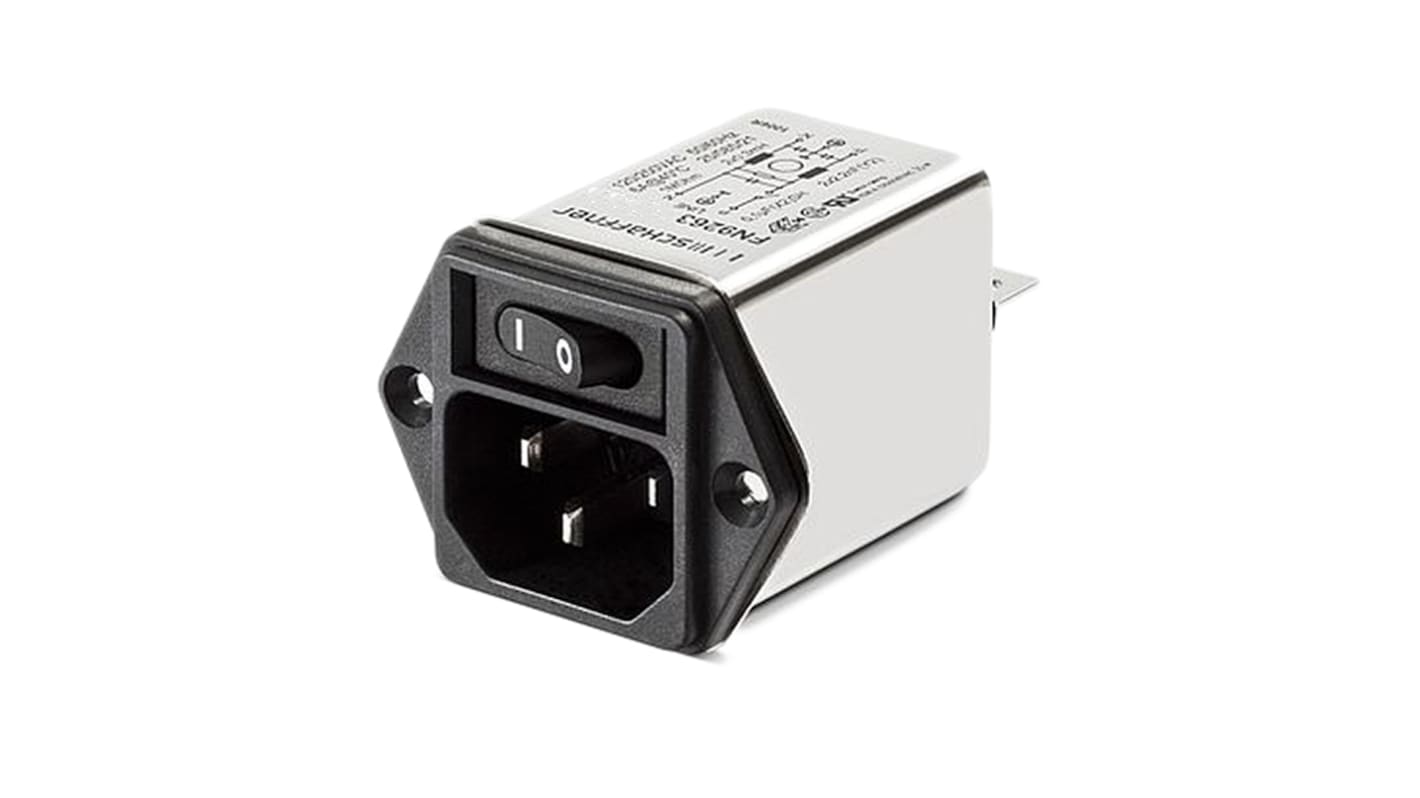

Schaffner 10A, 250 V ac Male Flange Mount IEC Inlet Filter 1 Pole FN9263-10-06, Faston None Fuse
- RS 재고 번호:
- 170-5217
- 제조 부품 번호:
- FN9263-10-06
- 제조업체:
- Schaffner
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 Box of 60 units)*
₩1,679,366.40
일시적 품절
- 2026년 3월 31일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 | Per Box* |
|---|---|---|
| 60 - 240 | ₩27,989.44 | ₩1,679,400.24 |
| 300 + | ₩27,429.20 | ₩1,645,808.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 170-5217
- 제조 부품 번호:
- FN9263-10-06
- 제조업체:
- Schaffner
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schaffner | |
| Gender | Male | |
| Number of Fuses | None | |
| Switch Type | 1 Pole | |
| Termination Method | Faston | |
| Current Rating | 10A | |
| Voltage Rating | 250 V ac | |
| Mounting Type | Flange Mount | |
| Operating Frequency | 50 Hz, 60 Hz | |
| IEC Connector Type | C14 | |
| Width | 35mm | |
| Depth | 60.3mm | |
| Height | 46mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schaffner | ||
Gender Male | ||
Number of Fuses None | ||
Switch Type 1 Pole | ||
Termination Method Faston | ||
Current Rating 10A | ||
Voltage Rating 250 V ac | ||
Mounting Type Flange Mount | ||
Operating Frequency 50 Hz, 60 Hz | ||
IEC Connector Type C14 | ||
Width 35mm | ||
Depth 60.3mm | ||
Height 46mm | ||
FN9263 Series IEC Inlet Filter
The FN9263 power entry module combines an IEC inlet, mains filter with excellent filter attenuation and a mains switch in a small form factor. A wide selection on amperage ratings and mounting possibilities are designed to offer you the desired solution.
Can be used in a wide range of applications such as electrical & electronic equipment, consumer goods, household equipment, medical equipment, electronic data processing equipment, office automation & datacom equipment.
Can be used in a wide range of applications such as electrical & electronic equipment, consumer goods, household equipment, medical equipment, electronic data processing equipment, office automation & datacom equipment.
Exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour
Rear/front or snap-in mounting
Small compact housing fitting 1U rack applications
Versions up to 10A are available with 1 pole rocker switch
Suitable for noisy applications requiring high filter performance
Rear/front or snap-in mounting
Small compact housing fitting 1U rack applications
Versions up to 10A are available with 1 pole rocker switch
Suitable for noisy applications requiring high filter performance
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Schaffner FN92XX & FN32X Series
These high performance filters contain an additional capacitor to give a class X2 capacitor between live and neutral at both the filter input and output.
