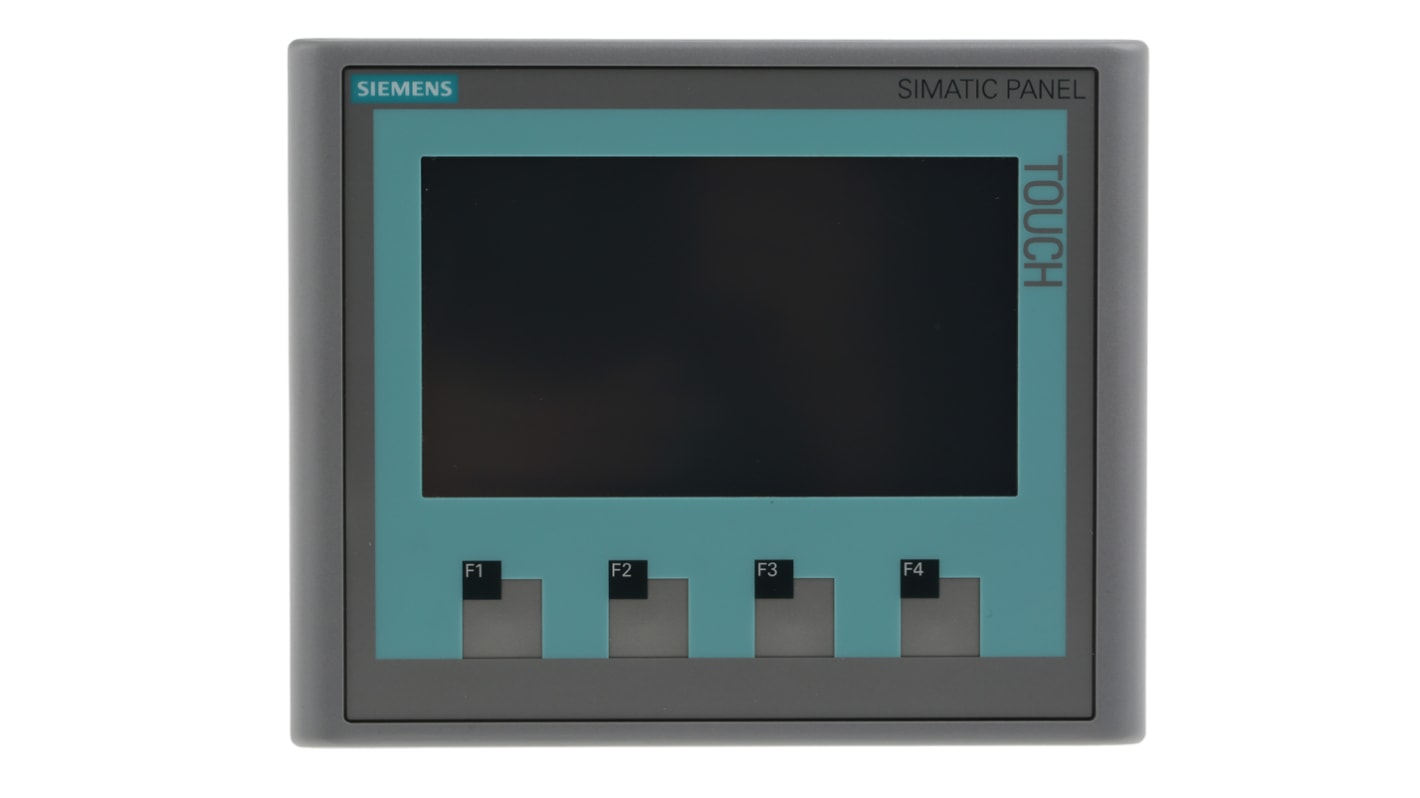

Siemens Backlit TFT HMI Panel, 4.3 in Display, 24 V dc Supply, 116 x 140 x 33 mm

This range offers panels with 4, 6, 7 and 10 inch displays, keypad or touch controls, and is delivered with a 15 inch basic panel touch screen. Every SIMATIC Basic Panel is designed with the IP65 protection class and is ideal for simple visualization tasks, even in harsh environments. Additional advantages include integrated software functions such as a reporting system, recipe management, or graph functions.

All devices of the SIMATIC HMI Basic Panel family are characterized by the same set of basic functions regardless of the chosen size of the device. For technical specification list below.

The ideal entry level series of 3.8 to 15 inch for operating and monitoring simple machines and plants
Clear process representation thanks to use of pixel-graphics displays.
Intuitive operation using Touch and tactile function keys.
Equipped with all the necessary basic functions such as alarm logging, recipe management, plots, vector graphics, and language switching.
It can be configured by using WinCC flexible Compact or alternatively the HMI configuration software of the STEP7 Basic Engineering Software for S7-1200.
Simple connection to the controller via integral Ethernet interface or separate version with RS485/422

The Ethernet cable and MPI adaptor are only supplied in certain cases- Ethernet cable (only for PN screens) MPI cable (only for DP devices) for downloading and test purposes. However, these are not supplied and must be purchased separately.

The Ethernet cable and MPI adaptor are only supplied in certain cases- Ethernet cable (only for PN screens) MPI cable (only for DP devices) for downloading and test purposes. However, these are not supplied and must be purchased separately.

The KTP400 offers high-end performance for various HMI applications in space restricted conditions.

4” TFT display with 256 colours
Touchscreen
480 x 272 pixels
Ethernet interface or 1 RS 485/422 interface
4 function keys with onscreen keyboard
Flash and RAM memory

The SIMATIC KTP400 can be used wherever compact machines and plants are controlled and monitored locally, such as in production, process and building automation.
