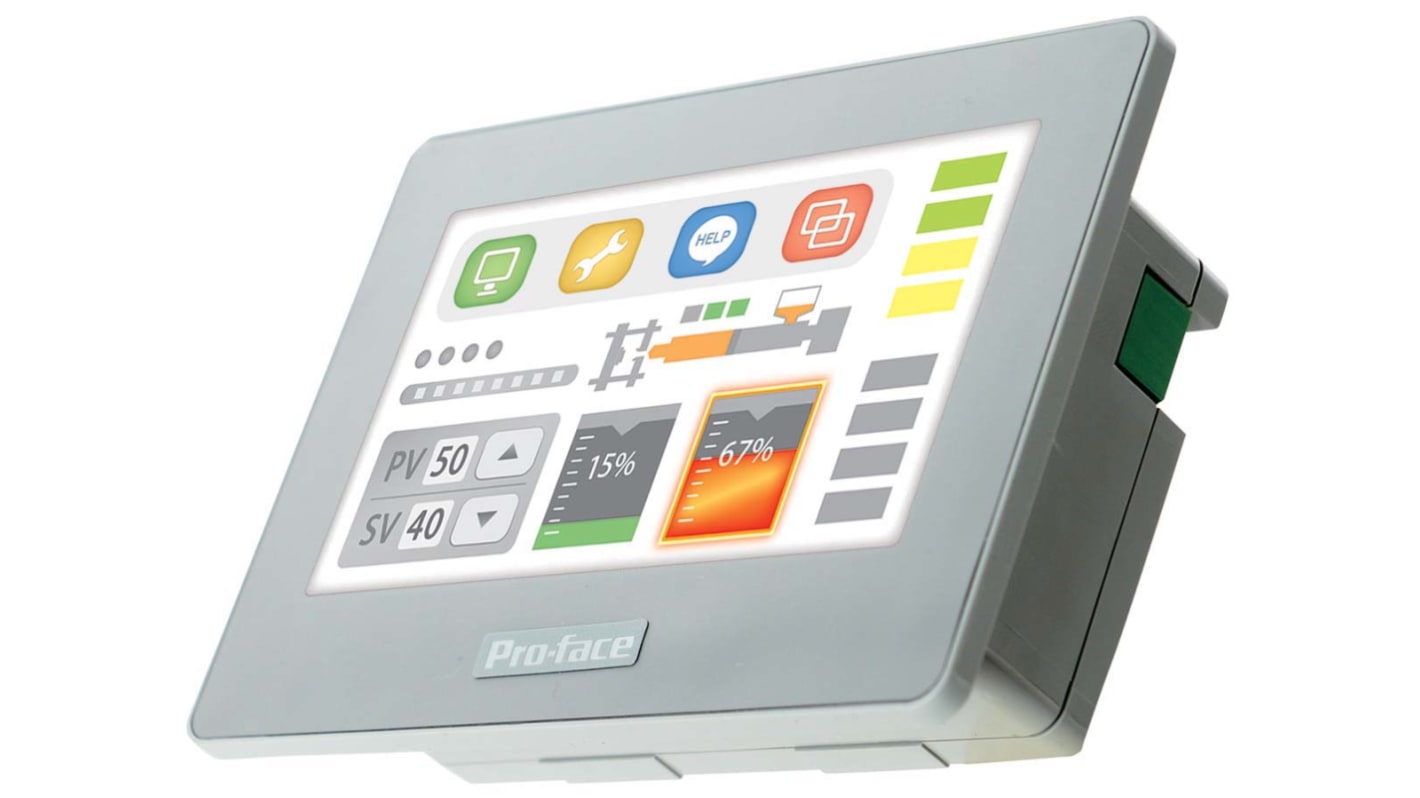

Pro-face GP4100 Series Touch Screen HMI - 4.3 in, TFT LCD Display, 480 x 272pixels
- RS 제품 번호:
- 144-4973
- 제조사 부품 번호:
- PFXGP4116T2D
- 제조업체:
- Pro-face
- RS 제품 번호:
- 144-4973
- 제조사 부품 번호:
- PFXGP4116T2D
- 제조업체:
- Pro-face
제정법과 컴플라이언스
제품 세부 사항
The Pro-face GP4100 series touch screen HMI has TFT LCD display, 480 x 272 pixels of display resolution and 4. 3in of display size.
White LED
50, 000 hours or more continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%
16 levels (Adjusted with touch panel)
50, 000 hours or more continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%
16 levels (Adjusted with touch panel)
사양
속성 | 값 |
|---|---|
| Manufacturer Series | GP4100 |
| Display Type | TFT LCD |
| Manufacturer Part No. | PFXGP4116T2D |
| Display Resolution | 480 x 272pixels |
| Number of Ports | 3 |
| Port Type | RS422, RS485, USB 2.0 (Mini-B), USB 2.0 (Type A) |
| Onboard Memory | 8 MB |
| Backlighting | Yes |
| Supply Voltage | 12 → 24 V dc |
| IP Rating | IP65F |
| Length | 124.9mm |
| Display Size | 4.3 in |
| Width | 38.8mm |
| Display Colour | Colour |
| Depth | 90.4mm |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Dimensions | 124.9 x 38.8 x 90.4 mm |
