Microchip Woodstar GestIC Gesture Tracking Development Kit
- RS 제품 번호:
- 871-1742
- 제조사 부품 번호:
- DM160226
- 제조업체:
- Microchip
모든 HMI Development Tools 열람하기
- RS 제품 번호:
- 871-1742
- 제조사 부품 번호:
- DM160226
- 제조업체:
- Microchip
제정법과 컴플라이언스
제품 세부 사항
MGC3030 Woodstar GestIC® Development Kit
The Microchip MGC3030 Woodstar Development Kit is a platform for evaluating and developing 3D gesture recognition systems. The kit operates as a complete reference design and features the MGC3030 3D gesture controller which incorporates Microchips GestIC® 3D gesture recognition technology.
The kit senses gestures like air wheels and flicks in the free space above the device through the detection of changes in a transmitted electrical field caused by interaction with the users hand. The spatial arrangement of the electrodes allows the MGC3030 controller to determine the centre of this electric field distortion, allowing the controller to interpret hand gestures.
Designing 3D gestures into applications is straightforward using the Aurea software development kit which provides direct access to the GestIC® Colibri gesture library hosted on the MGC3030 controller.
The kit senses gestures like air wheels and flicks in the free space above the device through the detection of changes in a transmitted electrical field caused by interaction with the users hand. The spatial arrangement of the electrodes allows the MGC3030 controller to determine the centre of this electric field distortion, allowing the controller to interpret hand gestures.
Designing 3D gestures into applications is straightforward using the Aurea software development kit which provides direct access to the GestIC® Colibri gesture library hosted on the MGC3030 controller.
Kit Contents
MGC3030 3D Gesture Controller Module
I2C to USB Bridge Module

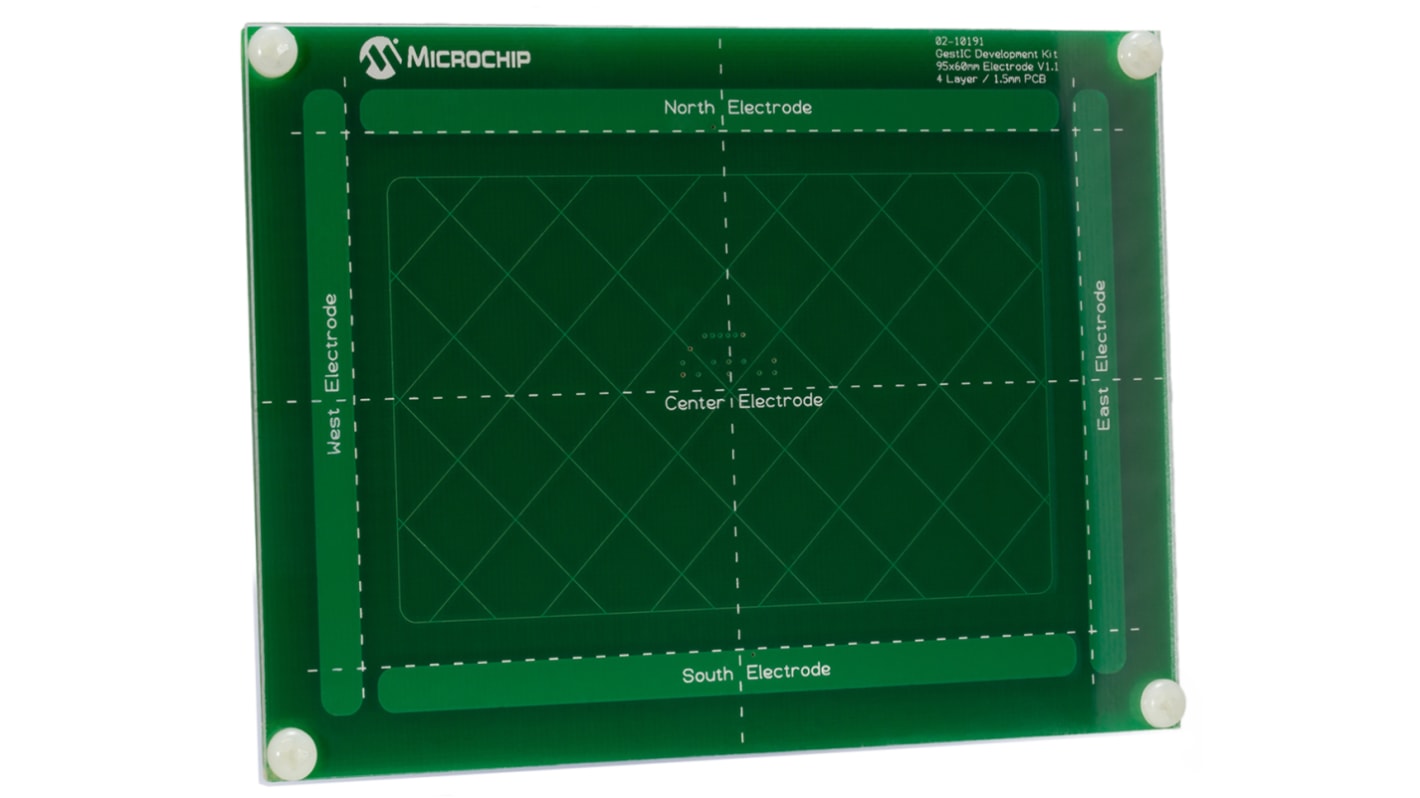

Reference Electrode (95x60 mm sensitive area)
USB Cable
I2C to USB Bridge Module
Reference Electrode (95x60 mm sensitive area)
USB Cable
Note
For applications requiring real time 3D tracking in addition to 3D gesture recognition the MGC3130 Hillstar GestIC Development Kit (Microchip part DM160218) should be considered.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Human Machine Interface (HMI), Microchip
사양
속성 | 값 |
Kit Classification | Development Kit |
User Interface | Gesture Tracking |
Kit Name | Woodstar GestIC |
