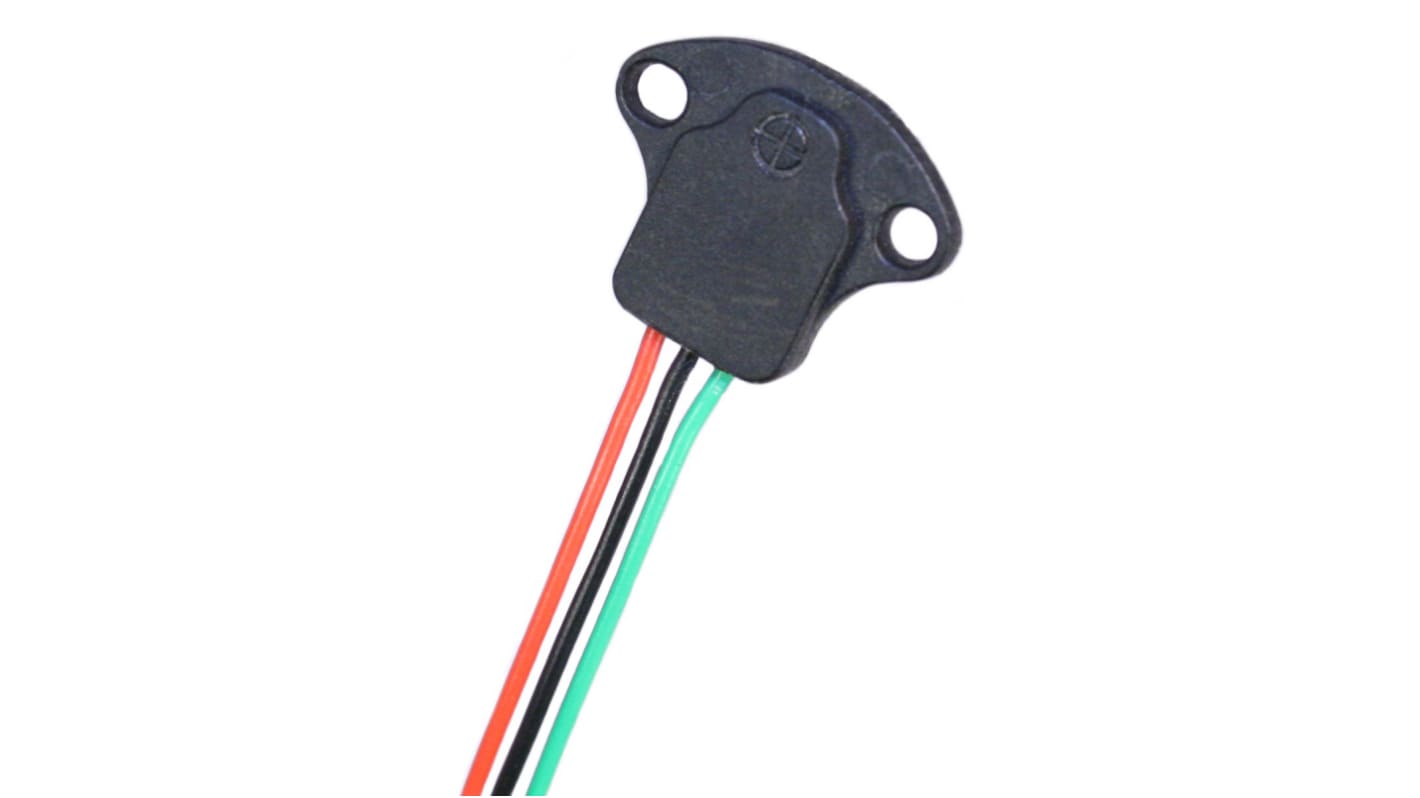

Assemtech Hall Effect Sensor, 3-Wire Open Collector Output, 4.5 → 24 V dc, Block Body, 24V
- RS 제품 번호:
- 866-2619
- 제조사 부품 번호:
- PGN-SP-001
- 제조업체:
- Assemtech
- RS 제품 번호:
- 866-2619
- 제조사 부품 번호:
- PGN-SP-001
- 제조업체:
- Assemtech
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항
Digital Hall Effect Proximity Sensors
Digital hall effect proximity sensors in low-profile flange-mount housing. They are suitable for different applications such as door positioning sensing, flow sensing and pedal switches.
Reverse battery protection
Latches in presence of south pole magnet
Unlatches in presence of north pole magnet
Meets IEC529 IPX5 for water protection
Capable of many different operations
Latches in presence of south pole magnet
Unlatches in presence of north pole magnet
Meets IEC529 IPX5 for water protection
Capable of many different operations
사양
속성 | 값 |
|---|---|
| Output Type | 3-Wire Open Collector |
| Body Style | Block |
| Supply Voltage | 4.5 → 24 V dc |
| Terminal Type | Wire Lead |
| Maximum DC Voltage | 24V |
| Switching Current | 5.2 mA |
| Length | 17.27mm |
| Width | 21.72mm |
| Depth | 3.3mm |
| Dimensions | 17.27 x 21.72 x 3.3 mm |
| Maximum Operating Temperature | +85°C |
| IP Rating | IPX5 |
| Minimum Operating Temperature | -40°C |
| Standards Met | IEC 529 |
