- RS 제품 번호:
- 173-0849
- 제조사 부품 번호:
- S7231-45R
- 제조업체:
- HARWIN
일시 품절-다음 입고 날짜는 30/07/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(10000개가 1릴안에)
₩184.564
수량 | 한팩당 | Per Reel* |
10000 - 40000 | ₩184.564 | ₩1,849,092.80 |
50000 + | ₩165.59 | ₩1,662,803.60 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 173-0849
- 제조사 부품 번호:
- S7231-45R
- 제조업체:
- HARWIN
제정법과 컴플라이언스
- COO (Country of Origin):
- KR
제품 세부 사항

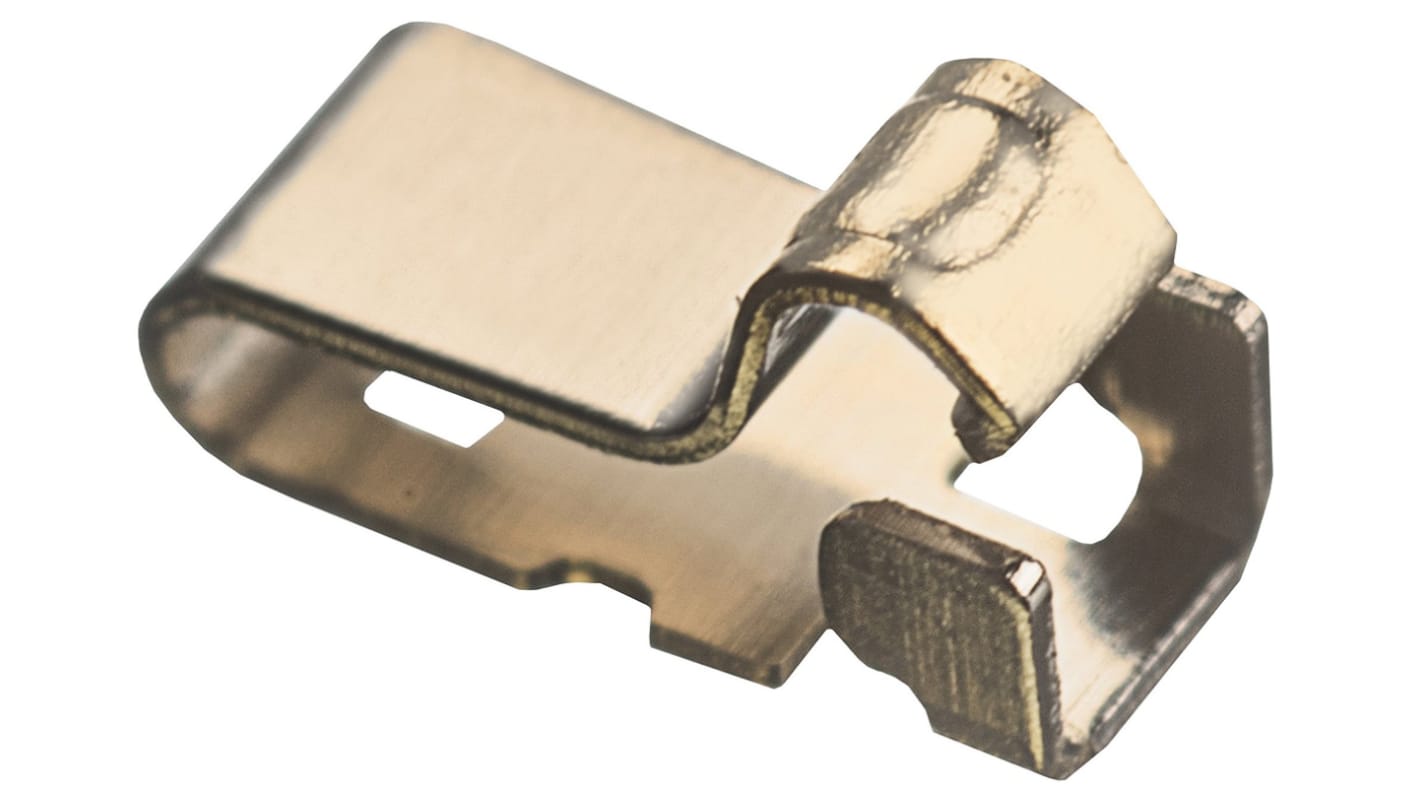

Harwin EZ Boardware SMT Antenna Spring Contacts
EZ-BoardWare SMT antenna ultra low profile extended beam miniature spring contacts ideal for antenna feed in mobile devices. These EZ-BoardWare antenna spring contacts include a protected tip to prevent hooking. A positive stop shoulder feature prevents over compression of the contact which could lead to a permanent set and a reduction in spring force. These EZ-BoardWare antenna spring contacts are suitable for both wiping and sliding actions and are ideal for automated requirements using standard placement equipment.
Features and Benefits
Ultra low profile
Protected tip to prevent hooking
Positive stop to prevent overcompression of contacts
Suitable for wiping and sliding applications
Designed for automated application using standard placement equipment
Available in a wide range working heights from 1.23 mm to 2 mm
Protected tip to prevent hooking
Positive stop to prevent overcompression of contacts
Suitable for wiping and sliding applications
Designed for automated application using standard placement equipment
Available in a wide range working heights from 1.23 mm to 2 mm
Applications
The ultra low profile design of these EZ-BoardWare antenna spring contacts makes them ideal for use in antenna feed in mobile devices such as smartphones. Can also be used in LED lamp connections or RFID tags
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Series | EZ-BoardWare |
Material | Titanium Copper Alloy |
Fixing Method | Surface Mount |
Current Rating | 1A |
Contact Resistance | 50mΩ |
Contact Plating | Gold |
Dimensions | 2.5 x 1 x 1.28mm |
Height | 1.28mm |
Length | 2.5mm |
Width | 1mm |
