RF Solutions GPS-310FS GPS Receiver
- RS 제품 번호:
- 704-3313
- 제조사 부품 번호:
- GPS-310FS
- 제조업체:
- RF Solutions
단종
- RS 제품 번호:
- 704-3313
- 제조사 부품 번호:
- GPS-310FS
- 제조업체:
- RF Solutions
제정법과 컴플라이언스
제품 세부 사항

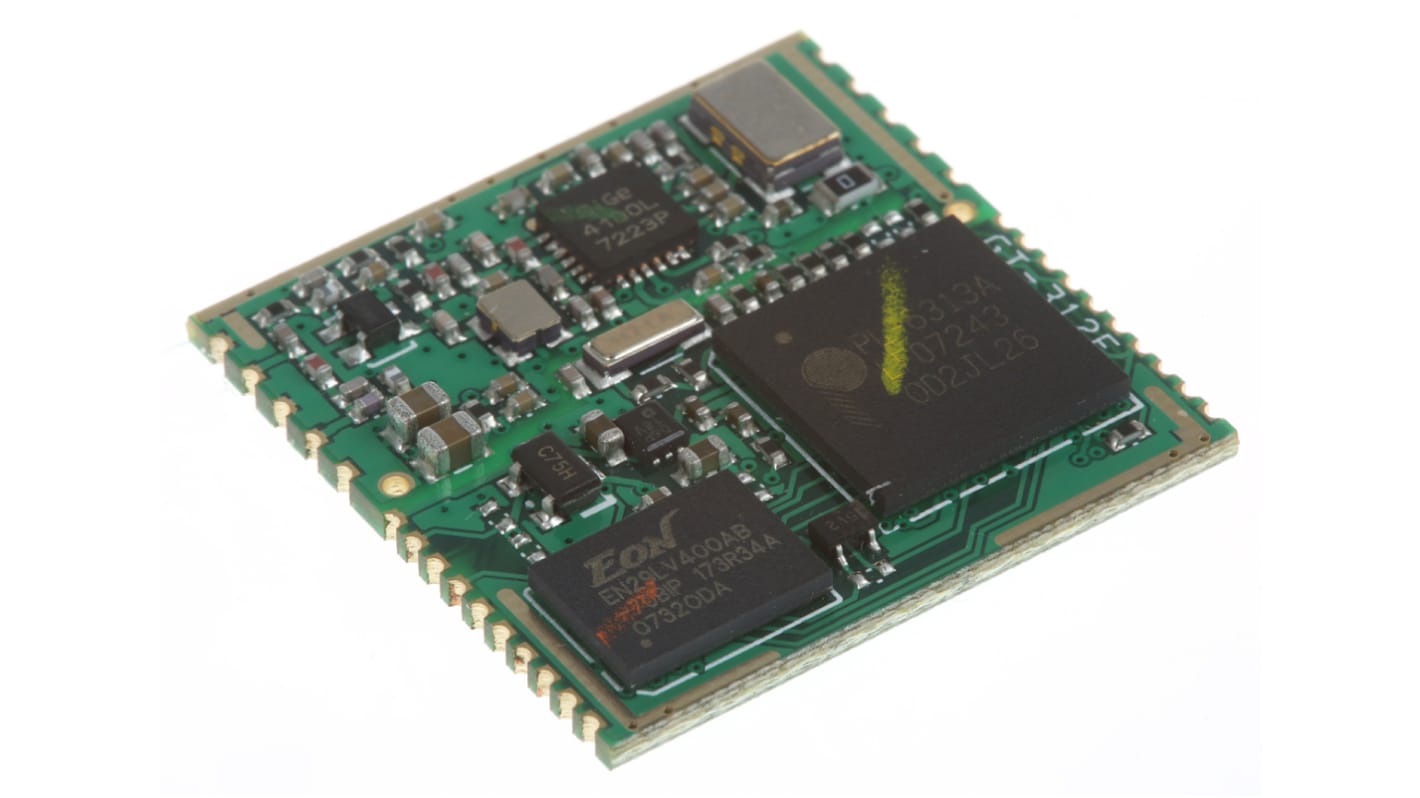

GPS-310FS 16-Channel GPS Receiver Module
The GPS-310FS is a small form factor GPS module intended for incorporation in a broad range of OEM products, where fast and easy system integration and minimal development risk is required.
Receiver type: 16 channel GPS L1 frequency, C/A Code
Open sky hot start: 5 sec
Open sky cold start: 60 sec
Tracking Sensitivity: -155dBm
SBAS (WAAS, EGNOS) support
Accuracy: 5m CEP
Update rate: 1Hz
Supports active and passive antennas
Velocity limit: 515m/s
Altitude limit: 18000m
Host communication: serial UART with NMEA-0183 protocol
Power supply: +3.0 to +3.6Vdc
Operating temperature range: -40 to +85°C
Dimensions: 25.4 x 25.4 x 2.8mm SMD
Applications: Automotive & Marine Navigation, Emergency Locator, Geographic Surveying, Personal Positioning, Sporting & Recreation
Open sky hot start: 5 sec
Open sky cold start: 60 sec
Tracking Sensitivity: -155dBm
SBAS (WAAS, EGNOS) support
Accuracy: 5m CEP
Update rate: 1Hz
Supports active and passive antennas
Velocity limit: 515m/s
Altitude limit: 18000m
Host communication: serial UART with NMEA-0183 protocol
Power supply: +3.0 to +3.6Vdc
Operating temperature range: -40 to +85°C
Dimensions: 25.4 x 25.4 x 2.8mm SMD
Applications: Automotive & Marine Navigation, Emergency Locator, Geographic Surveying, Personal Positioning, Sporting & Recreation
GPS (Global Positioning System) - RF Solutions
사양
속성 | 값 |
|---|---|
| Supported Bus Interfaces | GPIO, SBAS, UART |
| Number of Channels | 16 |
| Acquisition Sensitivity | -143dBm |
| Tracking Sensitivity | -155dBm |
| Dimensions | 25.4 x 25.4 x 3.4mm |
| Height | 3.4mm |
| Length | 25.4mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 25.4mm |
