- RS 제품 번호:
- 622-3265
- 제조사 부품 번호:
- HM8123
- 제조업체:
- Rohde & Schwarz
단종
- RS 제품 번호:
- 622-3265
- 제조사 부품 번호:
- HM8123
- 제조업체:
- Rohde & Schwarz
참조 문서
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- DE
제품 세부 사항

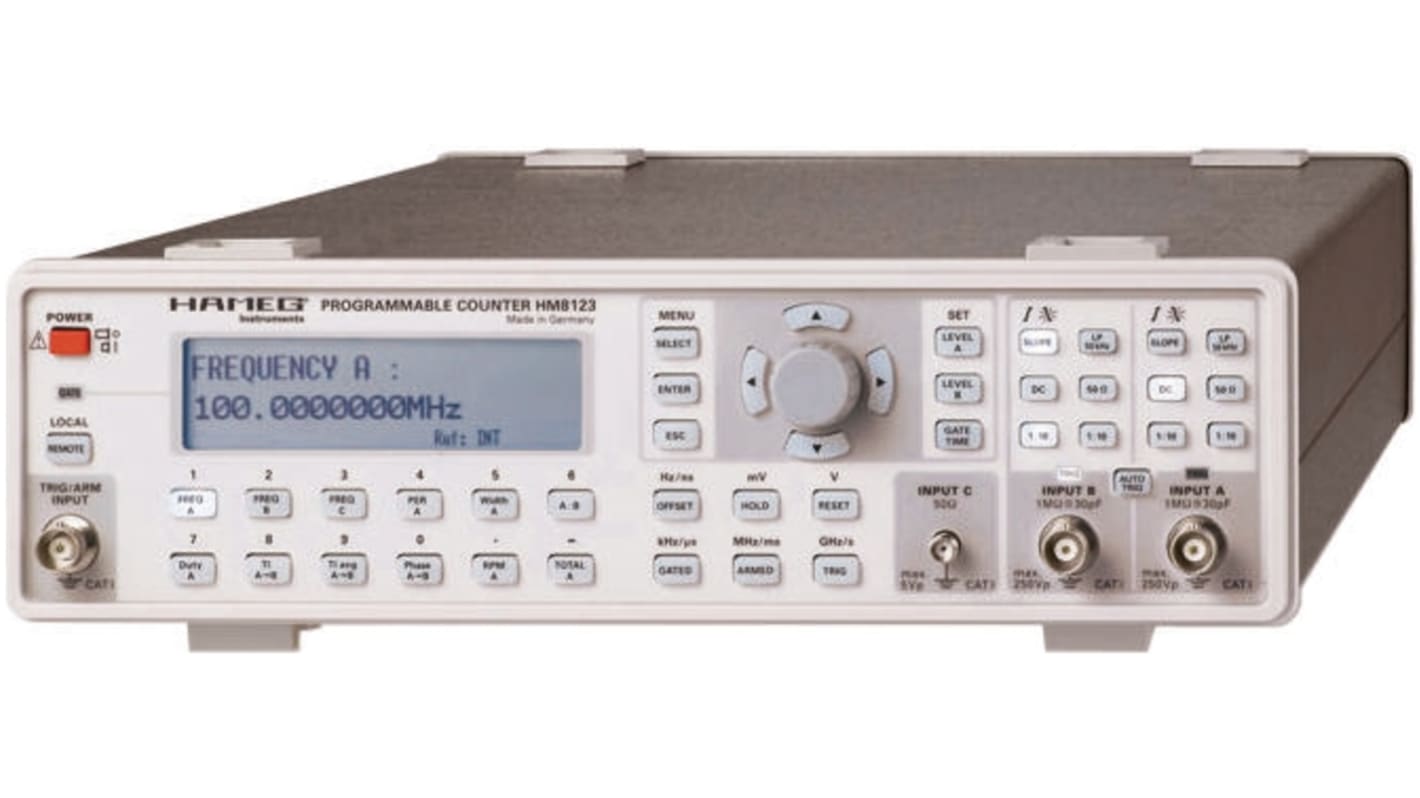

HM8123 universal counter
Frequency range from 0 Hz to 2.6 GHz
Two identical inputs up to 200 MHz
Nine measurement functions, external gate and arming
Input for external time base
RS232 interface
Two identical inputs up to 200 MHz
Nine measurement functions, external gate and arming
Input for external time base
RS232 interface
Supplied with
HM8123, power cable, instructions
사양
속성 | 값 |
---|---|
Maximum Frequency | 3GHz |
Minimum Frequency | 0 Hz |
Resolution | 10 Digit |
Pulse Width Resolution | 5ns |
Attenuation | 1:1, 1:10, 1:100 |
Maximum Input Voltage | 250 V, 5 V |
Input Impedance | 1 MΩ, 50 Ω |
Connector Type | BNC, SMA |
Dimensions | 365 x 285 x 75mm |
Maximum Operating Temperature | +40°C |
Width | 285mm |
Length | 365mm |
Minimum Operating Temperature | +5°C |
Height | 75mm |
Weight | 4kg |
Model Number p | HM8123 |
