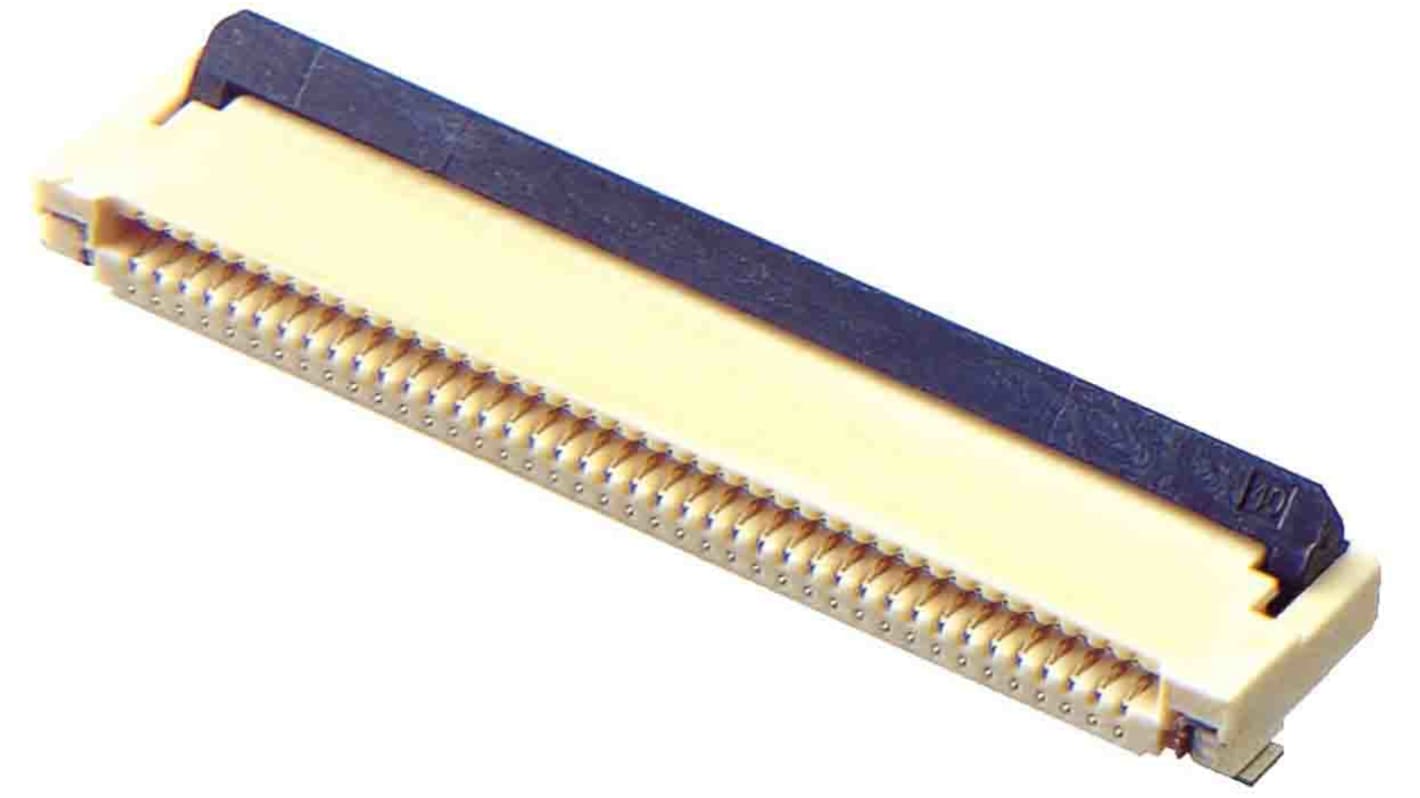

Omron, XF2M, XF2M 0.5mm Pitch 55 Way Right Angle Female FPC Connector, Top and Bottom Contact
- RS 제품 번호:
- 201-8215
- 제조사 부품 번호:
- XF2M-5515-1AH-R100
- 제조업체:
- Omron
일시 품절-다음 입고 날짜는 19/12/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩31,843.379
| 수량 | 한팩당 |
| 1 - 24 | ₩31,843.379 |
| 25 - 49 | ₩31,141.345 |
| 50 + | ₩30,473.808 |
- RS 제품 번호:
- 201-8215
- 제조사 부품 번호:
- XF2M-5515-1AH-R100
- 제조업체:
- Omron
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
The Omron XF2M rotary backlock connector has 0.5mm pitch. It is made from LCP resin and applicable FPC/FFC thickness of 0.3 mm. The product has power rating of 0.5 A and 50V AC/DC. The ambient operating temperature ranges between -30°C and 85°C. It has 250V AC dielectric strength.
High-Reliability
Superior Work Efficiency
Dual-sided contact reduces the number of parts
Halogen Free
Superior Work Efficiency
Dual-sided contact reduces the number of parts
Halogen Free
사양
속성 | 값 |
|---|---|
| Number of Contacts | 55 |
| Pitch | 0.5mm |
| Mounting Type | PCB Mount |
| Gender | Female |
| Termination Type | Top and Bottom Contact |
| Body Orientation | Right Angle |
| Series | XF2M |
| Series Number | XF2M |
