Burkert Compact Mount Flow Controller, 2 → 1200 L/min, PNP Output, 12 → 30 V dc, DN 15 → 100 mm
- RS 제품 번호:
- 370-4963
- 제조사 부품 번호:
- 436473
- 제조업체:
- Burkert
- RS 제품 번호:
- 370-4963
- 제조사 부품 번호:
- 436473
- 제조업체:
- Burkert
제정법과 컴플라이언스
제품 세부 사항

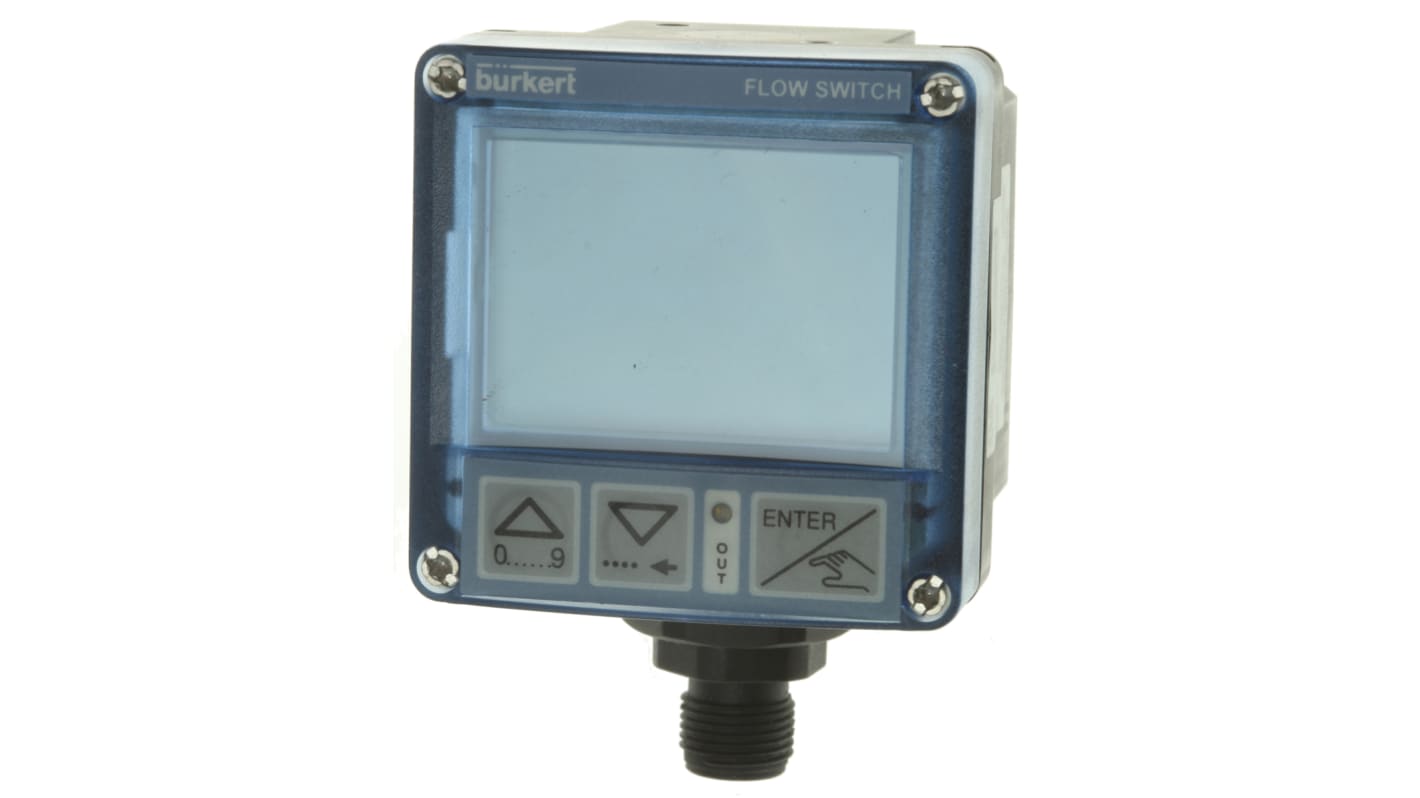

SE32 Flow Switch
Suitable for flow measurement & ON/OFF control applications with process fluids, pump protection, cooling/heating circuits and lubrication
Interfaces via S030 pipework flow adaptor (see stock no. 249-7513 typically)
Large LCD display of flow rate with bargraph
Simulation function, LED status indication
Multi-language , menu-driven setup
No contact between fluids and switch
Reverse polarity and short circuit protected
M12 5-pin connection or M12 & DIN plug
Interfaces via S030 pipework flow adaptor (see stock no. 249-7513 typically)
Large LCD display of flow rate with bargraph
Simulation function, LED status indication
Multi-language , menu-driven setup
No contact between fluids and switch
Reverse polarity and short circuit protected
M12 5-pin connection or M12 & DIN plug
사양
속성 | 값 |
|---|---|
| Maximum Flow Rate | 2 → 1200 L/min |
| Electrical Connection | Swivel 5-Pin M12 Plug |
| Control Output | PNP |
| Mounting Style | Compact |
| Supply Voltage | 12 → 30 V dc |
| Display Screen | LCD |
| Pipe Diameter Range | DN 15 → 100 mm |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +60°C |
